Installation SiE33-102
48 General Information

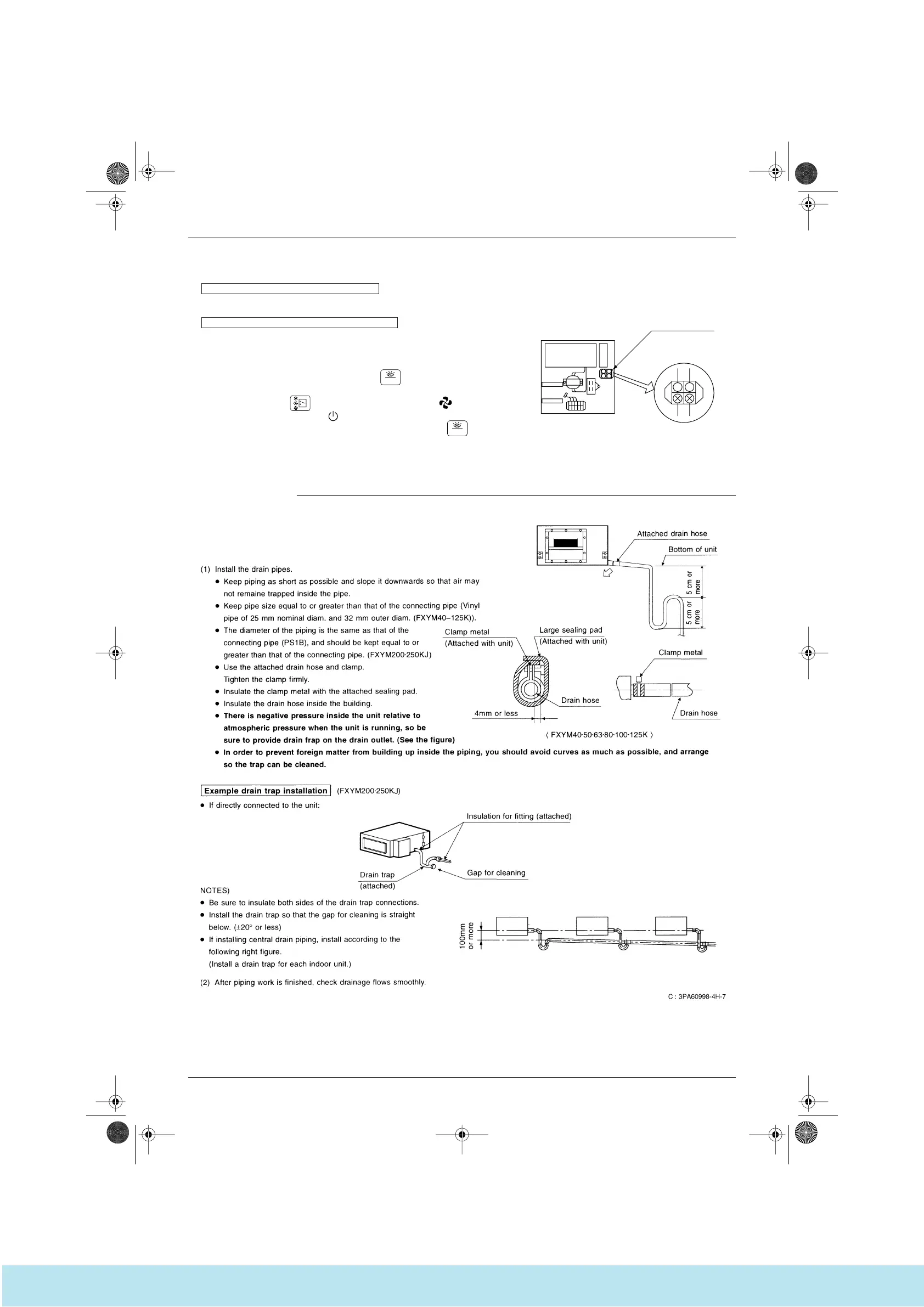

FXYM-Concealed ceiling unit (large)
WHEN ELECTRIC WIRING WORK IS FINISHED
•
Check drainage flow during COOL running, explained under “TEST OPERATION”.
WHEN ELECTRIC WIRING WORK IS NOT FINISHED
•
Remove the electric parts box lid, connect a power supply and remote
control to the terminals.
Next, press the inspection/test operation button “
TEST
” on the remote
control. The unit will engage the test operation mode. Press the operation
mode selector button “ ” until selecting FAN OPERATION “ ”.
Then, press the ON/OFF button “
”. The indoor unit fan and drain pump
will start up. Check that the water has drained from the unit. Press “
TEST
”
to go back to the first mode.
L N
X Y
NL
Terminal board
220V – 240V single
phase power supply.
Switch box
Indoor PC
board
3PA60998-15S-7
