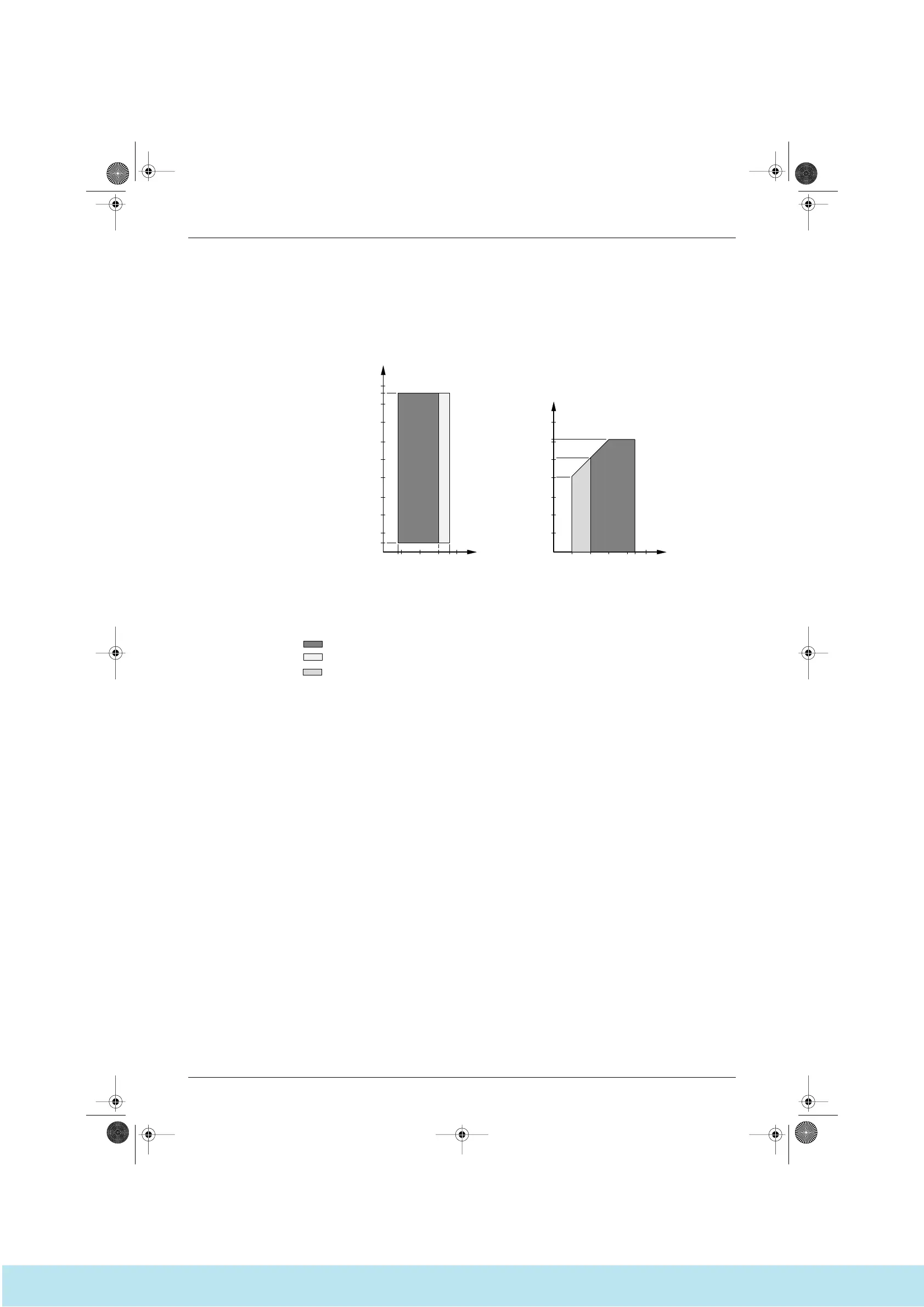

1.4 Standard Operation Limit
The figures below assume following operating conditions for indoor and outdoor units:
Equivalent pipe length....................................................................................5m
Level difference..............................................................................................0m
Cooling Heating
A Outdoor temperature (˚CDB)
B Indoor temperature (˚CWB)
C Outdoor temperature (˚CWB)
D Indoor temperature (˚CDB)
Range for continuous operation
Range for pull down operation
Range for warming up operation
−15
−10
−5
0
5
10
15
15.5
20
10 15 20 25 30
D
C
−10
−5
0
10
15
20
25
30
35
40
45
1514
10
20 25 27
2730 B
43
A
5
(V0888)
