Refrigerant Piping SiE33-102
144 Installation Manual
3. Bottom Connection

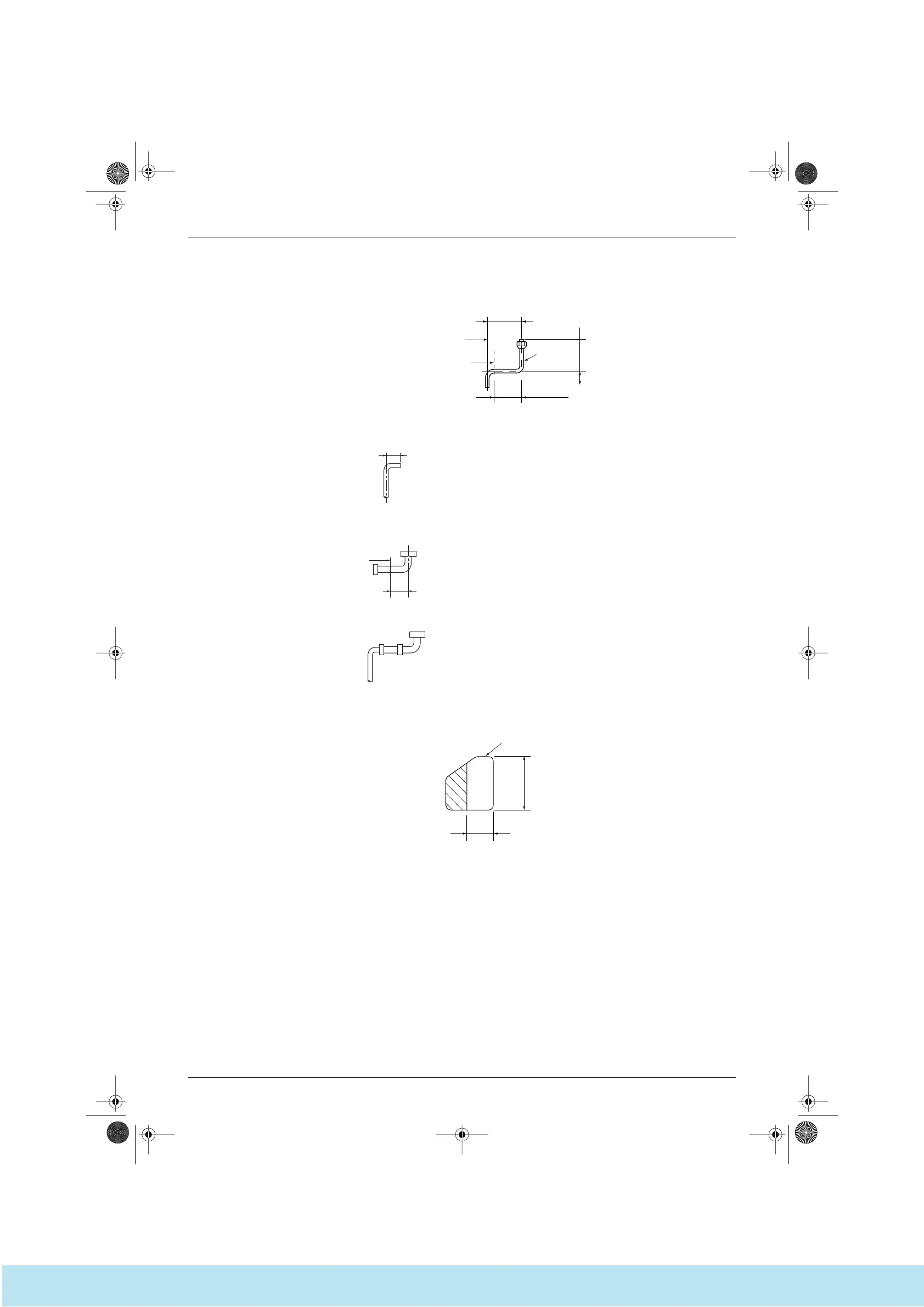

Piping kit “KHF30A30U” is required for RSXY24,26,28 and 30.
For RSXY16,18 and 24, bend the liquid side pipe as below and connect it to the stop valve.
RSXY16,18,20
Bend the gas side pipe as below.
Connect with attached pipes.
1. Cut the attached pipe
2. Connect attached pipes and field pipe
RSXY24,26,28,30
The diagram at right shows the opening on the underside for connecting the bottom. Note that piping
connected with elbow-pipes (procured locally) cannot pass through the opening.
1. Cutting position
±175mm
±115mm
±160mm
Cutting position
in case of using
elbow
Bending
position
Liquid side
(V1842)
84mm
(V0899)
80mm
1
(V0900)
(V0901)
Knock out hole
Aprx. 54mm
Aprx. 110mm
(V1843)
