Xtium2-CLHS PX8 User's Manual Appendix B: Troubleshooting Problems • 101
Diagnostic Tool Main Window

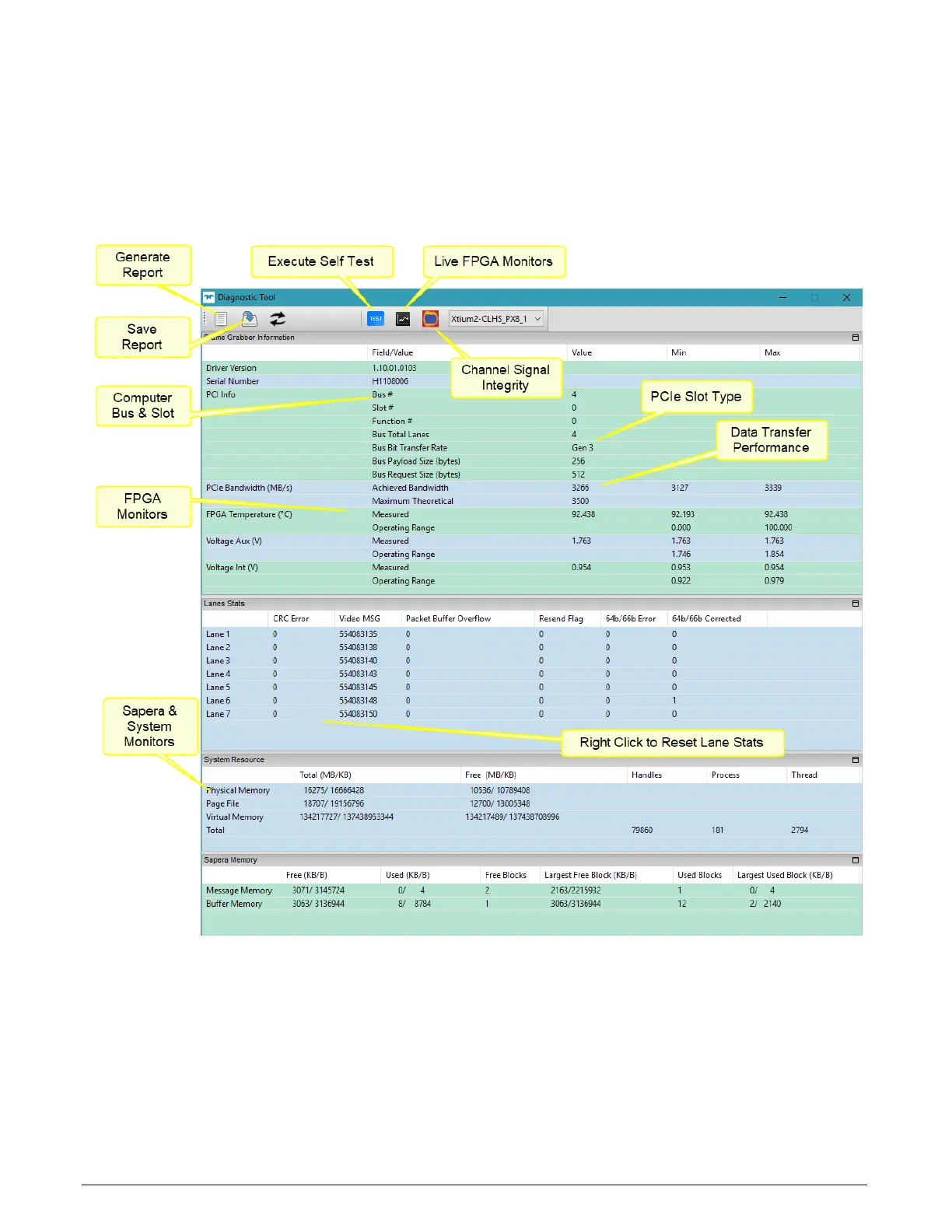

The main window provides a comprehensive view of the installed Xtium2 board. Toolbar buttons
execute the board self-test function and open a FPGA live status window.
Important parameters include the PCI Express bus transfer supported by the host computer and
the internal Xtium2 FPGA temperature. The bus transfer defines the maximum data rate possible in
the computer, while an excessive FPGA temperature may explain erratic acquisitions due to poor
computer ventilation.
