Connector and Switch Locations

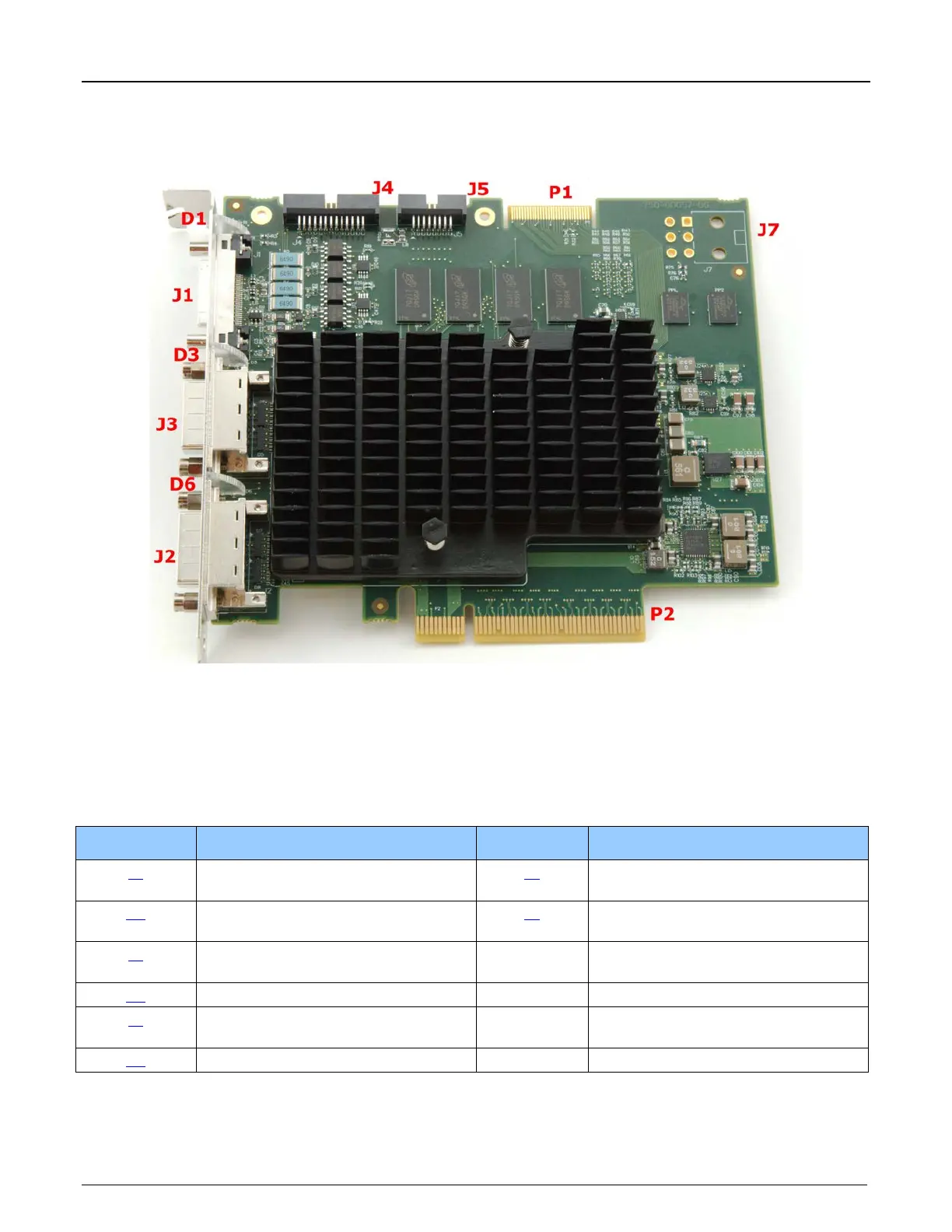

Xtium2-CLHS PX8 Board Layout Drawing
Figure 19: Board Layout
Connector / LED Description List
The following table lists components on the Xtium2-CLHS PX8 board. Detailed information
concerning the connectors/LEDs follows this summary table.
Location Description Location Description
J1 External I/O Signals connector
(DH60-27P)
J4 Internal I/O Signals connector
(26-pin SHF-113-01-L-D-RA)
D1
Boot-up/PCIe Status LED
(refer to text)
J5
Multi Board Sync
J3 Camera Link HS Input Connector P2
PCIe x8 computer bus connector
(Gen3 compliant slot preferred)
D3 Camera Link HS Input status LED P1 Reserved
J2 Camera Link HS Output Connector
(used for Data Forwarding)
D6 Data Forwarding Output status LED
