Xtium2-CLHS PX8 User's Manual Technical Specifications • 93

Board Sync Cable Assembly OR-YXCC-BSYNC40

This cable connects 3 to 4 Xtium2 boards for the board sync function as described in section J5:

Multi-Board Sync / Bi-directional General I/Os. For a shorter 2 board cable, order cable assembly

OR-YXCC-BSYNC20.

For a third part source of cables, see http://cloud.samtec.com/catalog_english/FFSD.PDF.

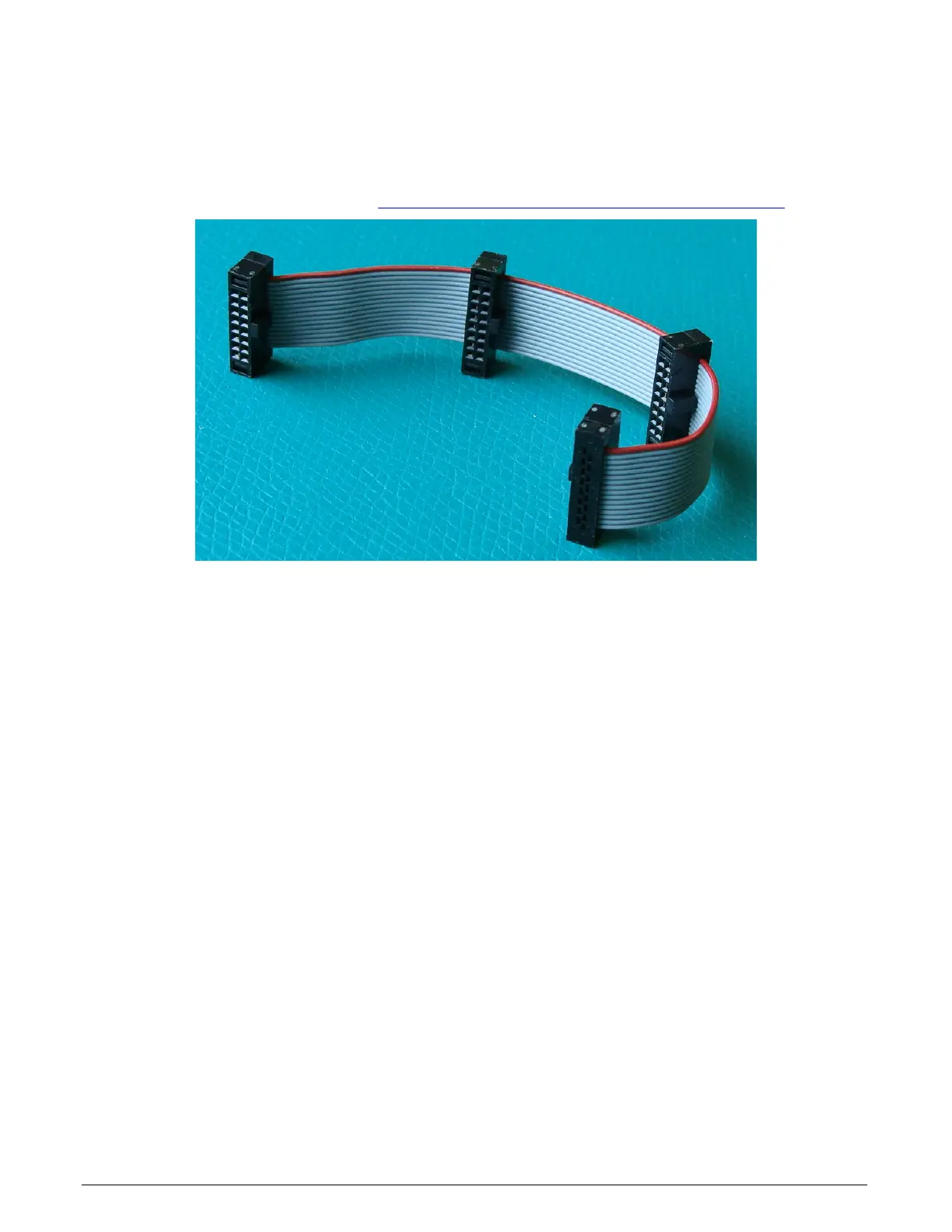

Figure 34: Photo of cable OR-YXCC-BSYNC40
