Xtium2-CLHS PX8 User's Manual Installing Xtium2-CLHS PX8 • 21

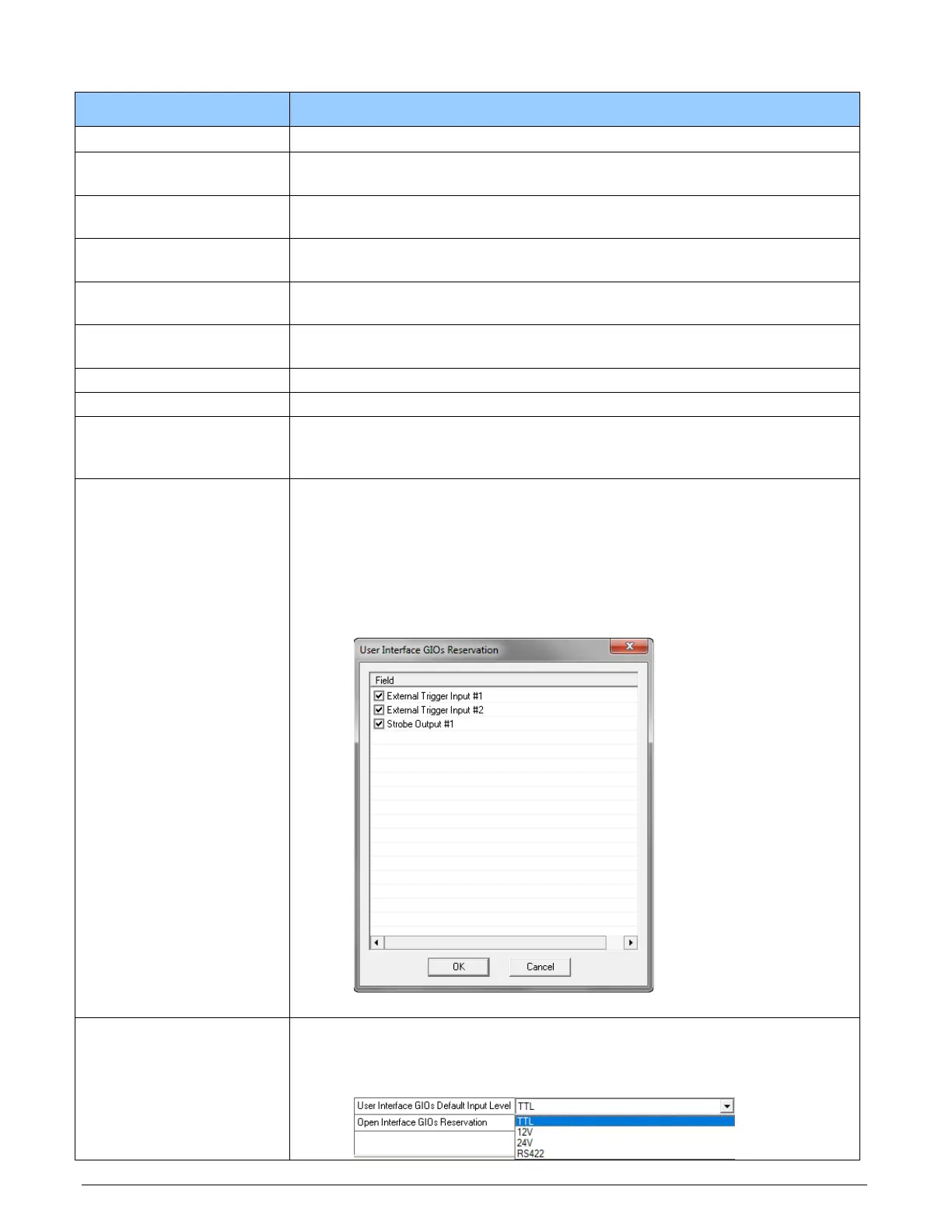

Information Field Description
Field Description
Serial Number [Read-Only]: Serial Number of the board.
Hardware ID [Read-Only]: Identifies hardware changes that affect the operation of
the board. Currently there are no such changes.
Hardware Configuration [Read-Only]: States the presence or absence of optional components.
Currently there are no optional components available.
ECO Number [Read-Only]: Indicates the last Engineering Change Order (ECO)
applied to the board.
Video Lanes [Read-Only]: Indicates the maximum number of video lanes
supported by the board. For this board, the value is 7.
User Interface Outputs [Read-Only]: Number of available user interface outputs on the
board. For this board, the value is 8.
P/N
[Read-Only]: Indicates the part number of the board.
P/N Revision
[Read-Only]: Indicates the revision of the part number.
User Data [Read/Write]: This is a 64 byte general purpose user storage area.
For information on how to read/write this field at the application level,
contact Teledyne DALSA Technical Support.
User Interface GIOs
Reservation
[Read/Write]: Use this field to reserve User Interface GIOs for use by
the acquisition module. By default, boards are shipped with User
Interface General Inputs 1 & 2 reserved for External Triggers and
User Interface General Output 1 reserved for Strobe Output.
Click on the ‘Value’ field to open the dialog box show below. Disable
any GIO reservations that are not required. Click the OK button to
update the value field.
User Interface GIOs
Default Input Level
[Read/Write]: Use this field to select the default input level of the
User Interface GIOs.
Click on the ‘Value’ field to select the input signal level detection
required.
