Block Diagram: Connecting External Receivers to the General Outputs
J1: External Signals Connector
(DH60-27P)
To External Devices Xtium-CLHS PX8
1
Vcc
Compatible
Receiver
User Signal Ground
Reserved
26
27
:
:
25 :
24 :
23 :
General Output 422 :
General Output 321 :
19
20
:
:
18 :
17 :
General Input 4 (+)16 :
General Input 3 (+)15 :
Power Output (12 Volts)14 :
Ground13 :
General Output 212 :
General Output 1 / Strobe11 :
Ground10 :
General Input 2 / Trigger 2 (+)9 :
General Input 1 / Trigger 1 (+)8 :
7 :
Shaft Encoder B (+)6 :
Shaft Encoder B (-)5 :
Ground4 :
Shaft Encoder A (+)3 :
Shaft Encoder A (-)2 :
Ground1 :
General Input 1 / Trigger 1 (-)
General Input
4 (-)
General Input 3 (-)
Power Output (5 Volts)
General Input 2 / Trigger 2 (-)
General Output 5
General Output 6
General Output 7
General Output 8
2
Vcc
Compatible
Receiver
3
Vcc
Compatible
Receiver
4
Vcc
Compatible
Receiver
5
Vcc
Compatible
Receiver
6
Vcc
Compatible
Receiver
7
Vcc
Compatible
Receiver
8
Vcc
Compatible
Receiver

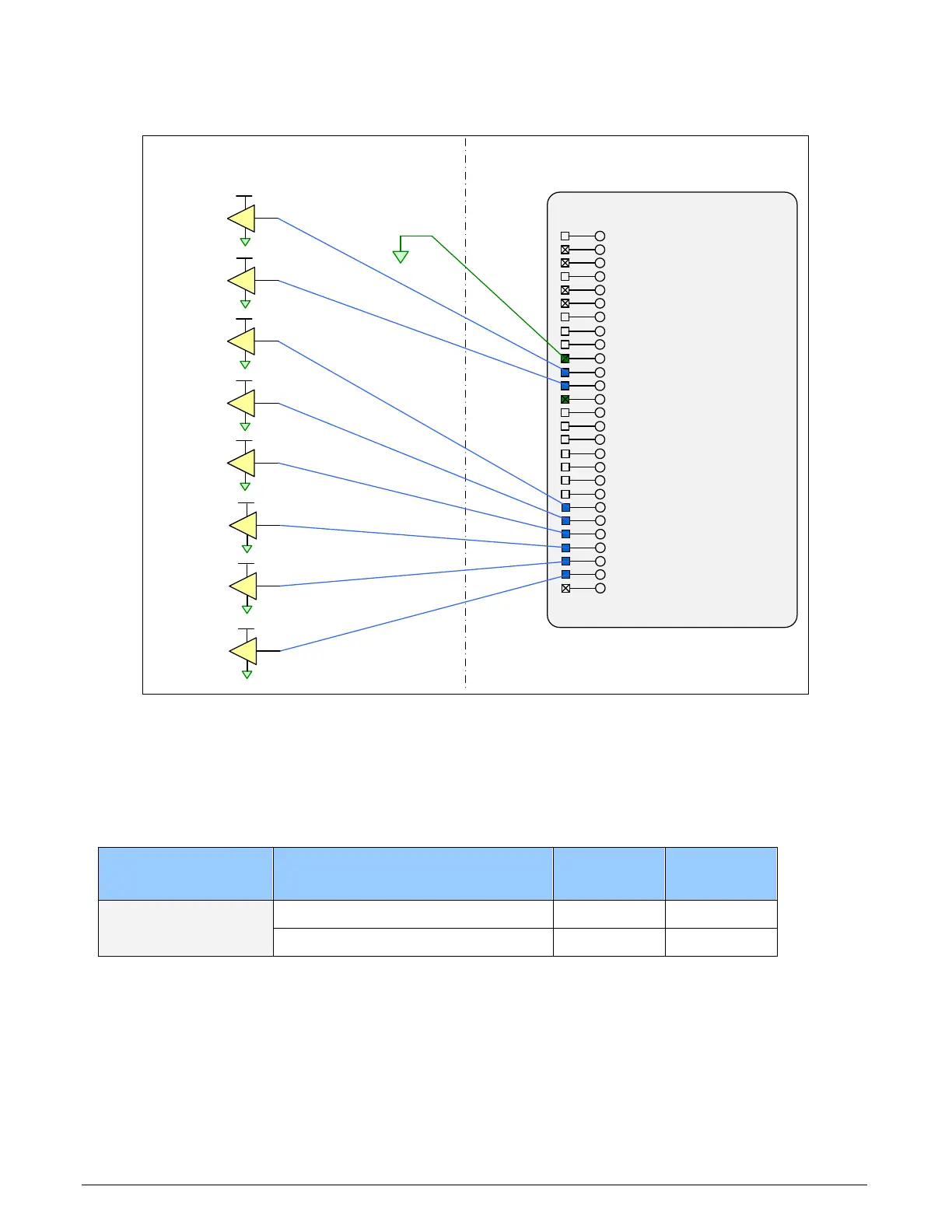

Figure 27:Output Signals Connection Diagram
External Receiver Electrical Requirements
 Xtium2 General Outputs are standard TTL logic levels.
 External receiver circuits must be compatible to TTL signals.
Xtium2 PX8
Output Level
Description MIN MAX
TTL
Output Voltage High (V
H
)
2.0 V –
Output Voltage Low (V
L
)
– 0.8 V
