Xtium2-CLHS PX8 User's Manual Technical Specifications • 87
J5: Multi-Board Sync / Bi-directional General I/Os
There are 8 bi-directional General I/Os that can be interconnected between multiple boards. These
bi-directional I/Os can be read/written by Sapera application. Bi-directional General I/Os no.1 and
no.2 also can also act as the multi-board sync I/Os.
The multi-board sync feature permits interconnecting multiple Xtium2 boards to synchronize
acquisitions to one or two triggers or events. The trigger source origin can be either an external
signal or a software control signal. The board sending the trigger(s) is the “Sync Master” board,
while the one or more boards receiving the control signal(s) are “Sync Slaves”.
Setup of the boards is done either by setting parameters via a Sapera application or by using
CamExpert to configure two camera files (.ccf). For testing purposes, two instances of CamExpert
(one for each board) can be run on the system where the frame grabbers are installed.
Hardware Preparation
Interconnect two, three, or four Xtium2 boards via their J5 connector using the OR-YXCC-
BSYNC20 cable (for 2 boards) or the OR-YXCC-BSYNC40 cable (see Board Sync Cable Assembly
OR-YXCC-BSYNC40 for 3 or 4 boards).
Configuration via Sapera Application Programming
Sync Master Board Software Setup: Choose one Xtium2 as “Sync Master”.
The Sapera parameter CORACQ_PRM_BOARD_SYNC_OUTPUT1_SOURCE and/or
CORACQ_PRM_BOARD_SYNC_OUTPUT2_SOURCE select the signal(s) to send to the “Sync
Slave” boards.
Other sync master board parameters are set as for any external trigger application, such as
External Trigger enable, detection, and level. See Sapera documentation for more details.
Sync Slave Board Software Setup: The Sapera paramete
r
CO
RACQ_PRM_EXT_TRIGGER_SOURCE and/or CORACQ_PRM_EXT_LINE_TRIGGER_SOURCE
are set to Board Sync #1 or #2.
Configuration via Sapera CamExpert

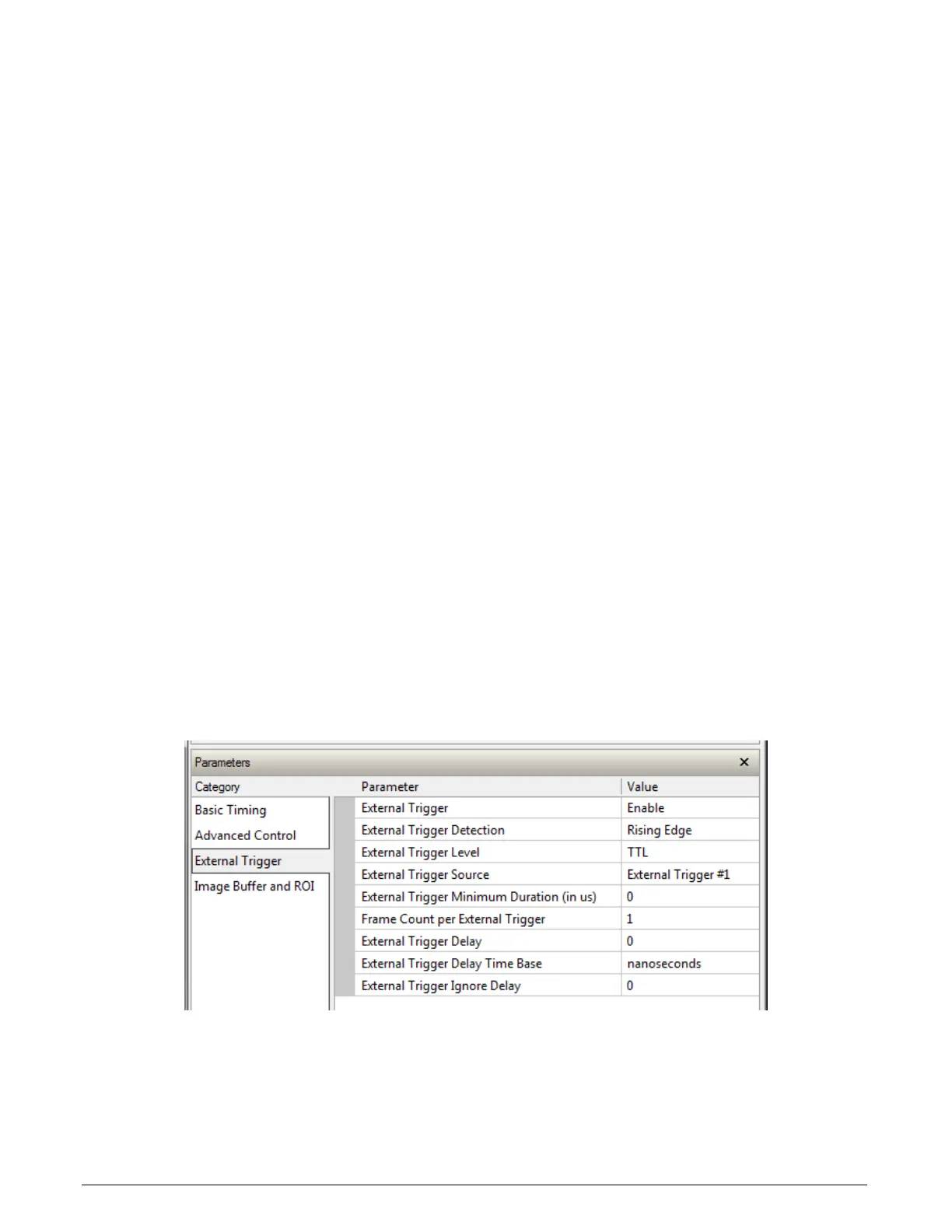

Start the first instance of CamExpert and select one installed Xtium2 board to be the sync
master. As shown in the following image, this board is configured to use an external trigger on
input #1.
T
he Sync Master Xtium2 board is also configured to output the external trigger on board
sync #1, as shown in the following image.
