88 • Technical Specifications Xtium2-CLHS PX8 User's Manual

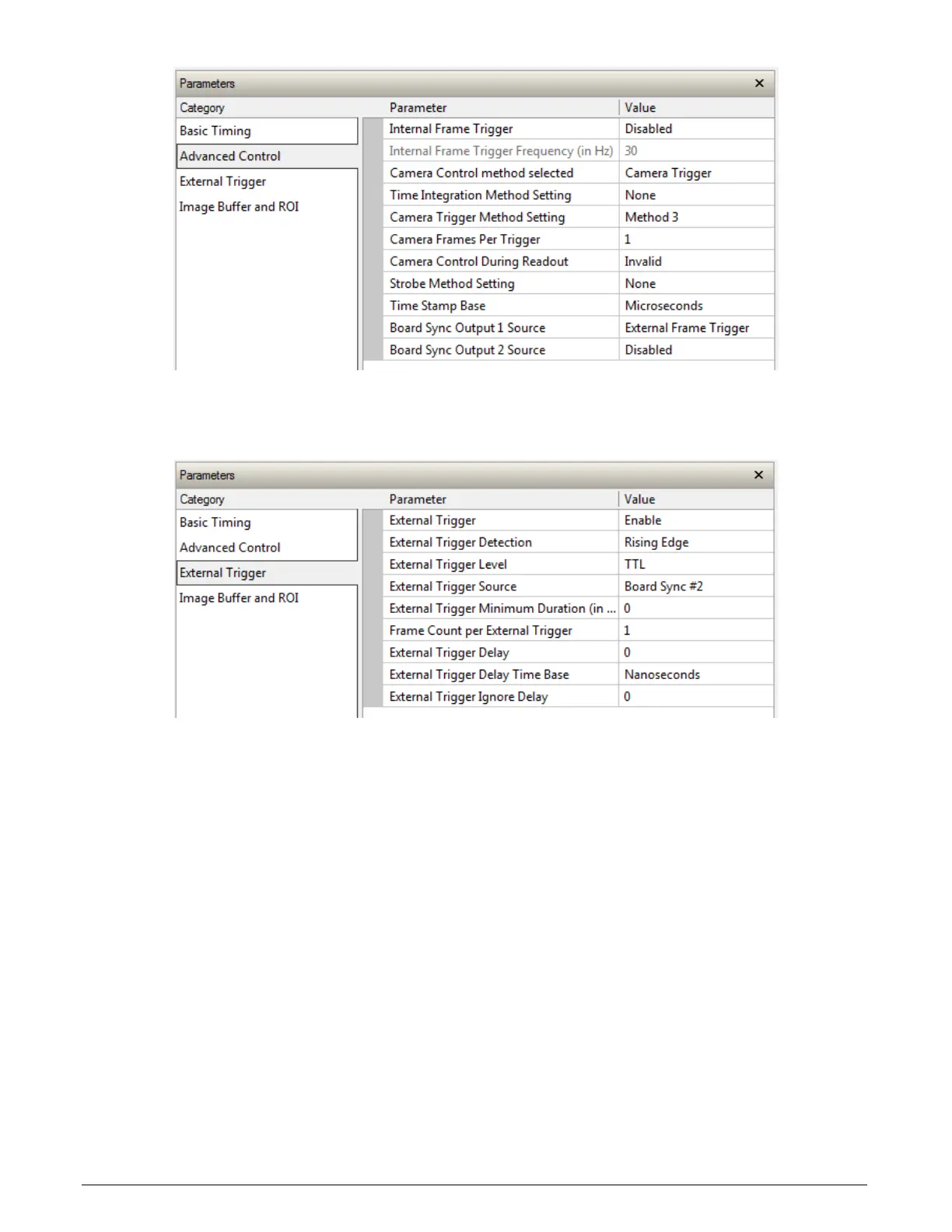

The Sync Slave Xtium2 board is configured to receive its trigger on the board sync signal. As
an example the following image shows the Xtium2 board configured for an external sync on
board sync #2.
T
est Setup: Start the acquisition on all slave boards. The acquisition process is now waiting for
the control signal from the master board. Trigger master board acquisition and the acquisition
start signal is sent to each slave board.
