106 AK2-SC 255 Reference Manual RS.8D.M1.22

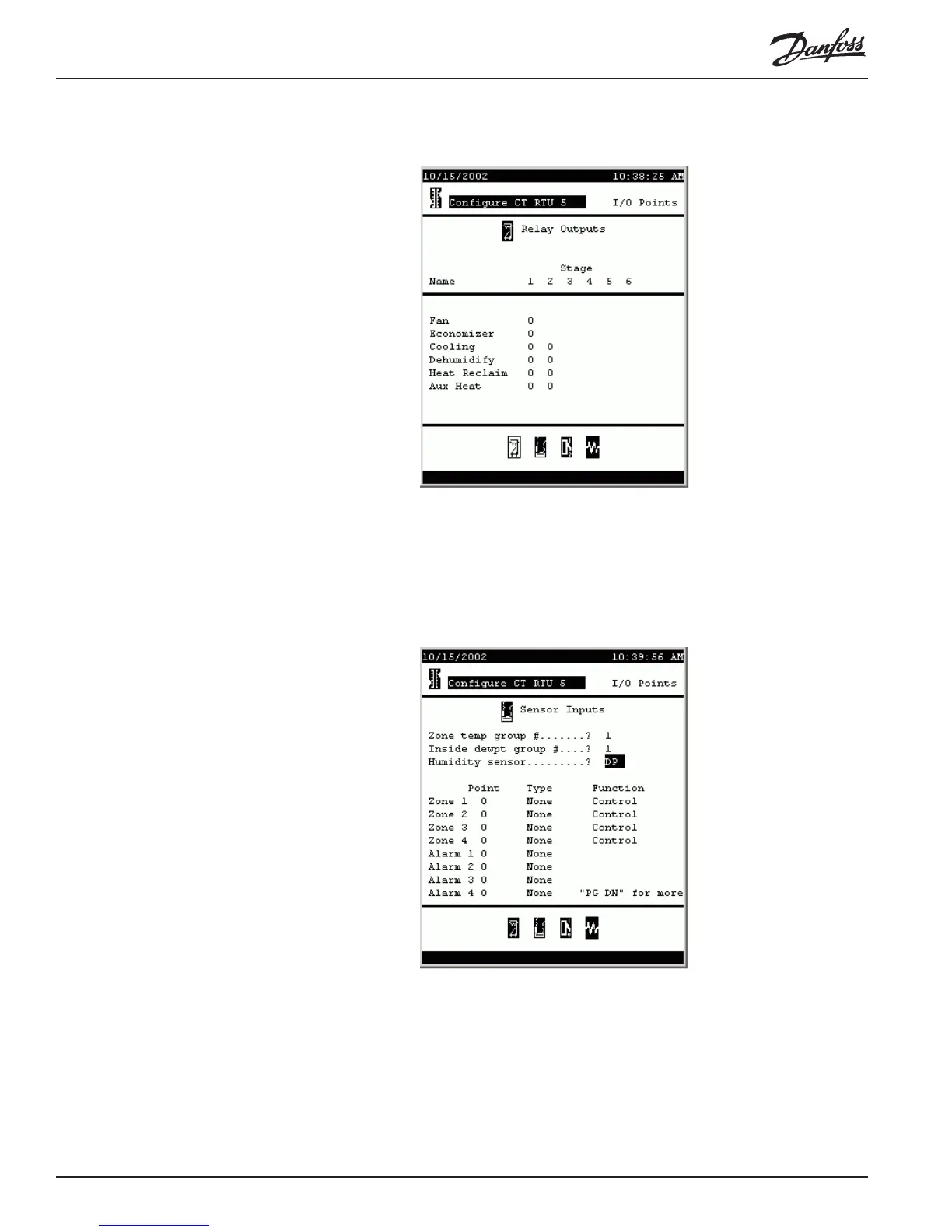

ClimaTECH
relay outputs
A ClimaTECH 65 can have up to six analog (sensor) inputs, up to six digital (on-off)
inputs, and up to five relay outputs. For a ClimaTECH 1024, these capacities are
increased to 10, 10, and 24 respectively. It is the purpose of the I/O Points screens to
allocate these. An input or output number, from 1 up to the limit of the controller, is
entered under the stage number in the case of relay outputs.
ClimaTECH
sensor inputs
Zone temp group #
(0 to 99) The group to which this ClimaTECH unit belongs for
zone temperature. Several ClimaTECH units in a network can be
controlled by a single sensor wired to one of them. If this feature
is not used, leave group number set to 0.
Inside dewpt group #
(0 to 99) The group to which this ClimaTECH unit belongs for
