dewpoint. Several ClimaTECH units in a network can use a
single sensor wired to one of them. If this feature is not used,
leave group number set to 0.
Humidity sensor (0.0 to 150.0) The heat reclaim setpoint during store
closed hours as configured in the Store Info screen.
Humidity sensor (List box: RH, DP) Whether a relative humidity or
dewpoint sensor is used.
Point The sensor wired to each point. If the sensor is not
used, leave the Point field set to 0.
Type (List box:) The type of input.
None
TP2
TP1
OI The input is an on-off input.
0-10 Volts This type can be used for any sensor
whose output is linear from 0-10 Volts.
Function (List box: Control, Monitor) For zone sensors only,
whether the point is being used for control or purely for
monitoring.
ClimaTECH
on-off input
configuration

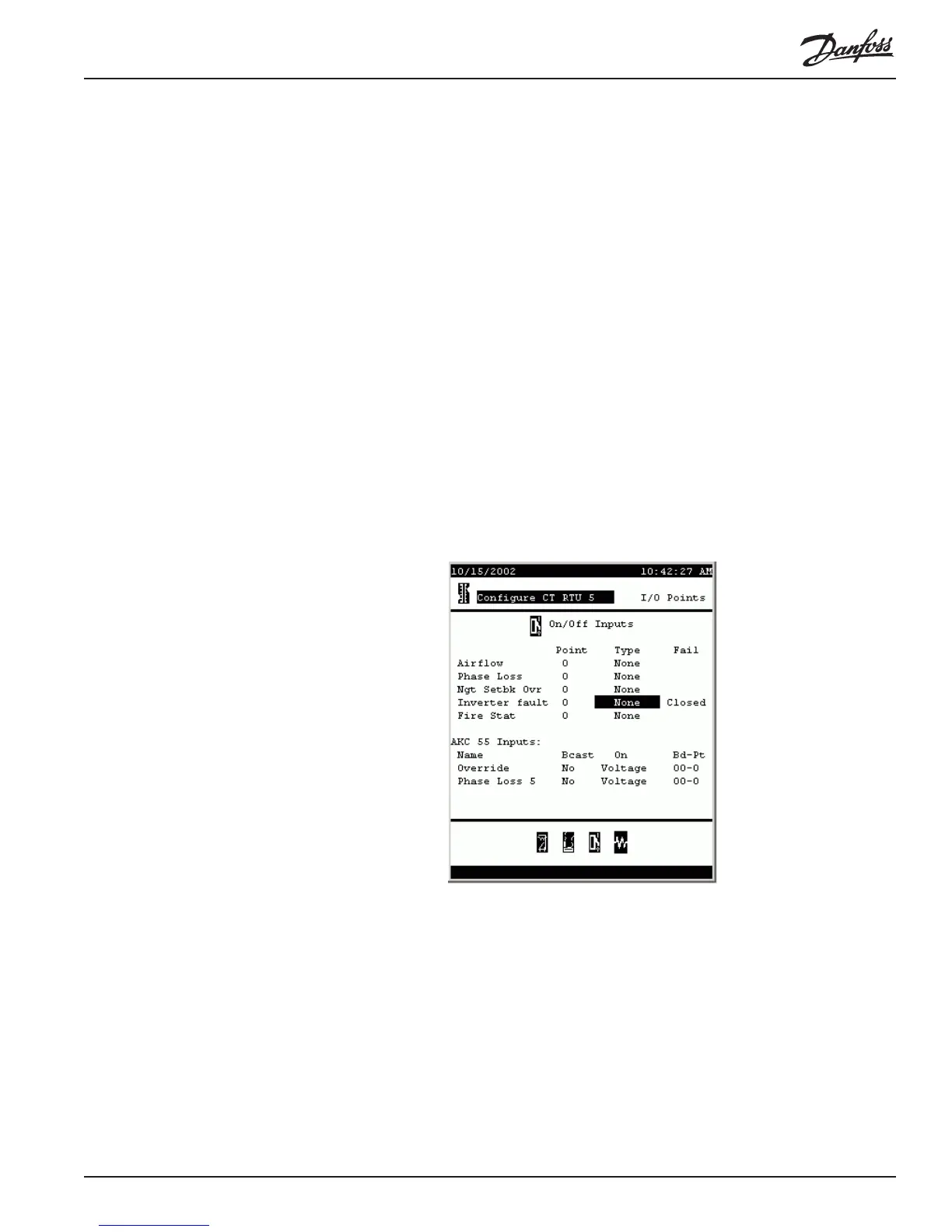

The third icon from the left at the bottom of any ClimaTECH board & points screen
brings up configuration for on-off inputs. At the top of the screen are inputs that may
be wired to the ClimaTECH unit itself, and in the lower half are pertinent inputs wired
to to an SC 255.
Point The point assigned to each functional input. If the input
is not used, leave the Point field set to 0.
Type (List box:) The type of input. Only OI is a valid
choice.
None
TP2
TP1
