RS.8D.M1.22 AK2-SC 255 Reference Manual 115

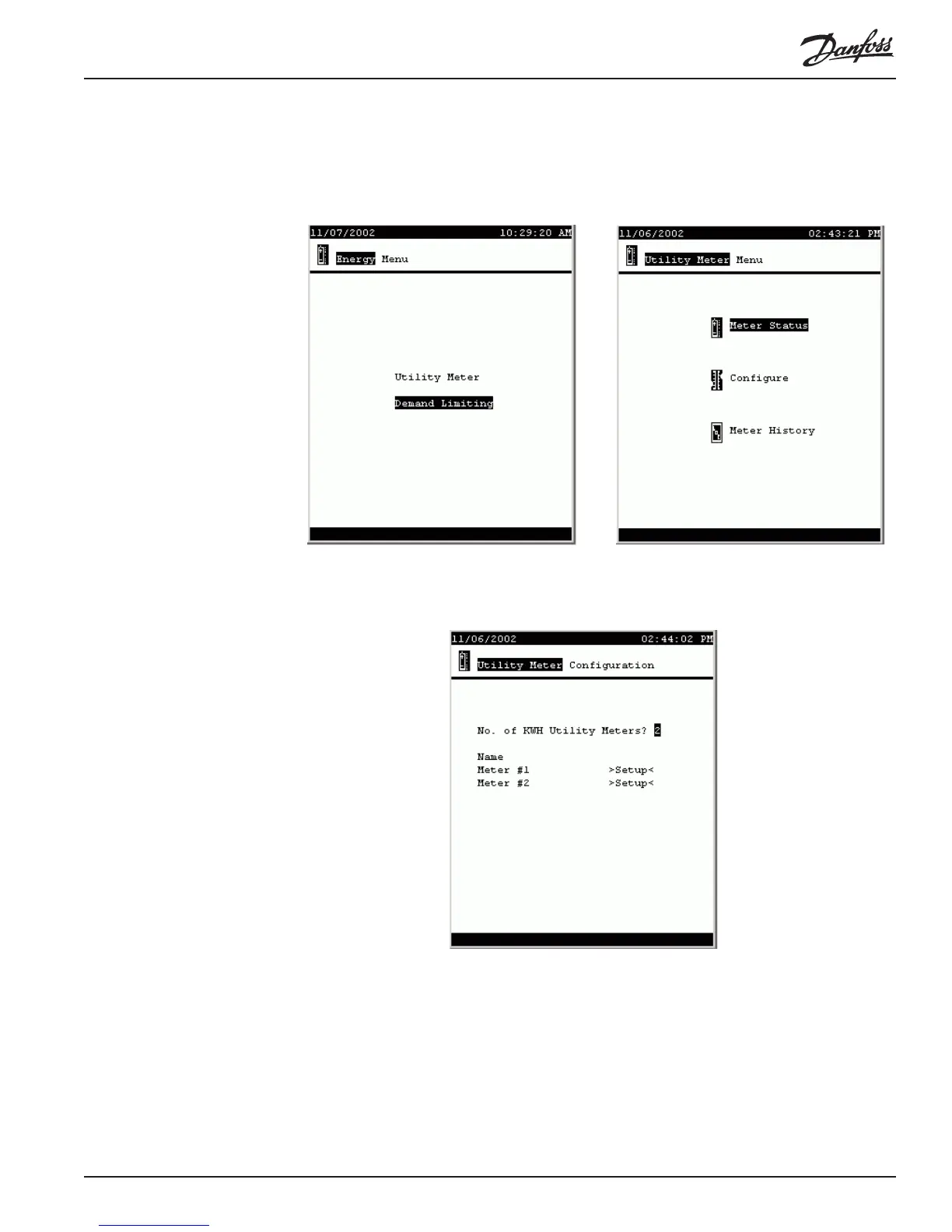

Configuration To begin configuration of utility meters, select Energy from the main menu and press
ENTER. The Energy Menu appears as at left below. Select Utility Meter and press
ENTER, and the Utility Meter Menu appears as at right below.
Continuing, select Configure from the Utility Meter Menu and press ENTER. Now
the Utility Meter Configuration menu appears as shown below.
Enter the number of meters to be configured, and a list will appear. These are the
fields:
No of KWH Utility Meters (0 to 16) The number of meters being configured
Name (Label field, any 11 characters) Enter the name of the
meter being configured.
Type (List box) The AK2-SC 255 currently supports the
following energy meter models:
