EMON (although no longer marketed by Danfoss)
Wattnode
Wn Plus Wattnode plus. Configuration of Wattnode
Plus is covered in this manual on the third page follow-
ing this one.
Pulse: Pulse metering via an AK2 I/O module.
>Setup< (button field) Put the cursor here and press ENTER to
begin setup.

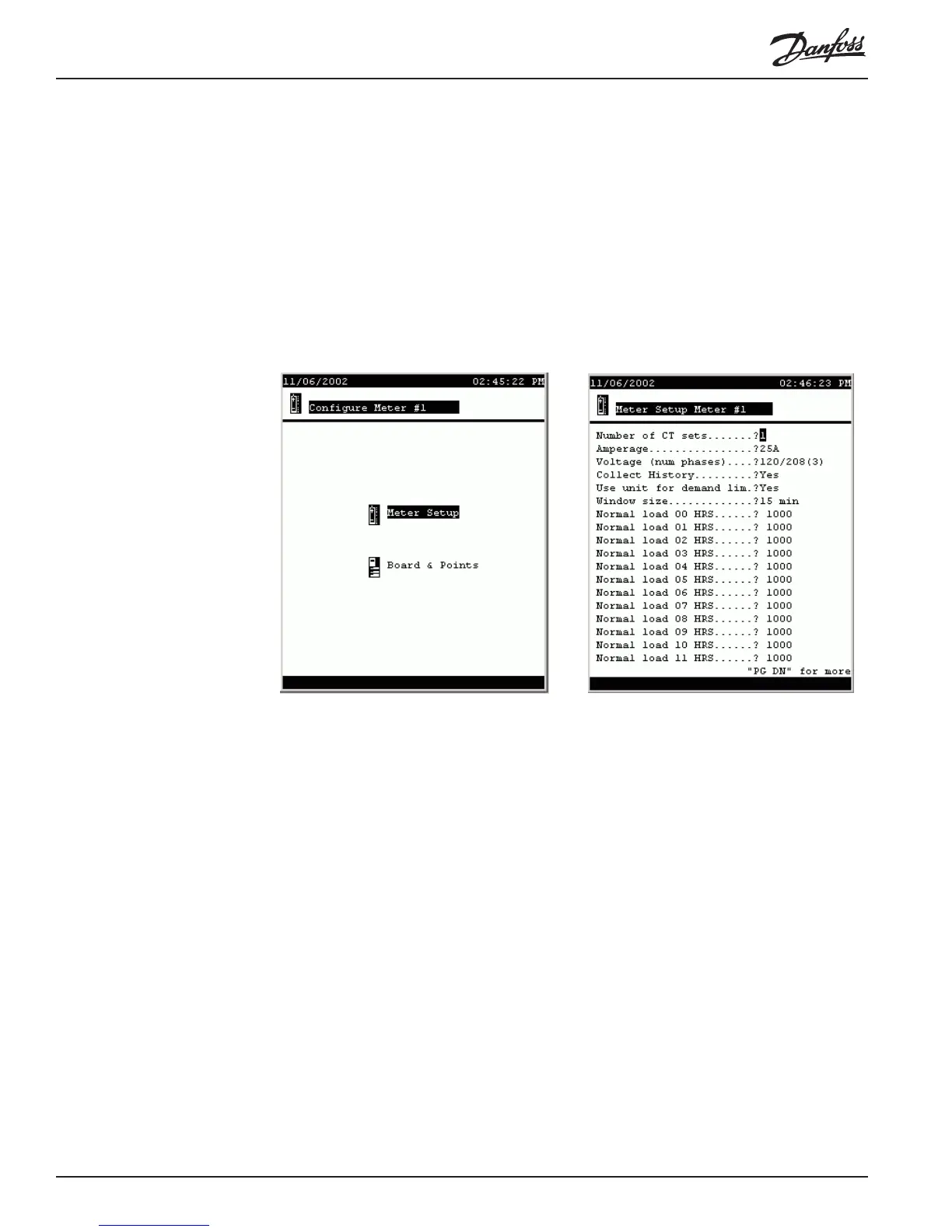

When the setup button is pressed, the Configure Meter menu appears as at left below.
When Meter Setup is selected from the menu, the first page of the Meter Setup
screen appears as at right:
In the Setup screen, these are the fields. Note that with each answer, a box will
appear in the center of the screen cautioning that proper meter function requires that
the values entered here are the same as the values entered at the meter.
Number of CT sets [EMON only] (0 to 5) The number of meters sets of
current transformers connected to this meter.
Wattnode assumes a single set of CTs.
Amperage (either List box [EMON] or Label field [Wattnode] In
the list box, entries range from 25 to 3100 A); Select
the amperage of the CTs. For Wattnode, enter the
amperage directly into the label field.
Voltage (num phases) (List box: a complete selection of supermarket voltages
with number of phases following each in parentheses.
Pick the correct combination for this meter. inbutton
field) Put the cursor here and press ENTER to begin
setup.
Collect History (List box: Yes, No) Whether or not history is to be
collected from this meter.
Use unit for demand lim (List box: Yes, No) Whether or not this meter is to be
used for demand limiting.
Window size [Appears only if Yes is selected in the previous
