192 AK2-SC 255 Reference Manual RS.8D.M1.22
and “>” buttons on either side of the mode indicator allow you to scroll through the
collected history when in snapshot mode.
Stat The Stat button at the bottom left of tabular History Display screen body brings up a
display of statistics for the four points selected. The statistics given depend on the
type of point, whether on/off (relay outputs, on/off inputs) or variable (sensor inputs,

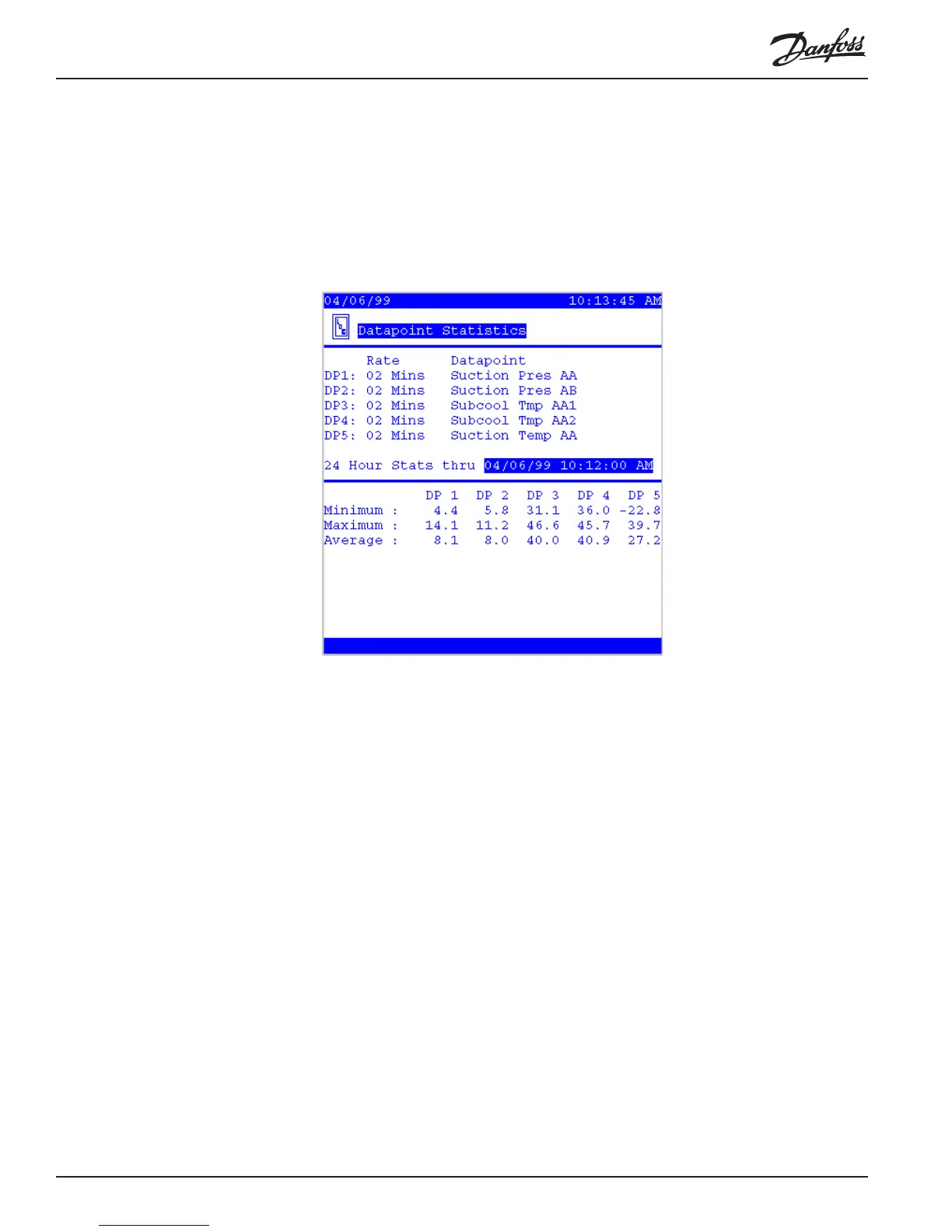

variable outputs, calculated values). Here is a sample statistics screen:
To change the twenty-four hour period covered by the statistics report, return to the
History display screen and scroll until the last line on the page is the ending time you
want for the statistics report; then press Stat again.
