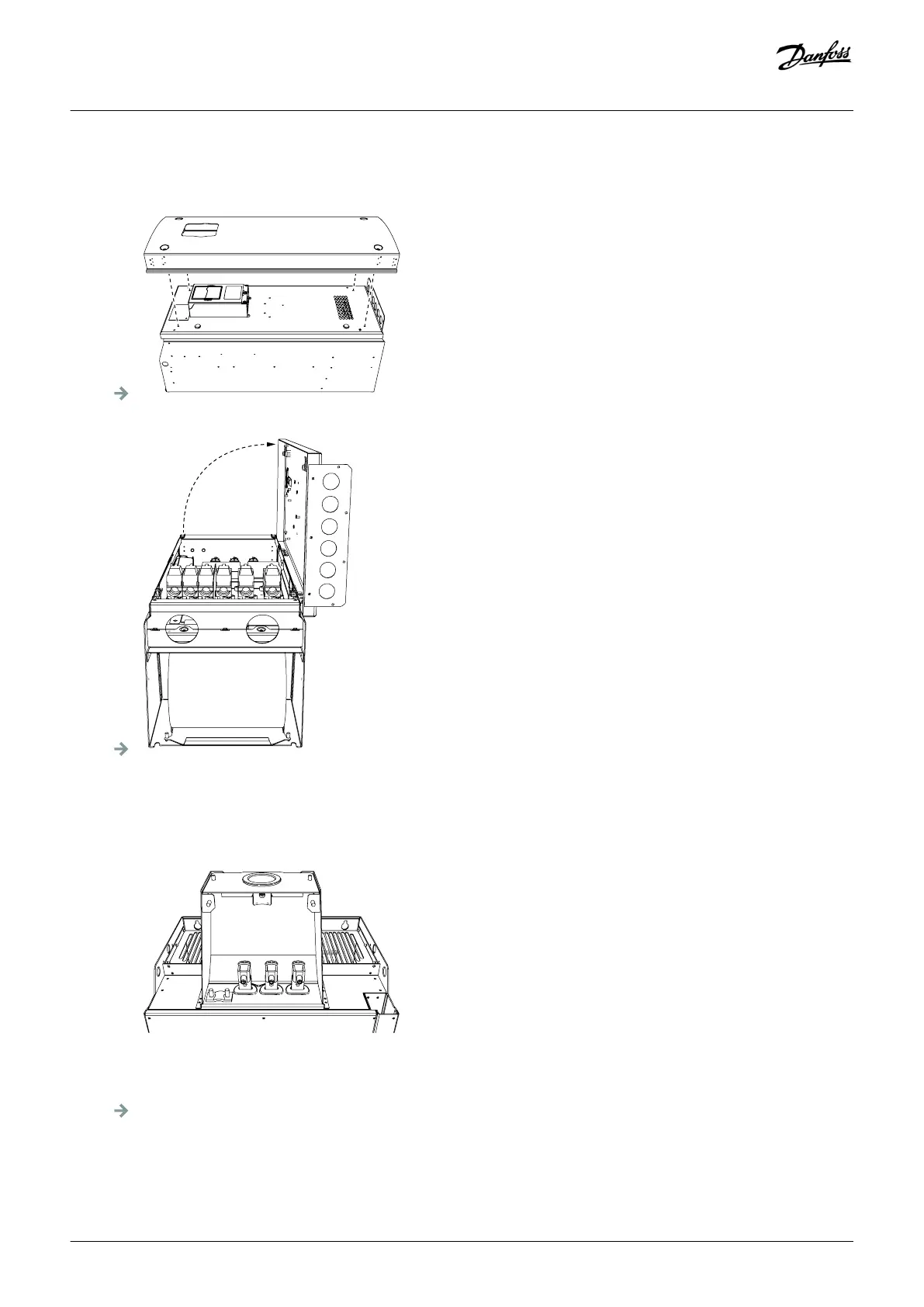

Procedure
1. Open the cover of the AC drive.
e30bg031.10
2. Open the power unit cover.
e30bg032.10
3. Find the DC terminals and Brake resistor terminals on top of the AC drive.
B-
B+
R+
R-
e30bg076.10
4. Locate the terminals.
Electrical Installation
Operating guide | VACON® NXS/NXP Air-cooled
DPD00910G | 53
Danfoss A/S © 2018.06
