NOTICE!
MAINS SHIELD SAFETY OPTION
A mains shield option is available for enclosures with a
protection rating of IP21/IP54 (Type 1/Type 12). The
mains shield is a cover installed inside the enclosure to
protect against the accidental touch of the power
terminals, according to BGV A2, VBG 4.
2.3.1 ADN-compliant Installation
•
Do not install a mains switch.
•
Ensure that parameter 14-50 RFI 1 is set to [1] On.
•
Remove all relay plugs marked RELAY. See
Figure 2.1.
•
Check which relay options are installed, if any.
The only allowed relay option is VLT
®
Extended
Relay Card MCB 113.

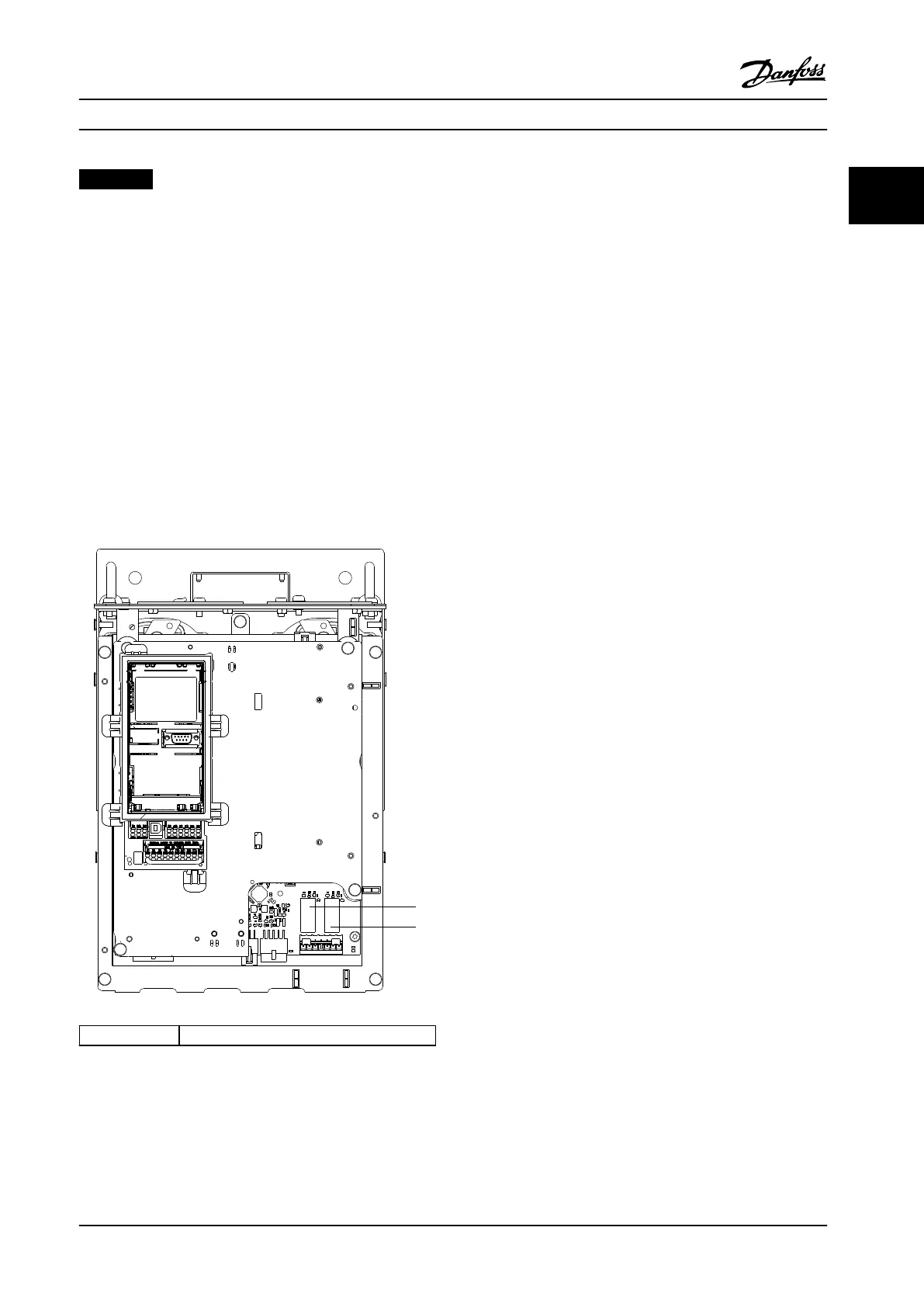

1, 2 Relay plugs
Figure 2.1 Location of Relay Plugs
Safety Design Guide
MG22B222 Danfoss A/S © 01/2018 All rights reserved. 7
2 2
