[4]
[2]
[3]
[5]
[1]
130BB665.10
Hole number and recommended use Nearest metric
1) Mains M25
2) Motor M25
3) Brake/load sharing M25
4) Control cable M16
5) Control cable M20

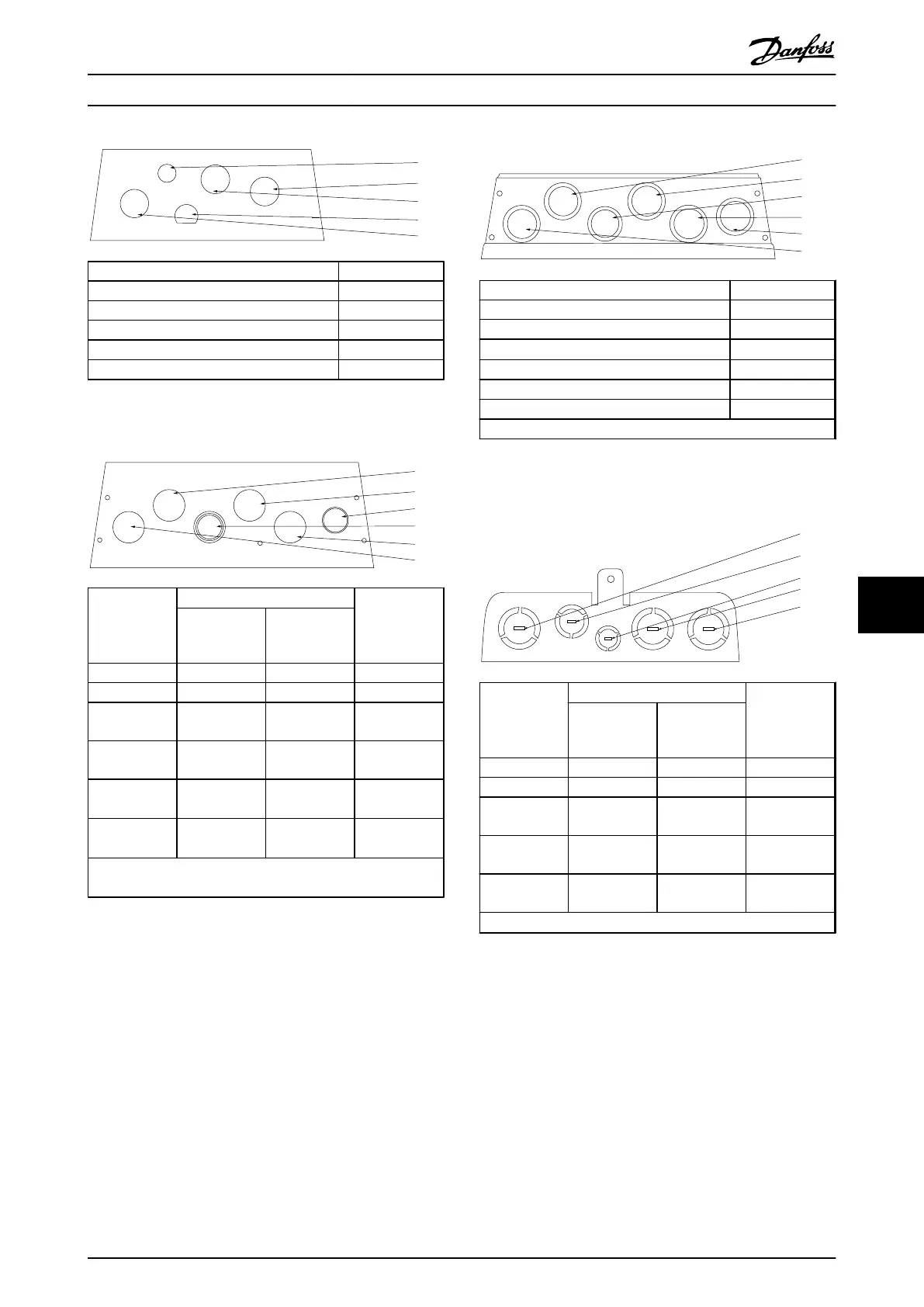

Illustration 9.4 A4 - IP55 Threaded Gland Holes
[3]
[4]
[5]
[6]
[2]
[1]
130BB664.10
Hole number
and
recommended
use
Dimensions
1)
Nearest metric
UL [in] [mm]
1) Mains 3/4 28.4 M25
2) Motor 3/4 28.4 M25
3) Brake/load
sharing
3/4 28.4 M25
4) Control
cable
3/4 28.4 M25
5) Control
cable
2)
3/4 28.4 M25
6) Control
cable
2)
3/4 28.4 M25
1) Tolerance ± 0.2 mm
2) Knock-out hole
Illustration 9.5 A5 - IP55
[4]
[5]
[3]
[6]
[2]
[1]
130BB666.10
Hole number and recommended use Nearest metric
1) Mains M25
2) Motor M25
3) Brake/load sharing
28.4 mm
1)
4) Control cable M25
5) Control cable M25
6) Control cable M25
1) Knock-out hole
Illustration 9.6 A5- IP55 Threaded Gland Holes
[1]
[4]
[5]
[3]
[2]
130BB659.10
Hole number
and
recommended
use
Dimensions
1)
Nearest metric
UL [in] [mm]
1) Mains 1 34.7 M32
2) Motor 1 34.7 M32
3) Brake/load
sharing
1 34.7 M32
4) Control
cable
1 34.7 M32
5) Control
cable
1/2 22.5 M20
1) Tolerance ± 0.2 mm
Illustration 9.7 B1 - IP21
Electrical Installation
VLT
®
AutomationDrive FC 301/FC 302 Design Guide, 0.25-75 kW
MG33BF02 - Rev. 2013-12-20 115
9 9
