130BB670.10

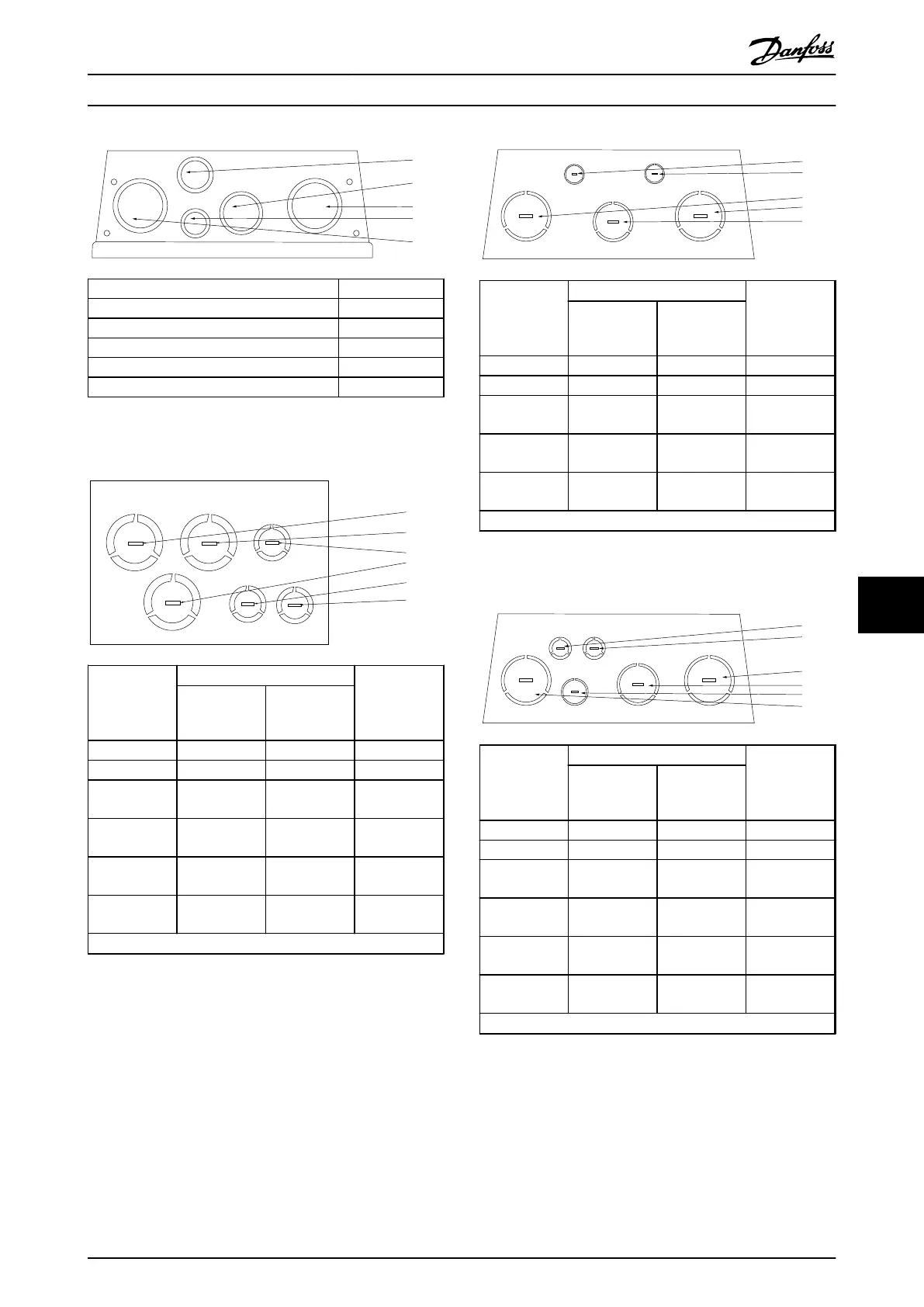

Hole number and recommended use Nearest metric
1) Mains M40
2) Motor M40
3) Brake/load sharing M32
4) Control cable M25
5) Control cable M20
Illustration 9.12 B2 - IP55 Threaded Gland Holes
[3]
[2]
[4]
[1]
[5]
[6]
130BB658.10
Hole number
and
recommended
use
Dimensions
1)
Nearest metric
UL [in] [mm]
1) Mains 1 34.7 M32
2) Motor 1 34.7 M32
3) Brake/load
sharing
1 34.7 M32
4) Control
cable
1/2 22.5 M20
5) Control
cable
1/2 22.5 M20
6) Control
cable
1/2 22.5 M20
1) Tolerance ± 0.2 mm
Illustration 9.13 B3 - IP21
[5]
[3]
[2]
[4]
[1]
130BB661.10
Hole number
and
recommended
use
Dimensions
1)
Nearest metric
UL [in] [mm]
1) Mains 2 63.3 M63
2) Motor 2 63.3 M63
3) Brake/load
sharing
1 1/2 50.2 M50
4) Control
cable
3/4 28.4 M25
5) Control
cable
1/2 22.5 M20
1) Tolerance ± 0.2 mm
Illustration 9.14 C1 - IP21
[5]
[3]
[2]
[6]
[4]
[1]
130BB662.10
Hole number
and
recommended
use
Dimensions
1)
Nearest metric
UL [in] [mm]
1) Mains 2 63.3 M63
2) Motor 2 63.3 M63
3) Brake/load
sharing
1 1/2 50.2 M50
4) Control
cable
3/4 28.4 M25
5) Control
cable
1/2 22.5 M20
6) Control
cable
1/2 22.5 M20
1) Tolerance ±0.2 mm
Illustration 9.15 C2 - IP21
Electrical Installation
VLT
®
AutomationDrive FC 301/FC 302 Design Guide, 0.25-75 kW
MG33BF02 - Rev. 2013-12-20 117
