Danfoss VLT AutomationDrive FC 302

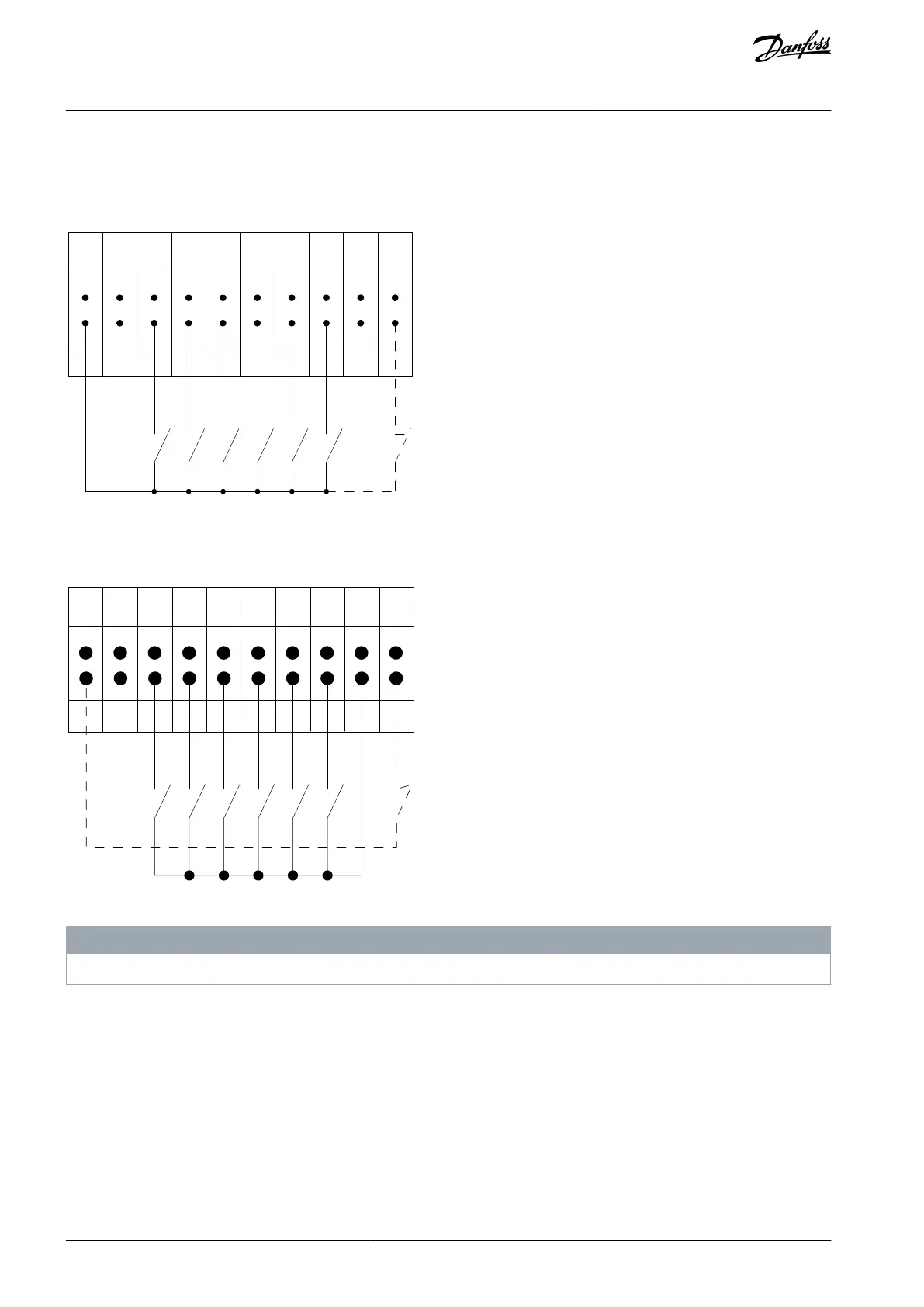

Input polarity of control terminals
12 13 18 19 27 29 32 33 20 37
+24 VDC
0 VDC
e30bt106.10
PNP (Source)
Digital input wiring
Illustration 2: PNP (Source)
NPN (Sink)
Digital input wiring
12 13 18 19 27 29 32 33 20 37
+24 VDC
0 VDC
e30bt107.11
Illustration 3: NPN (Sink)
N O T I C E
Control cables must be shielded/armored.
AU275636650261en-000101 / 130R033416 | Danfoss A/S © 2022.12
Electrical Diagrams
VLT AutomationDrive FC 301/302
Programming Guide
