Danfoss VLT AutomationDrive FC 302 Programming Guide

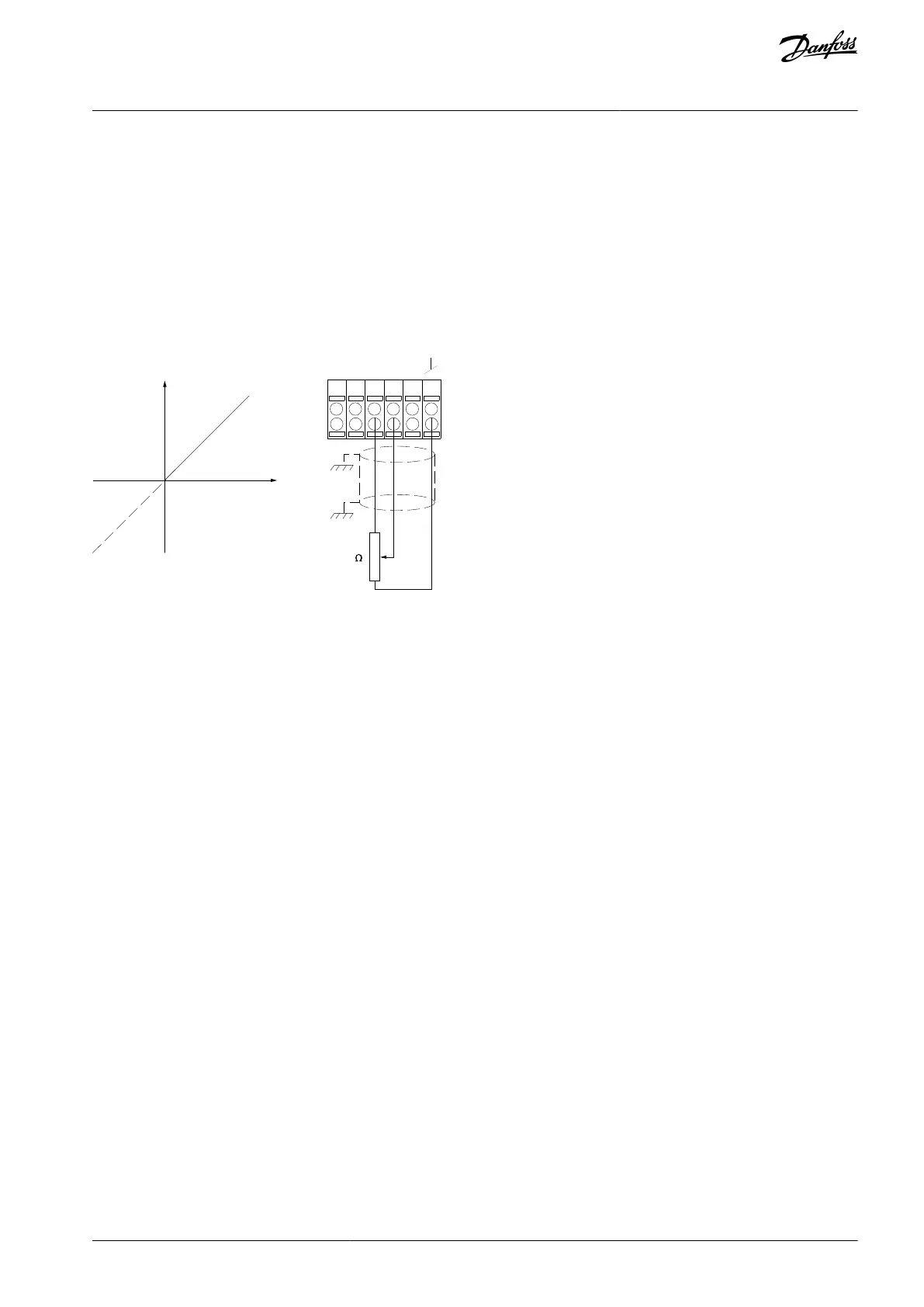

3.1.4 Potentiometer Reference
Voltage reference via a potentiometer
Reference source 1 = [1] Analog input 53 (default).
Terminal 53, low voltage = 0 V.
Terminal 53, high voltage = 10 V.
Terminal 53, low reference/feedback = 0 RPM.
Terminal 53, high reference/feedback = 1500 RPM.
Switch S201 = OFF (U)
e30ba154.11
55 50
39 42 53 54
Speed RP M
P 6-15
1 k
+10V/30mA
R
ef . v oltage
P 6-11 10V
Illustration 8: Potentiometer Reference
AU275636650261en-000101 / 130R0334 | 19Danfoss A/S © 2022.12
Electrical Diagrams
VLT AutomationDrive FC 301/302
Programming Guide
