Parameter 5-58 Term. 33 High Ref./Feedb. Value
Table 372: Parameter 5-58 Term. 33 High Ref./Feedb. Value
5-58 Term. 33 High Ref./Feedb. Value
Default value: Size related
Parameter type: Range, -999999.999 - 999999.999 ReferenceFeed-
backUnit
Setup: All setups
Conversion index: -3
Data type: Int32
Change during operation: True
Enter the high reference value [RPM] for the motor shaft speed. See also parameter 5-53 Term. 29 High Ref./Feedb. Value.
Parameter 5-59 Pulse Filter Time Constant #33
Table 373: Parameter 5-59 Pulse Filter Time Constant #33
5-59 Pulse Filter Time Constant #33
Default value: 100 ms
Parameter type: Range, 1 - 1000 ms
Setup: All setups
Conversion index: -3
Data type: Uint16
Change during operation: False
N O T I C E
This parameter cannot be adjusted while the motor is running.
Enter the pulse filter time constant. The low-pass filter reduces the influence and dampens oscillations on the feedback signal from
the control. This is an advantage if there is a lot of noise in the system.
5.6.6 5-6* Pulse Outputs
N O T I C E
These parameters cannot be adjusted while the motor is running.
N O T I C E
The following parameters are only available in FC 302:
Parameter 5-63 Terminal 29 Pulse Output Variable
Parameter 5-65 Pulse Output Max Freq #29
These parameters configure pulse outputs with their functions and scaling. Terminals 27 and 29 are allocated to pulse output via
parameter 5-01 Terminal 27 Mode and parameter 5-02 Terminal 29 Mode, respectively.
Output value
Output
(Hz)
High output
value
P 5-60(term27)
P 5-63(term29)
High freq.
P 5-62(term27)
P 5-65(term29)
e30ba089.11

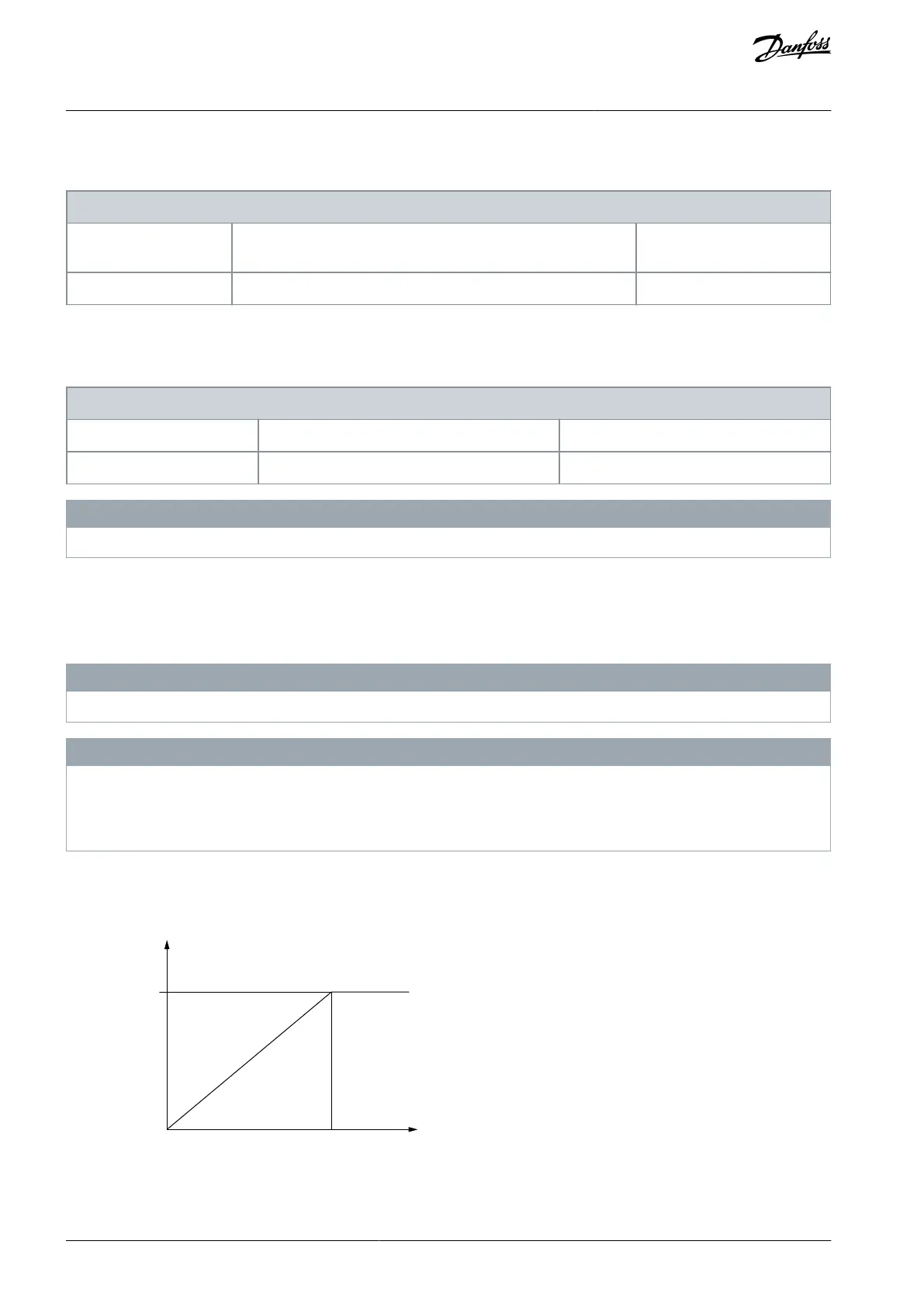

Illustration 66: Configuration of Pulse Outputs
