Danfoss vlt FC 102 Programming Guide

•
Parameter 0-60 Main Menu Password.
•
Parameter 0-61 Access to Main Menu w/o Password.
•
Parameter 0-65 Personal Menu Password.
•
Parameter 0-66 Access to Personal Menu w/o
Password.
For most applications, it is not necessary to access the
main menu parameters. Instead, the Quick Menu, Quick Set-
up and Function Set-up provide the simplest and quickest
access to the most required parameters.
It is possible to switch directly between Main Menu mode
and Quick Menu mode.
Parameter shortcut can be carried out by pressing [Main
Menu] for 3 s. The parameter shortcut allows direct access
to any parameter.
[Alarm Log]
[Alarm Log] shows an alarm list of the 10 most recent
alarms (numbered A1-A10). To obtain more details about
an alarm, press the navigation keys to manoeuvre to the
alarm number and press [OK]. Information is shown about
the condition of the frequency converter before it enters
the alarm mode.
The [Alarm Log] key on the LCP allows access to both
alarm log and maintenance log.
[Back]
[Back] reverts to the previous step or layer in the
navigation structure.
B
a
c
k

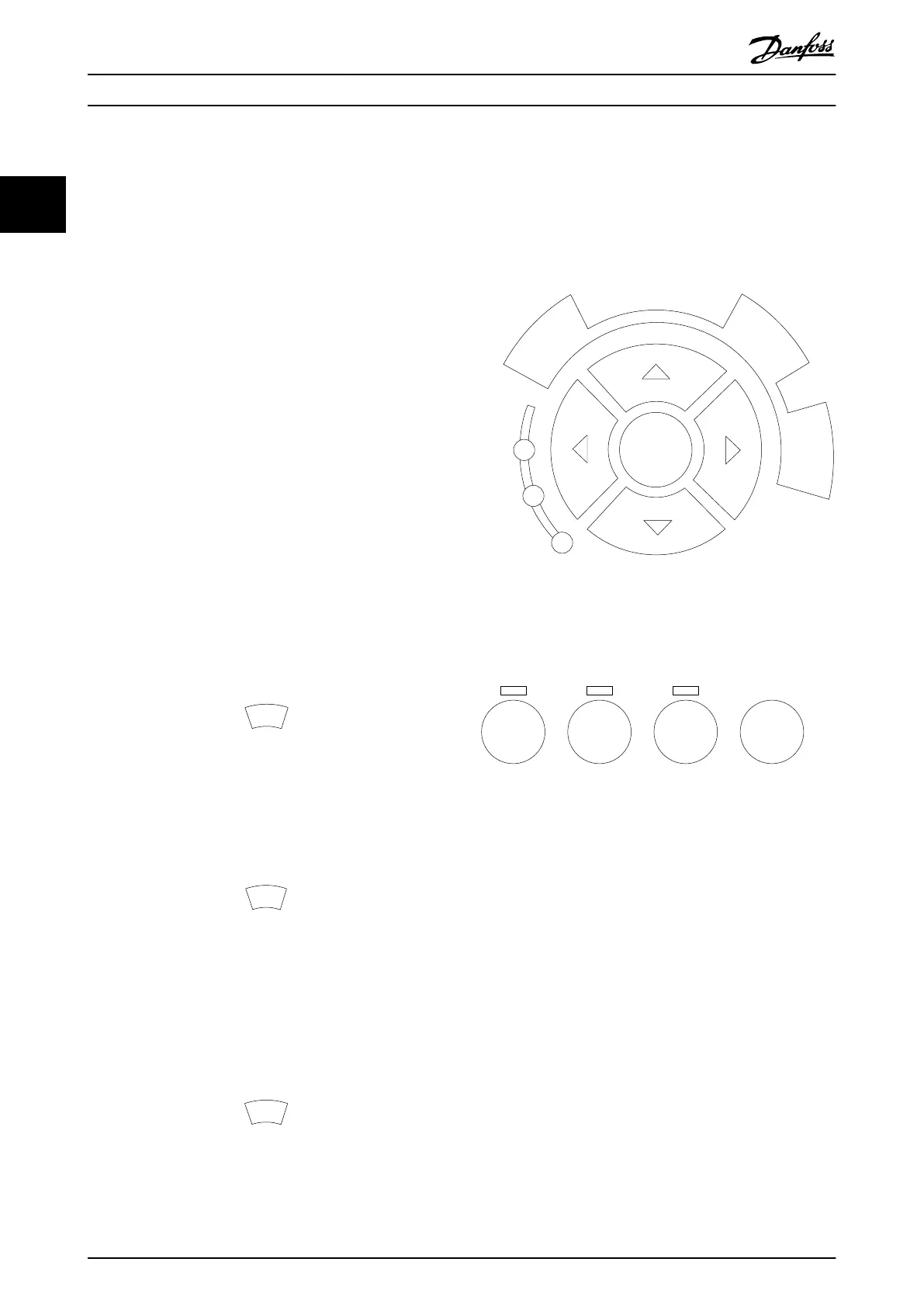

Illustration 2.8 Back Key
[Cancel]
[Cancel] cancels the last change or command as long as
the display has not been changed.
C
a
n
c
e
l
Illustration 2.9 Cancel Key
[Info]
[Info] shows information about a command, parameter, or
function in any display window. [Info] provides detailed
information when needed.
Exit Info mode by pressing either [Info], [Back], or [Cancel].
I
n
f
o
Illustration 2.10 Info Key
Navigation keys
The 4 navigation keys are used to navigate between the
dierent options available in the Quick Menu, Main Menu,
and Alarm Log. Press the keys to move the cursor.
[OK]
Press [OK] to select a parameter marked by the cursor and
for enabling the change of a parameter.
130BT117.10
OK
Back
Info
Warn
Alarm
On
Cancel
Illustration 2.11 Navigation Keys
Operation keys
Operation keys for local control are found at the bottom of
the control panel.
e30bp046.12
Hand
On
Off
Auto
On
Reset
Illustration 2.12 Operation Keys
[Hand On]
[Hand On] enables control of the frequency converter via
the GLCP. [Hand On] also starts the motor and allows
entering the motor speed data with the navigation keys.
The key can be selected as [1] Enable or [0] Disable via
parameter 0-40 [Hand on] Key on LCP.
The following control signals are still active when [Hand
On] is activated:
•
[Hand On] - [O] - [Auto On].
•
Reset.
•
Coasting stop inverse.
•
Reversing.
•
Set-up select lsb - Set-up select msb.
•
Stop command from serial communication.
•
Quick stop.
•
DC brake.
How to Programme
VLT
®
HVAC Drive FC 102
14 Danfoss A/S © 10/2019 All rights reserved. M0010001
22

Danfoss vlt FC 102 Specifications

General

Category	DC Drives
Model	Danfoss VLT FC 102
Output voltage range	0 to rated motor voltage
Power range	0.37 kW to 200 kW
Communication interfaces	RS-485
Protection features	Overvoltage, undervoltage, overcurrent, short circuit, earth fault, overtemperature, motor thermal protection
Cooling method	Air-cooled
Enclosure rating	IP20, IP21, IP55 (depending on model)
Approvals	CE, UL, cUL
