6-44 Removal and Replacement
Record the Printer Network Settings

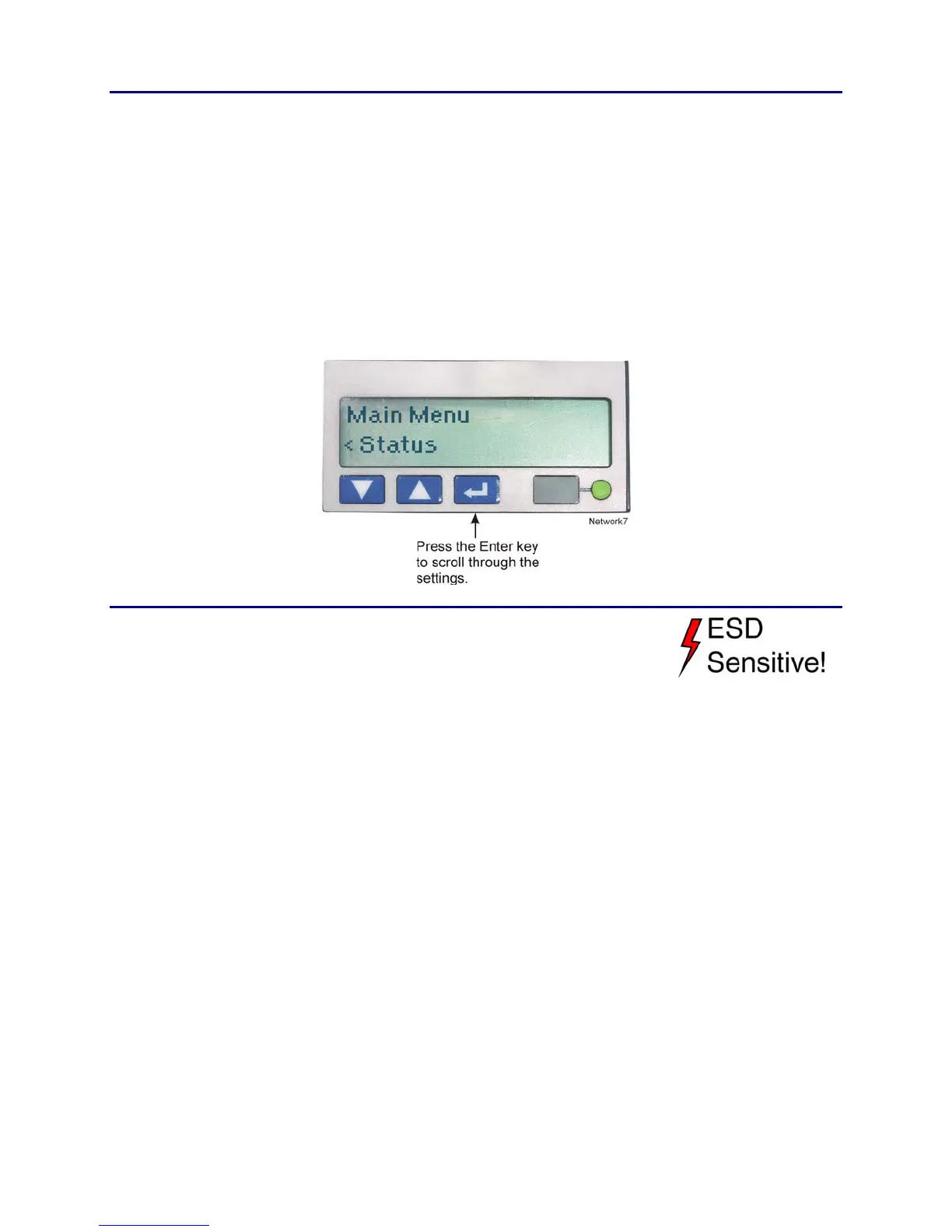

1. Press the Enter key on the display to enter the status menu.
2. Repeatedly press the Enter key to scroll through the network settings and
record each one as it is displayed.
• Address Mode
• Data Format
• IP Address
• Subnet Mask
• Gateway Address
• MAC Address
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (page 6-15).
4. Remove the
Upper Printer Assembly from the base (page 6-38).
5. Disconnect all cables from the control board.
6. Lift the board out of the base.
7. If the printer is equipped with the magnetic stripe option, remove the
Magnetic Stripe Circuit Board (page 6-84) from the main control board.
8. If the printer is equipped with a smart card option, remove the
Smart Card
Interface Board (page
6-89) and the two standoffs from the main control
board.
