6-62 Removal and Replacement

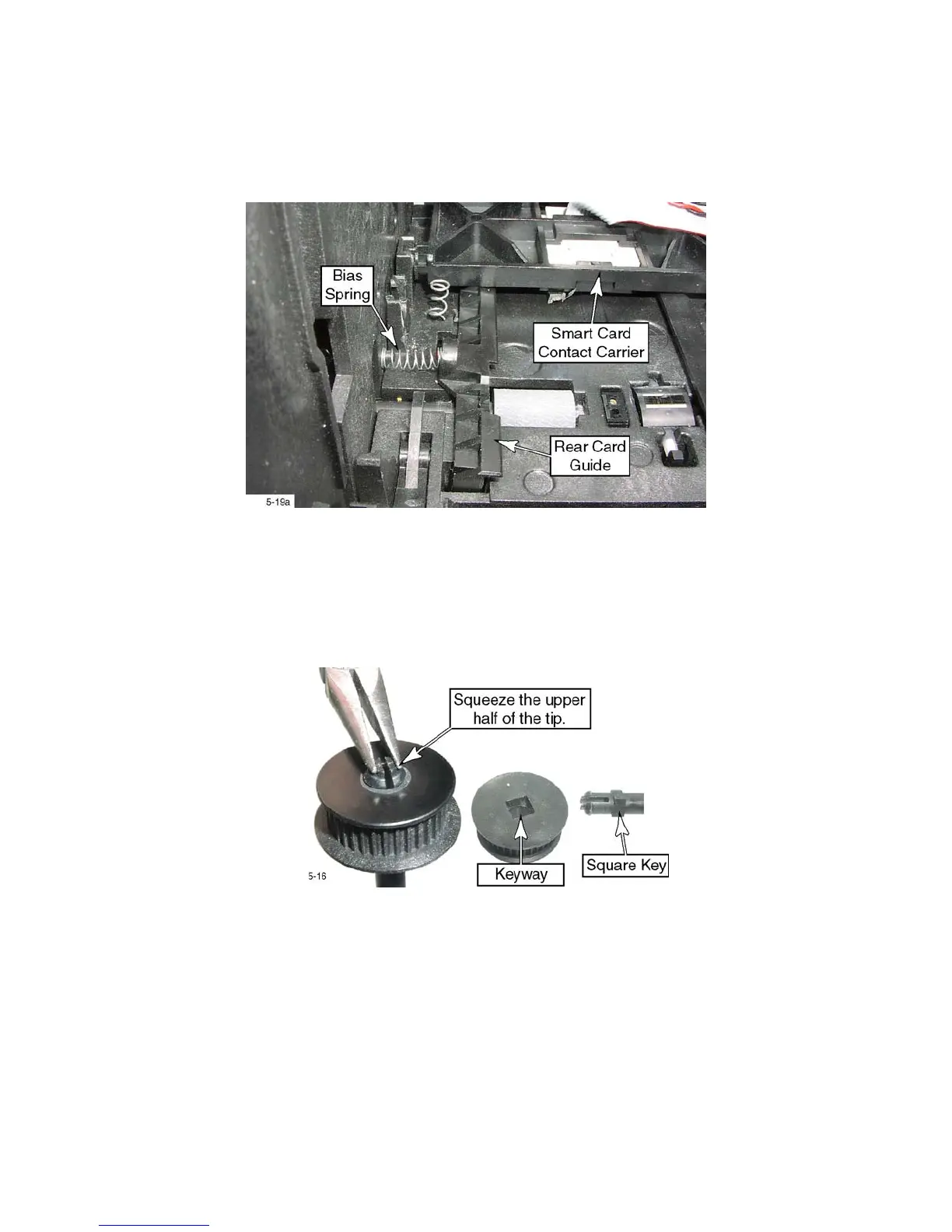

6. Remove the rear card guide:
A. Remove the bias spring from the card guide. This will reduce the chance
of the spring flying loose when the guide is removed.
B. Pull up on the card guide.
7. Remove the
Transport Timing Belt (page 6-47).
8. Remove the pulley from the shaft by squeezing the end of the shaft and
slipping the pulley off.
 The pulley's flange is permanently adhered to the pulley. Do not try to
remove the flange.
