Page 46

LCD menu system

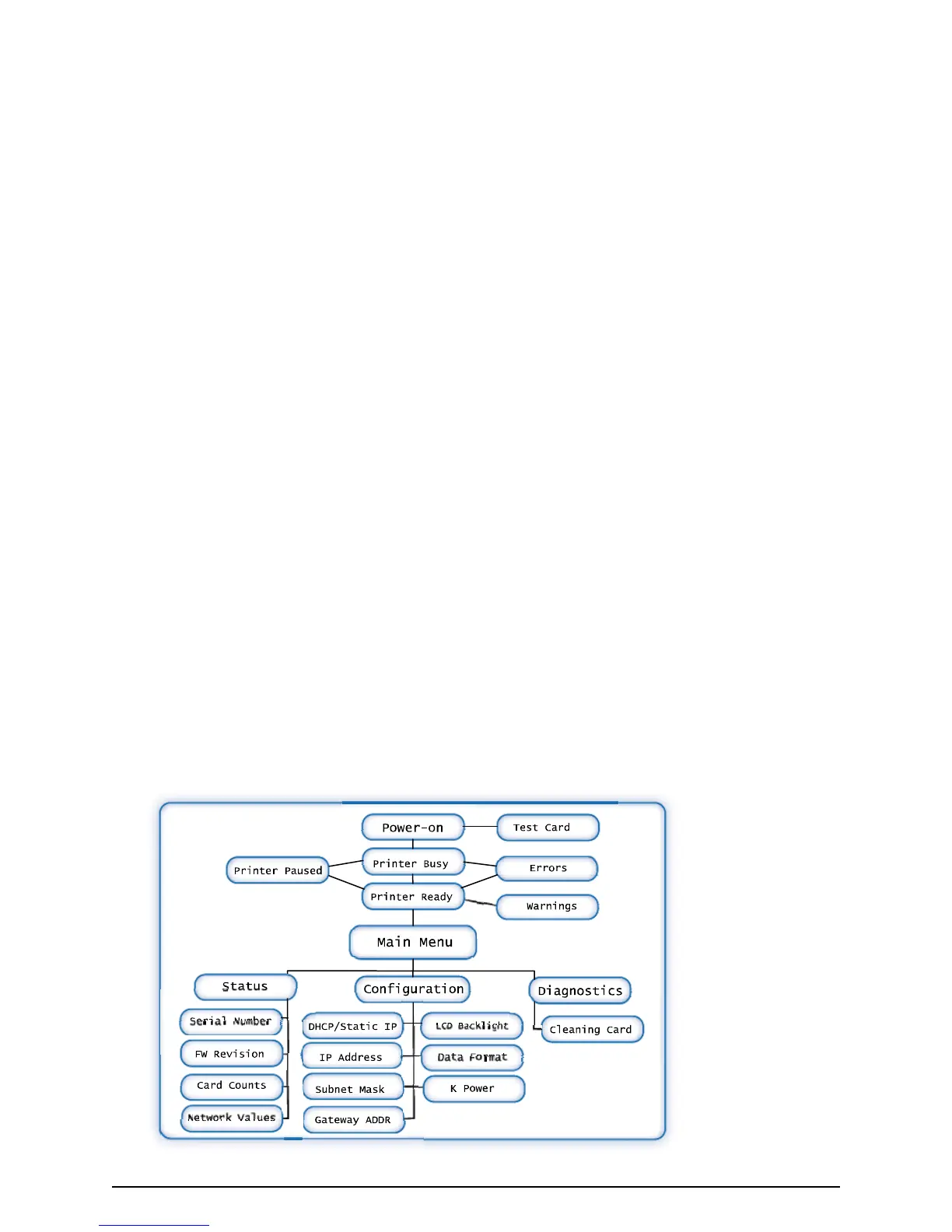

The menu system has three major branches. Use the Status menu to view settings and data about the printer.

Use the Configuration menu to change settings. Use the Diagnostics menu to run a cleaning card.
