Datalogic DS8100A User Manual

ALTERNATIVE LAYOUTS
119
A

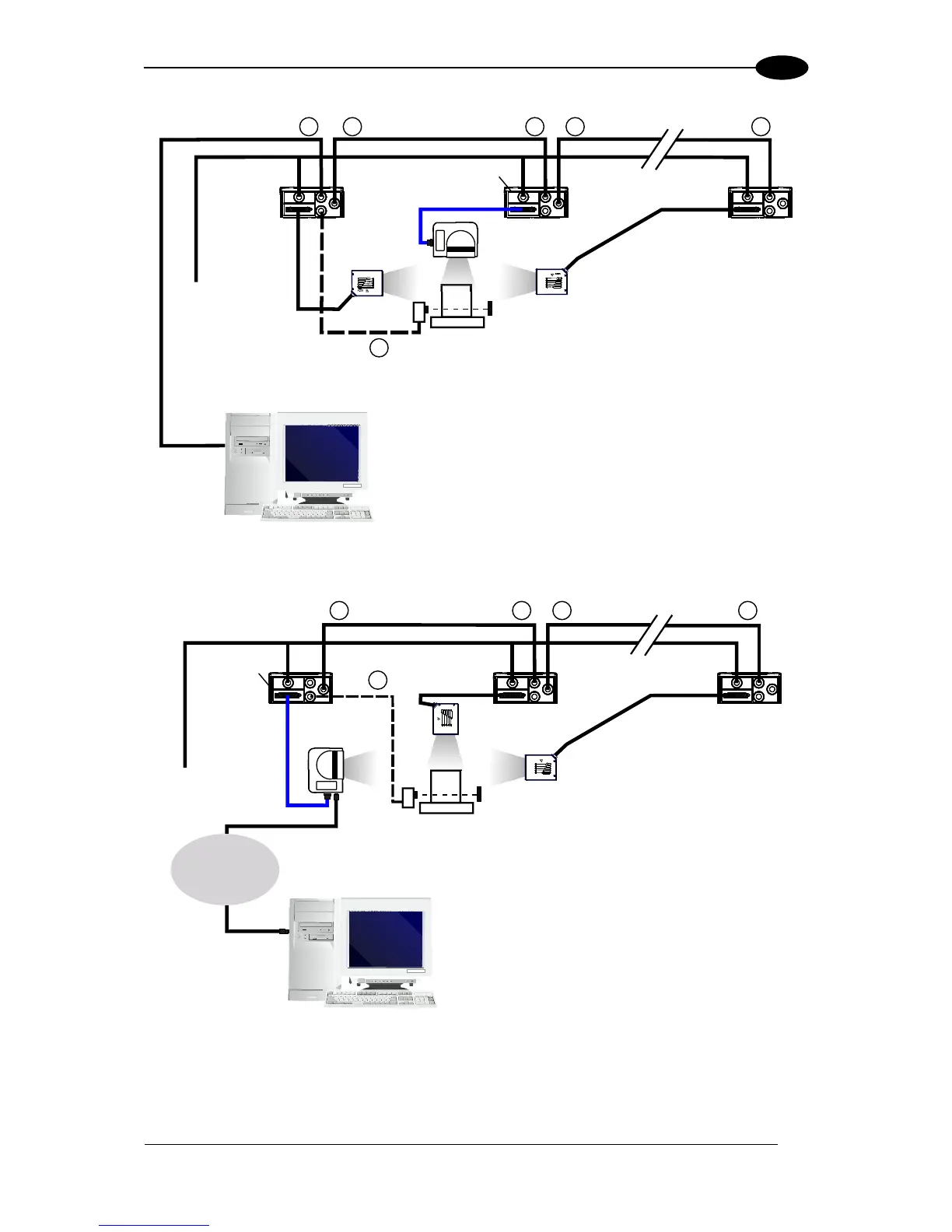

Figure 108 – RS232 Master/Slave for DS8100A Standard Models
INTERFACE
PRESS
X
TEST
LEARN
SETUP
STATUS
TRIGGER
GOOD
READY
COM
INTERFACE
PRESS
X
TEST LEARN SETUP
STATUS
TRIGGER
GOOD
READY COM
Figure 109 – RS232 Master/Slave for DS8100A Ethernet Models
Local Host
1
2
3
1
Master
 Main Serial Interface (RS232 only)
 Auxiliary Serial Interface (RS232)
 Input 1 (External Trigger/PS for On-Line Mode)
2
1
Slave#1
Slave#n
Power
CBX100
CAB-F0x
Remote Host
2
3
1
Master
 Main Serial Interface (RS232 only)
 Auxiliary Serial Interface (RS232)
 Input 1 (External Trigger/PS for On-Line Mode)
2
1
Slave#1
Slave#n
Power
Ethernet
Network
CBX100
CAB-F0x
