DS8100A REFERENCE MANUAL
14
2
2 INSTALLATION
To install the system follow the given procedure:
1. Select the mounting location for DS8100A;
2. Mount the DS8100A scanner;
3. Position the scanner with respect to the barcode;
4. Proceed with system electrical connection;
5. Install the Genius™ program on the PC and configure the scanner.
WARNING
When installing several scanners, take care to position them correctly so
that no laser beam enters the reading window perpendicularly and at the
same level of the output beam of the other scanners. This condition could
occur more frequently for side mounted applications. If these precautions
are not followed, it may occur that the laser of the blinded scanner starts
blinking due to an internal circuit which temporarily turns the laser off when
detecting a power anomaly. To resolve this problem, it is sufficient to slightly
change the inclination and position of one of the two scanners involved.
NOTE
Refer to the Reference Documentation for details on connecting your
DS8100A reader to other devices in the system (i.e. CBX100 etc.).
2.1 PACKAGE CONTENTS
Verify that the DS8100A reader and all the parts supplied with the equipment are present
and intact when opening the packaging; the list of parts includes:
DS8100A reader
Installation Quick Reference + barcode test chart
DS8100A configuration CD-ROM
Mounting bracket and screws

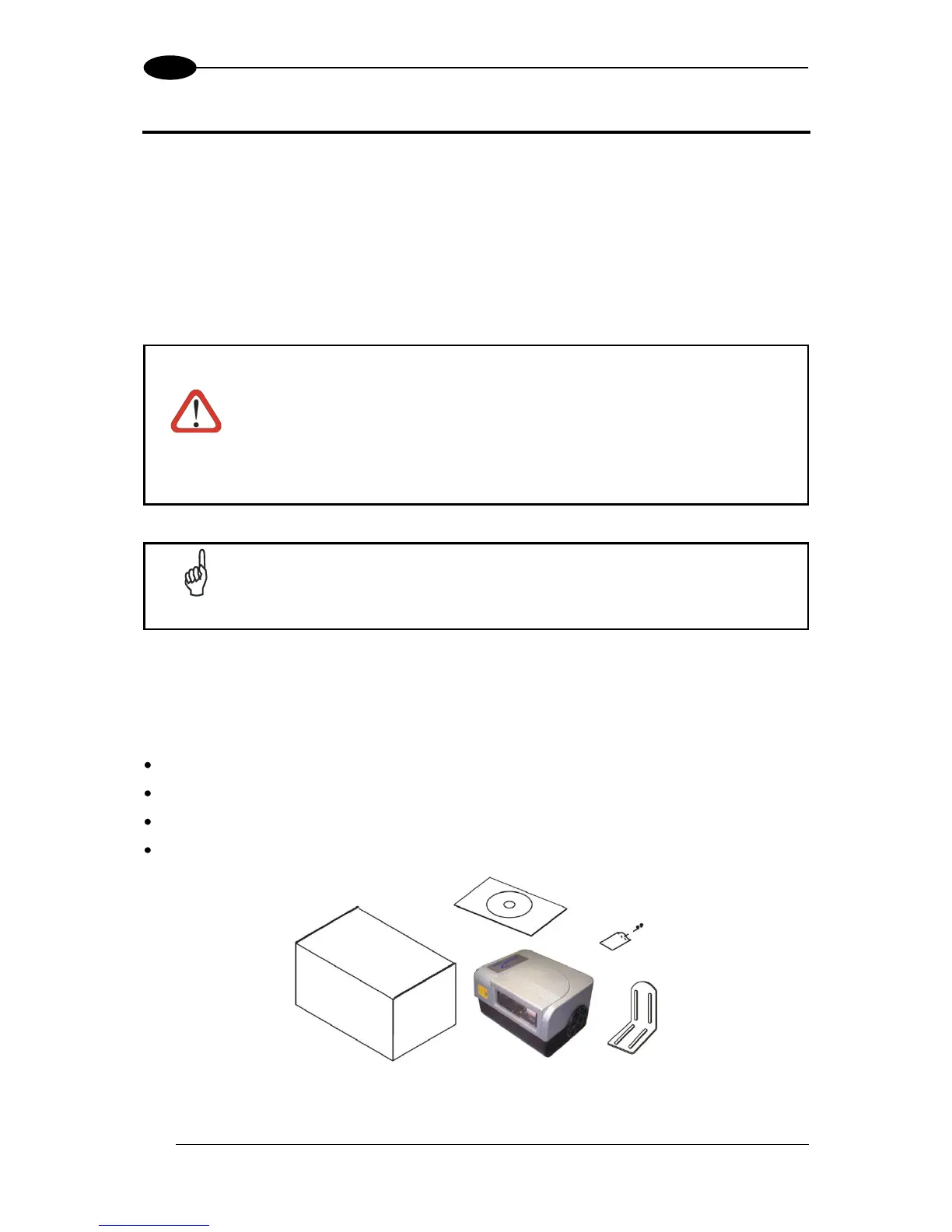

Figure 5 - DS8100A Package Contents
