2.2 MECHANICAL MOUNTING
2.2.1 Mounting the Scanner
DS8100A can be installed to operate in any position. There are 16 screw holes (M6 X 8) on
the sides of the scanner for mounting. The diagram below can be used for installation; refer to
par. 4.6 and par. 9.4 for correct positioning of the scanner with respect to the reading zone and
scanner orientation.
126.6
[4.98]
172.5
[6.79]
217
[8.54]
45°
67.5
[2.66]
50
[1.97]
46.7
[1.84]
50
[1.97]
45°
M6 N°16
mm
inch
67.5
[2.66]
46.8
[1.84]

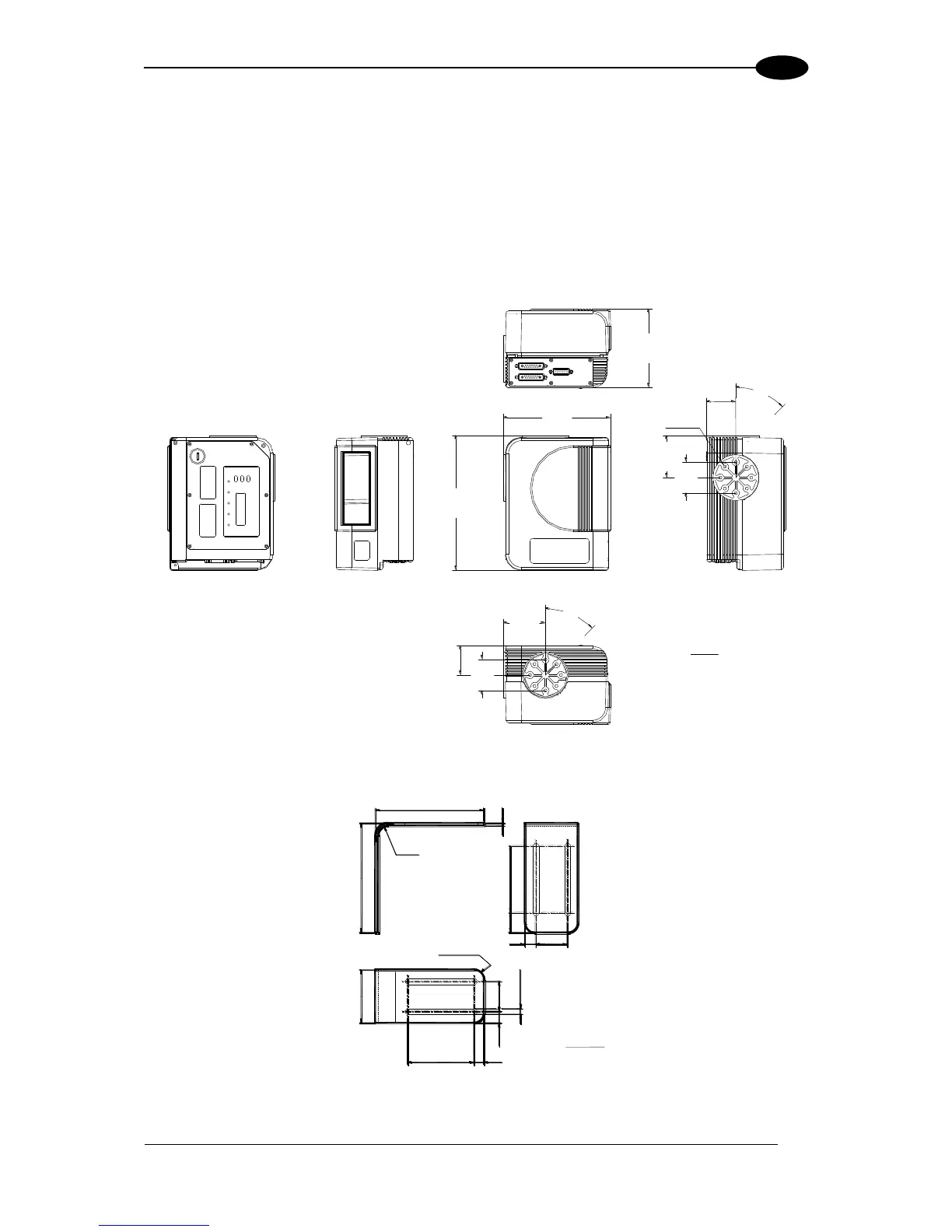

Figure 6- DS8100A Overall Dimensions
164
6.45
R 15
0.59
5
0.19
164
6.45
100
3.93
30
1.18
16
0.63
48
1.88
R 15 N°4
0.59
80
3.15
100
3.93
15
0.59
17.5
0.68
45
1.77
8.5 N° 4
0.33
mm
inch
Figure 7– ST-163 Mounting Bracket Overall Dimensions
