7. Repeat the same procedure for Position 2 and Position 3.
8. After calibrating the 3 positions, press the “Validate Calibration” button to validate the
calibration settings.
Before closing the dialog box, press the Run Test button to test the calibration results and
efficiency. See the following figure.

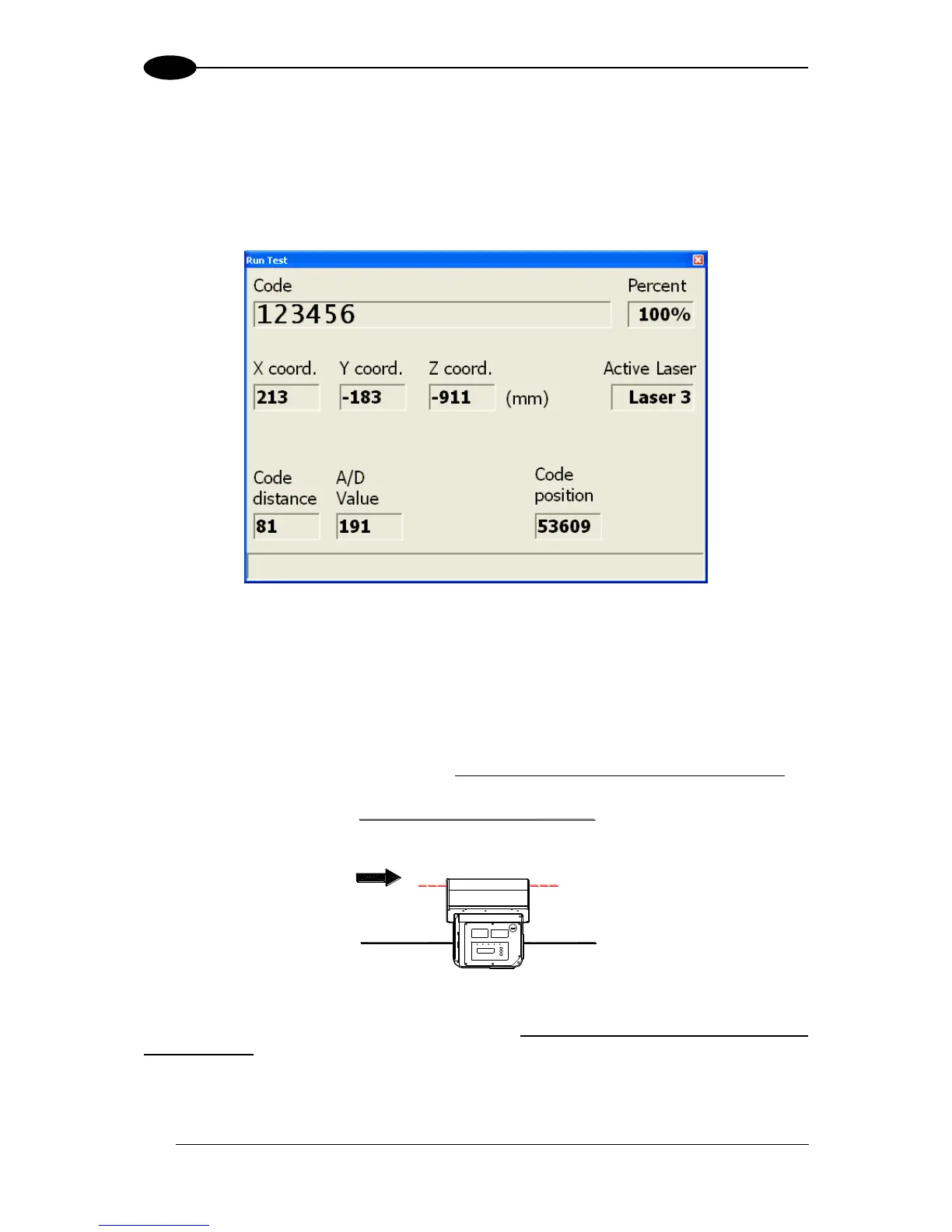

Figure 101 – Testing PackTrack™ Calibration
Repeat the entire procedure for each scanner in the Reading Station.
9.2.3 PackTrack™ Calibration for DS8100A Oscillating Mirror Models
The DS8100A oscillating mirror models can be used in PackTrack™ operating mode only
when the scanner is mounted so that the scan line is parallel to the conveyor direction as
shown in the following figure:
Figure 102 – Oscillating Mirror Models in PackTrack™ Mode
PackTrack™ Calibration must be made while the scanning plane is perpendicular to the
conveyor plane and fixed (not oscillating).
