2.3 POSITIONING THE SCANNER
The DS8100A scanner is able to decode barcode labels at a variety of angles, however
significant angular distortion may degrade reading performance.
When mounting the DS8100A take into consideration these three ideal label position angles:
Pitch 0°, Skew 0° to 45° and Tilt 0°.
Follow the suggestions for the best orientation:

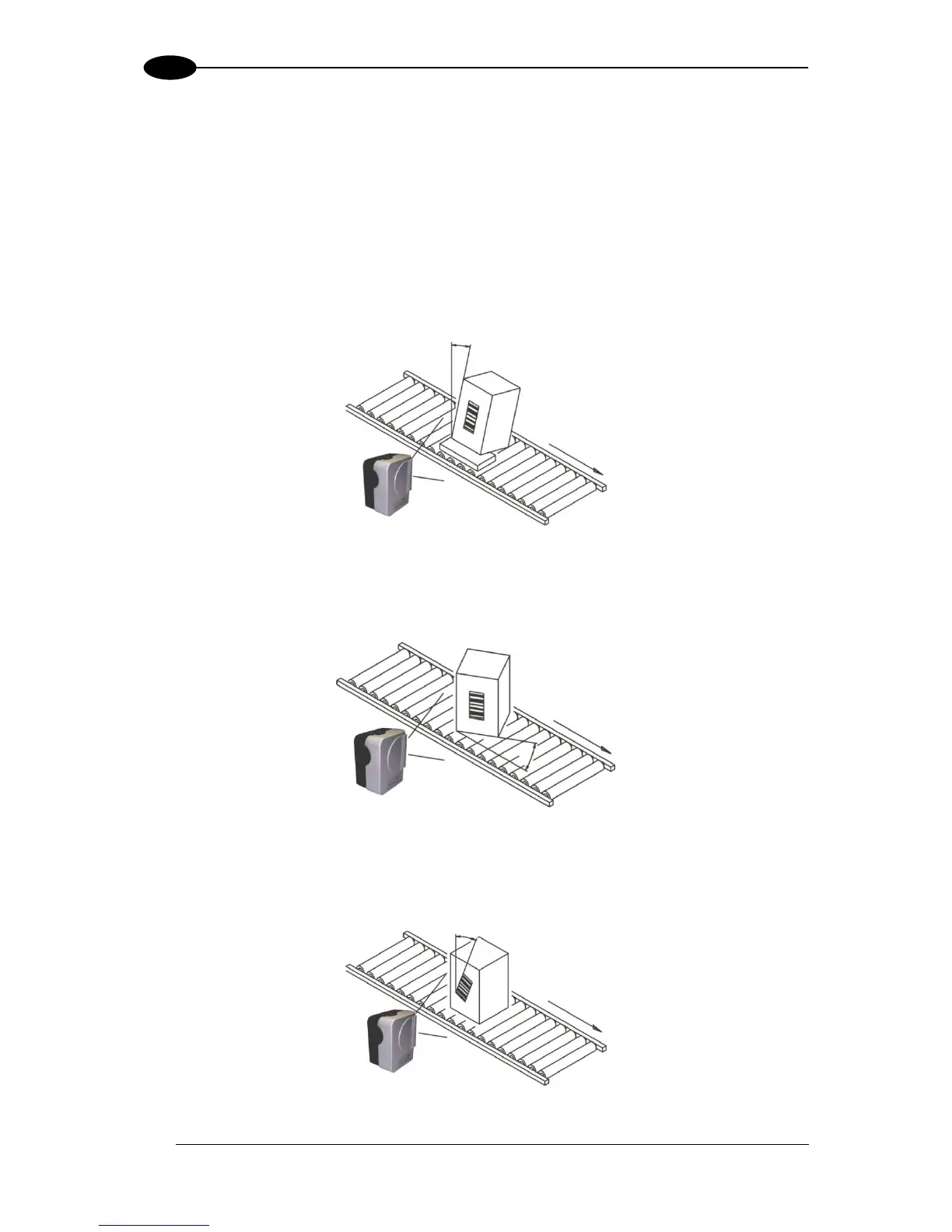

The Pitch angle is represented by the value P in Figure 12. Position the reader in order to
minimize the Pitch angle.
Figure 12 - "Pitch" angle
The Skew angle is represented by the value S in Figure 13.
Figure 13 - "Skew" angle
The Tilt angle is represented by the value T in Figure 14. For code reconstruction see par. 9.1.
Figure 14 – "Tilt" angle
