The last section summarizes the calibration status of each scanner.
--------------------------------------
SCANNERS STATE SUMMARY
--------------------------------------
Scanner E Calibrated and verified
Scanner F Calibrated and verified
Scanner J Calibrated and verified
Scanner K Calibrated and verified
Scanner L Calibrated and verified
Scanner M Calibrated and verified
Scanner N Calibrated and verified
Scanner O Calibrated and verified
Scanner Q Calibrated and verified
Scanner R Calibrated and verified
Scanner S Calibrated and verified
9.2.2 Manual PackTrack™ Calibration for DS8100A Scanner Using SPY
In a Master /Slave Reading Station working in PackTrack™ or Continuous operating mode,
the individual scanners can be calibrated using the SPY tool in Genius™.
PackTrack™ Reference System

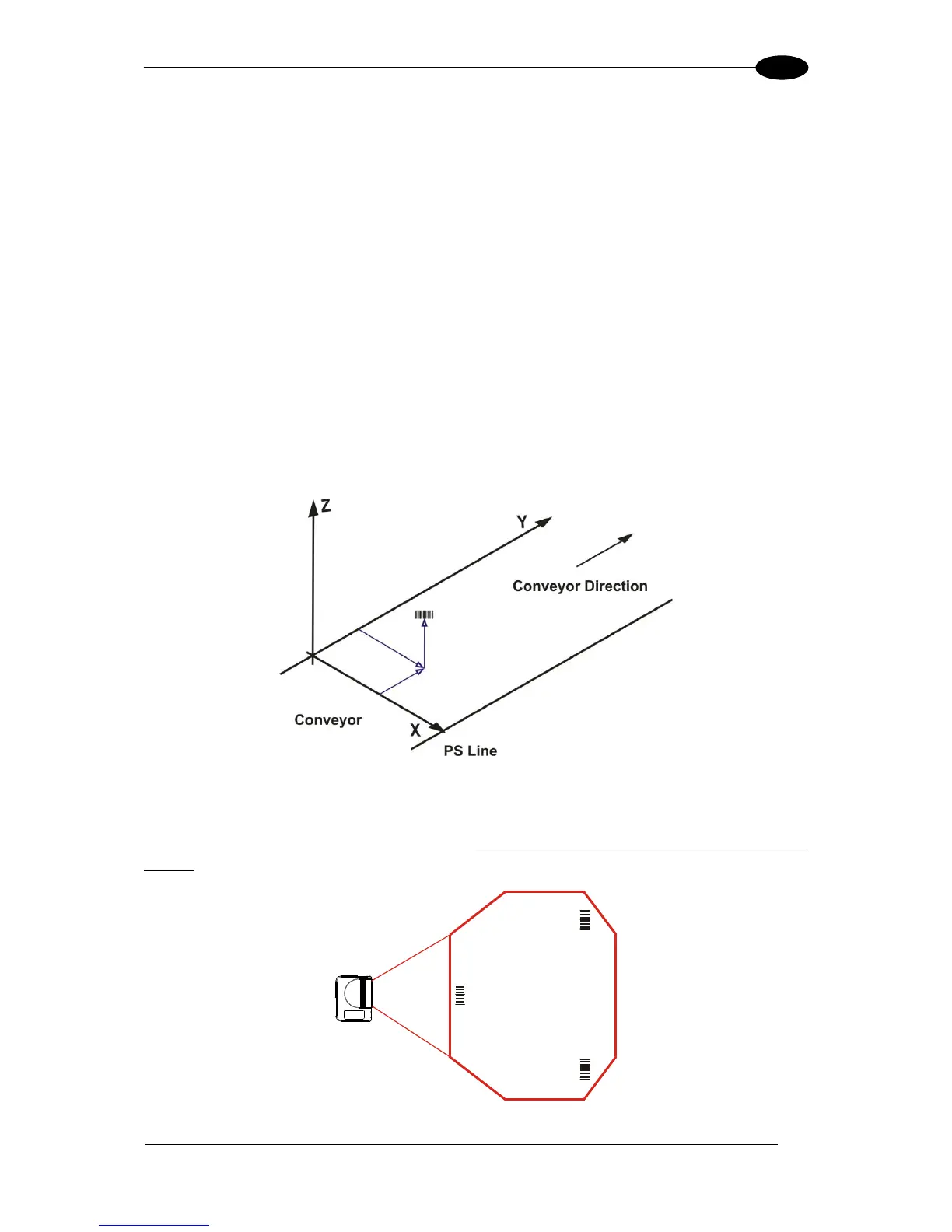

Figure 96 – PackTrack™ Reference System
Independently from the scanner position in the reading station (top, side, bottom, etc), the
general procedure is to place three barcodes along the scanline of the scanner as indicated
in the figure below. The order is not important but the relative position to the scanner reading
area is: one barcode in the center near position and two barcodes at the outer edges of the
reading area.
Figure 97 – Manual PackTrack™ Calibration Relative Code Positioning
