The CBX800 Gateway can be used to integrate a DS8100A reader into a high speed ID-
NET™ network consisting of different scanners not provided with a Lonworks interface.
In this case the DS8100A uses its main RS232/RS485 interface to communicate with the
CBX800.

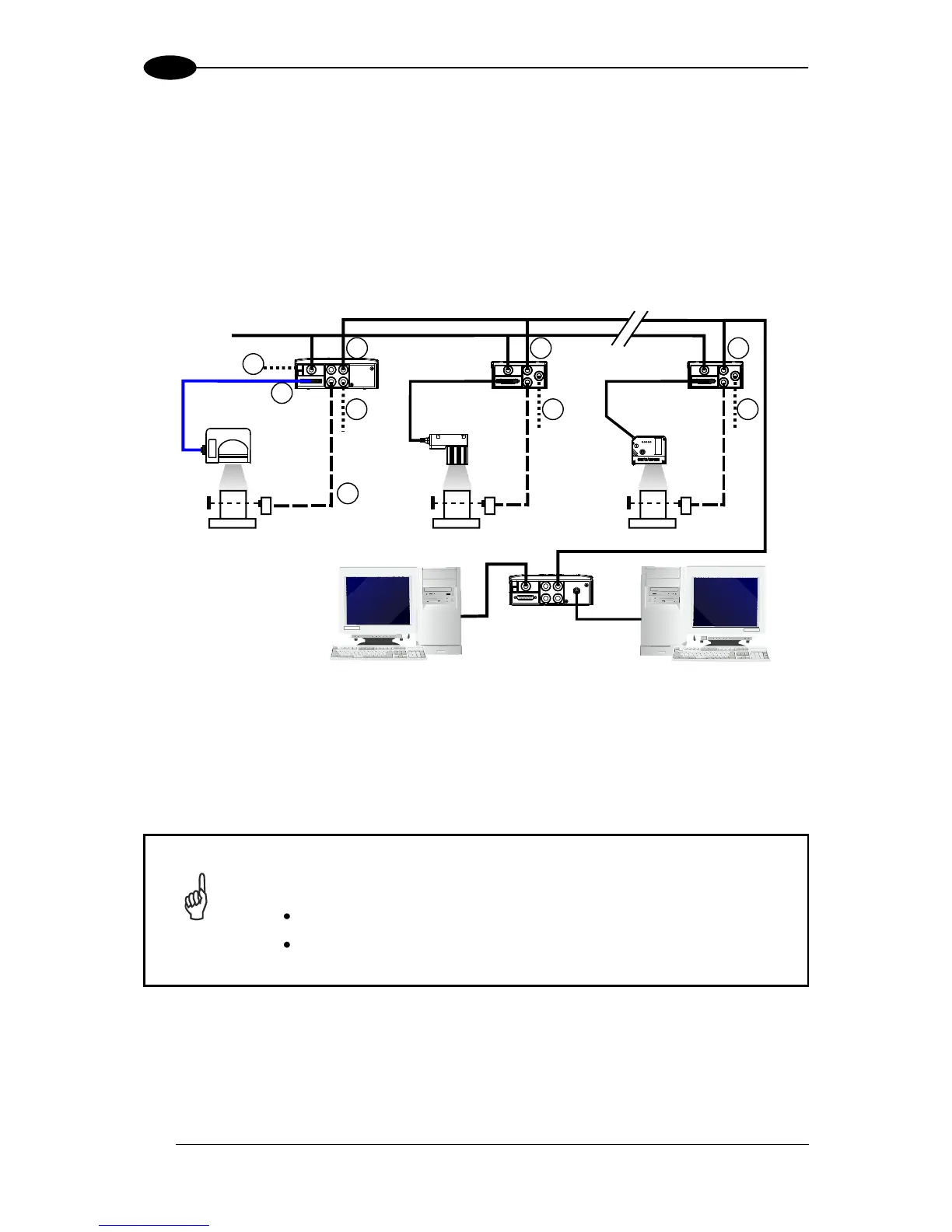

Figure 105 – DS8100A Slave/CBX800 Gateway in an ID-NET™ High Speed Network
NOTE
For 8K family scanners having software version 6.80 or later, an alternative
fixed speed (57600 baud) ID-NET™ layout can be made without the use of
the CBX800 provided:
the 8K scanner is only an ID-NET™ slave device
the ID-NET™ master is only an SC4000 Controller
See the ID-NET™ Application Note for details.
ID-NET™ Slave Nodes
 CBX800 Source Interface
 CBX800 ID-NET™ Interface
 Reader ID-NET™ Interface
 External Trigger (for On-Line Mode)
 Host Aux for CBX800 Configuration
 Source Aux for Source Reader Configuration
 Reader Auxiliary Interface for Reader Configuration
Ethernet TCP/IP (WebSentinel)
1
CBX800
CBX100
CBX100
2
3
Power
3
4
5
6
DS4800
DS8100A
7
Matrix 400™
7
Serial (Host)
Host 2
Host 1
ID-NET™
SC4000
ID-NET™
Master
