DS8100A REFERENCE MANUAL
54
6
The Ethernet interface can be used for TCP/IP communication with a remote or local host
computer by connecting the scanner to a LAN. It can also be connected directly to a host PC.

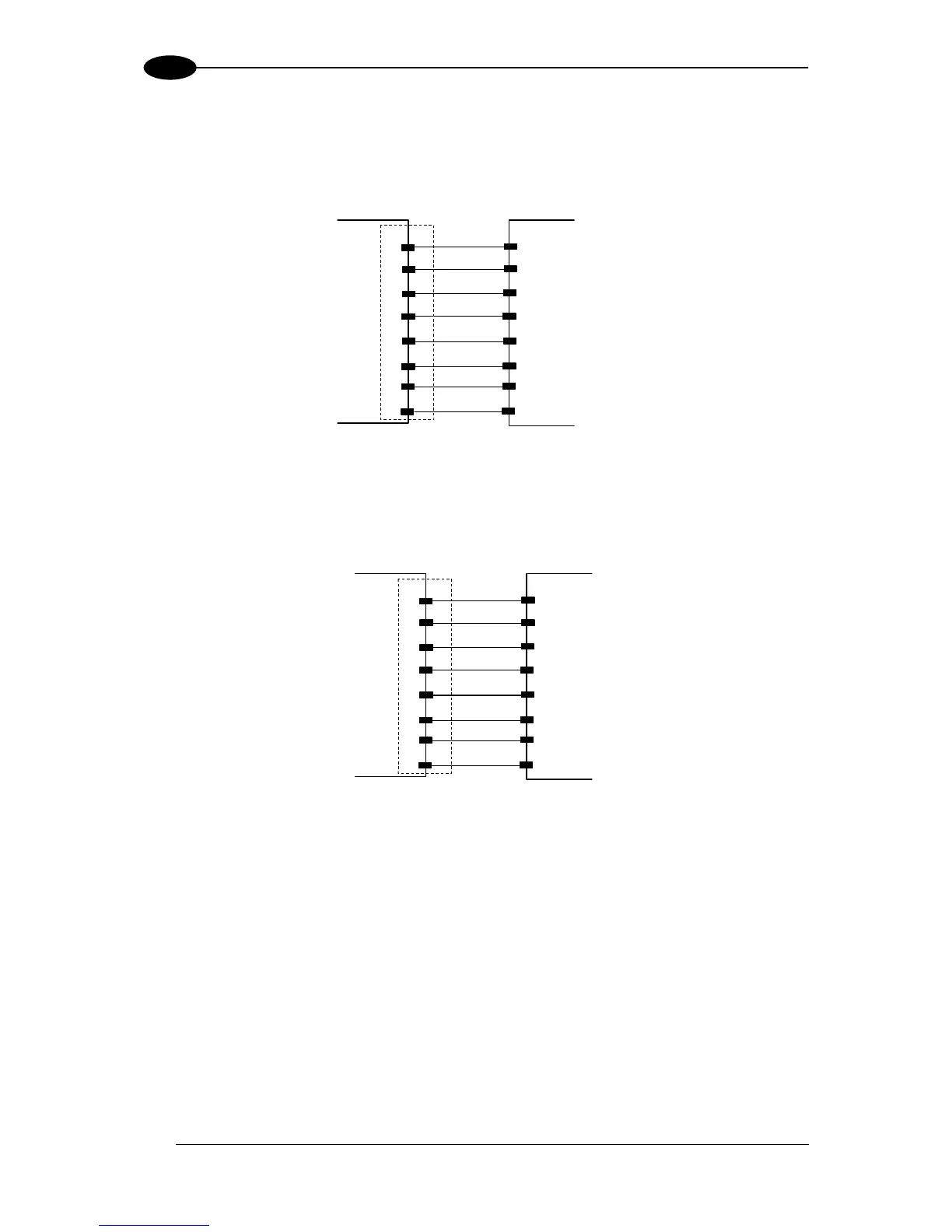

The following is an example of a connection to a LAN through a Hub using a straight through
cable:
DS8100A
5
HUB / SWITCH
3
4
2
1
6
5
3
4
2
1
6
7
8
7
8
RX+
TX-
TX+
RX-
n. c.
n. c.
n. c.
n. c.
n. c. = not connected
Figure 71 – Straight Through Cable
The following is an example of direct connection to a PC using an inverted cable:
DS8100A
5
HOST PC
3
4
2
1
6
5
1
4
6
3
2
7
8
7
8
RX+
TX-
TX+
RX-
n. c.
n. c.
n. c.
n. c.
n. c. = not connected
Figure 72 – Inverted Cable
For further details refer to the “Ethernet Service Guide” document provided as reference
documentation.
