DS8100A REFERENCE MANUAL
64
7
NOTE
To interface DS8100A scanners to other Host types (Fieldbus and non-
Fieldbus), use the CBX800 Gateway with Host Interface Modules.
* P.S. (Presence Sensor) connected to Input 1 (External Trigger/PS) input.
** CBX800 jumper set to accept scanner power.
*** Encoder connected to Input 2 (Encoder) input.

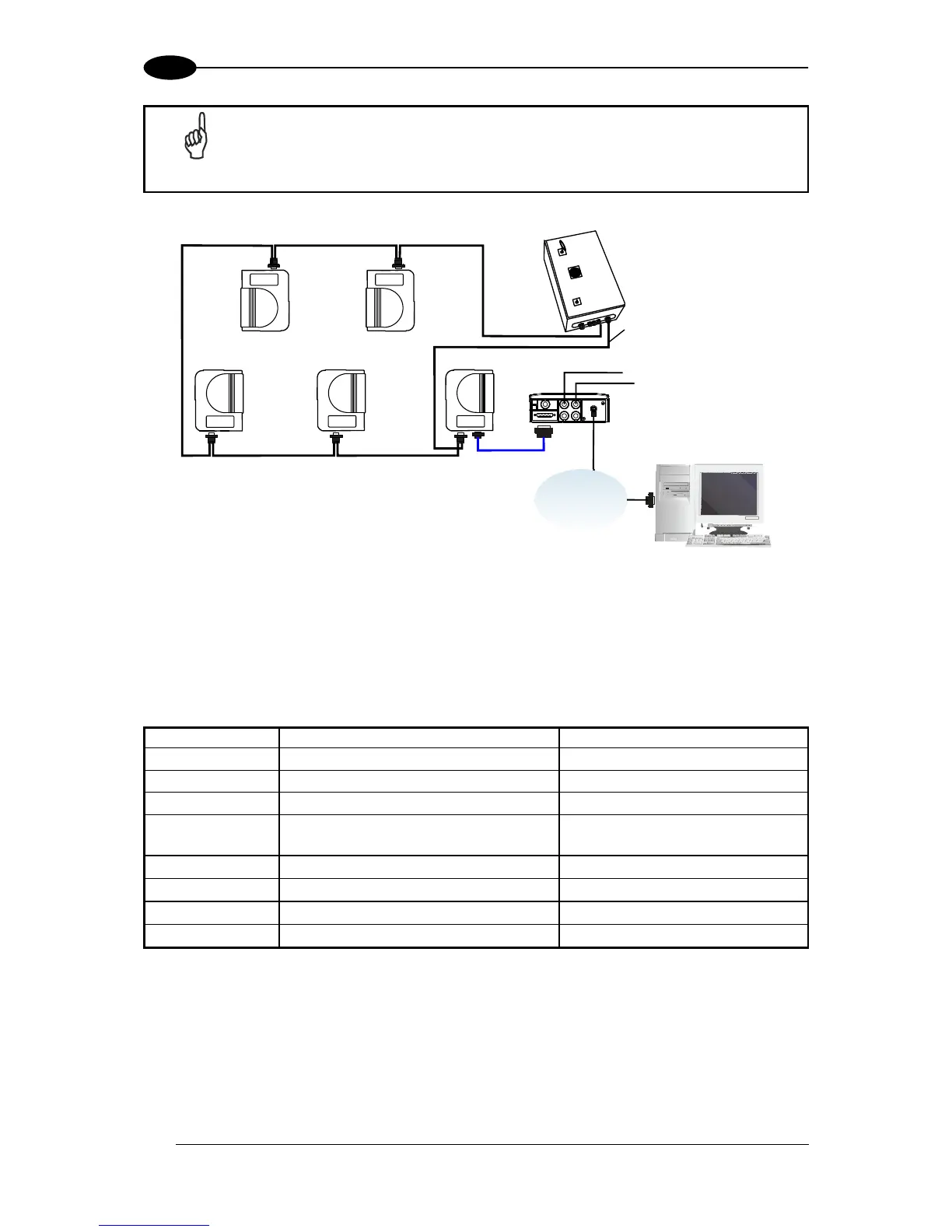

Figure 81 – Fieldbus Small Synchronized Network
The following Host Interface Module accessories are available for the CBX800 Gateway:
Name
Description
Part Number
BM200/210
Ethernet TCP/IP Module STD/IP65
93ACC1851, 93ACC1852
BM300/310
Profibus Module STD/IP65
93ACC1810, 93ACC1811
BM400
DeviceNet Module IP65
93ACC1814
BM500/510/520
Ethernet/IP Module STD/IP65/IP54
93ACC1812, 93ACC1813,
93ACC1840
BM600
CANopen Module STD
93ACC1815
BM700/710
Profinet Module STD/IP65
93ACC1816, 93ACC1886
BM1100
CC-Link Module STD
93ACC1845
BM1200/1210
Modbus TCP STD/IP65
93ACC1848, 93ACC1849
Remote Host
Fieldbus
Network
CBX800**
with Host Interface Module
Master
Slave 1
Slave 2
Slave 3
PWR-240
P.S.*
CAB-81xx
CAB-F0x
CAB-81xx
CAB-81xx
Slave 4
CAB-86xx
CAB-81xx
CAB-83xx
Encoder***
