Auto PackTrack Parameter Descriptions

By means of the software tool DLAPC, it is possible to perform the Auto PackTrack setup

procedure for PackTrack™ and Continuous Operating Mode applications.

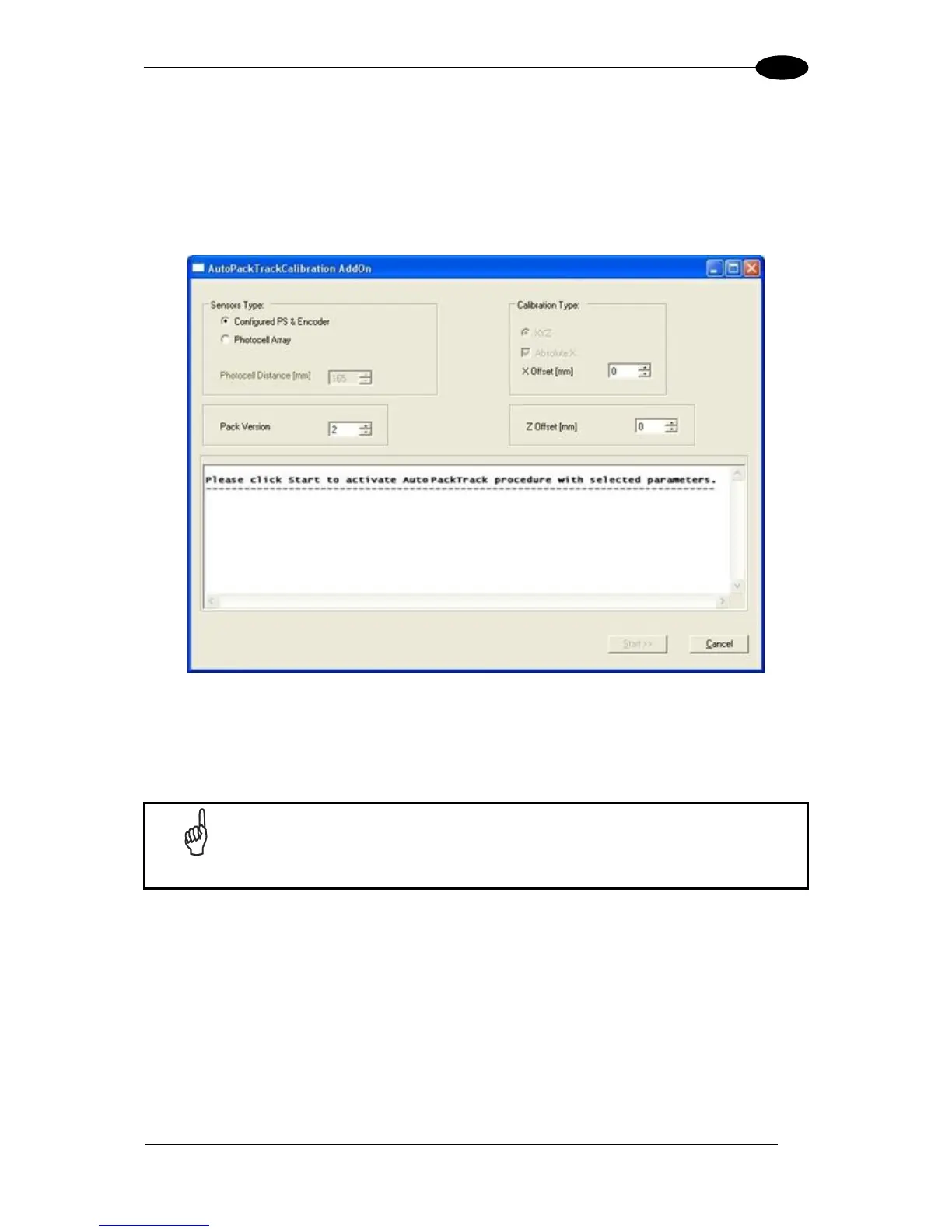

Select the "DLAPC" option from the Tools menu or click on the related icon on the Tool Bar

to open the following dialog box:

Once the DLAPC window has been opened, set the following parameters according to the

application requirements:

Sensor Type: whether calibration will be performed using the system Presence Sensor and

Encoder (most cases), or the PPA-8000 Photocell Array.

NOTE

The Auto PackTrack procedure requires using the PPA-8000 Photocell

Array for all systems where either the Presence Sensor or the Encoder are

absent (including Continuous Operating Mode and Cargoscan applications).

If using the Presence Sensor and Encoder, the presence sensor must be connected to the

CBX100/500 I1 input. The Encoder Step parameter must also be set correctly.

If using the PPA-8000 you must set the Photocell distance (165 mm default). The Photocell

Array must be connected to the CBX100/500 I1 and I2 inputs (see the relative installation

manual), and the Encoder, if present, must be disconnected.

Pack Version: the version of the PCT-8000 being used for calibration. This value can be

read from the barcode labels on the PCT-8000. Each label has the value vnnn where v is the

version number.
