Datalogic Gryphon GBT4500 Series User Manual

Using the Gryphon™ I GBT/GM4500
14 GRYPHON™ I GBT/GM4500
USING THE GRYPHON™ I GBT/GM4500
The Gryphon™ I GBT/GM4500 reader normally works by
capturing and decoding codes. It is equipped with an
internal Motionix™ motion-sensing function which acti-
vates the aiming system on device motion. The intelligent
aiming system indicates the field of view which should be
positioned over the bar code:

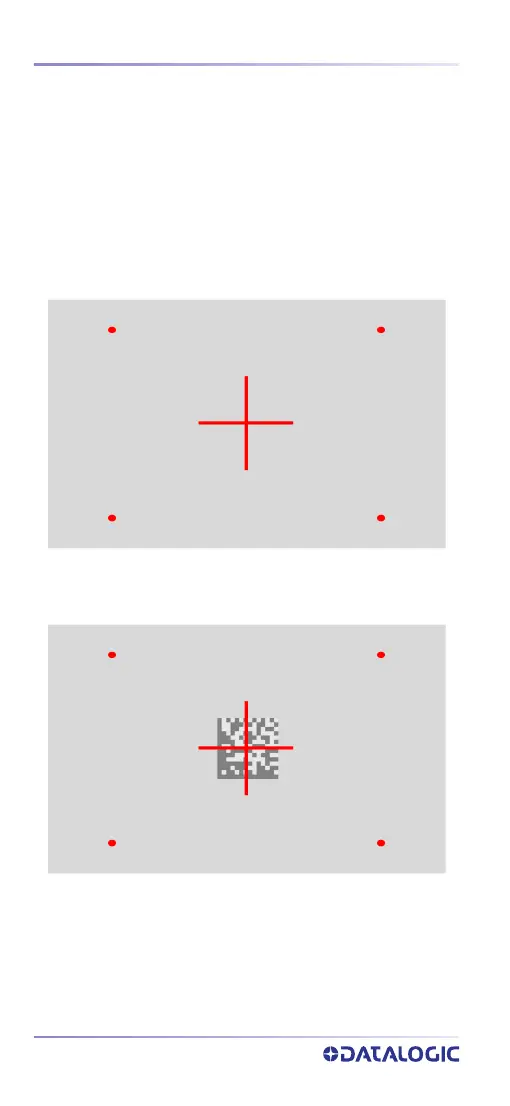

Aiming System
Relative Size and Location of Aiming Pattern
2D Matrix Symbol

Datalogic Gryphon GBT4500 Series Specifications

General

Drop Resistance	1.8 m / 5.9 ft
Sealing	IP52
Operating Temperature	0 to 50 °C / 32 to 122 °F
Light Source	LED
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Ambient Light	0 - 100, 000 lux
Drop Specification	Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
IP Rating	IP52
Connectivity	Bluetooth
Battery Type	Lithium-Ion
Decode Capability	1D / 2D, Postal Codes, Stacked Codes
Radio Range (Open Air)	Up to 100 m / 328 ft
Interfaces Supported	USB, RS-232, Keyboard Wedge
Type	Handheld
Technology	2D imager
Scan Rate	60 frames/sec
Supported Barcodes	1D, 2D, Postal
Humidity	5 - 95% (Non-condensing)
Power Supply	5 VDC
Battery	Rechargeable Battery Pack
Weight	245.0 g / 8.6 oz
