Datalogic Gryphon GBT4500 Series User Manual

Linking the Reader
16 GRYPHON™ I GBT/GM4500
LINKING THE READER
Link Datalogic Devices to Base
Before configuring the interface, it is necessary to link the
handheld with the base.
To link the handheld and the base, simply put it into the
base. If the reader was previously linked to another base,
you must first scan the Unlink bar code before re-linking it
to the new base.

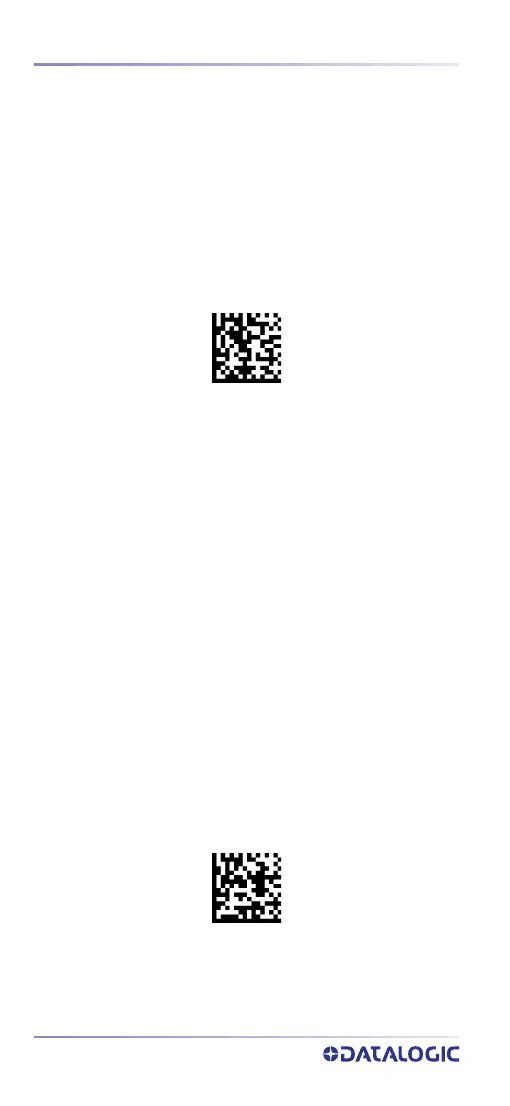

Unlink
Link Scanner as Serial Device to a Bluetooth Host
Use this procedure to let the scanner communicate with a
Bluetooth host using the Bluetooth Serial Port Profile
(SPP).
1. If using a Bluetooth adapter on the host device, install
any driver provided with the adapter.
2. Scan the Link to Host in SPP mode label below to
make the scanner visible to the host device.
3. Use the Bluetooth manager of the host device to “Dis-
cover new devices” and select "GBT4500...".
If you receive an error message, it may be necessary
to change the security settings on either the host
device or the scanner.
4. Use an RS-232 terminal program to see incoming data
on the port designated by the Bluetooth manager of
the host device.
Link to Host in SPP Mode

Datalogic Gryphon GBT4500 Series Specifications

General

Drop Resistance	1.8 m / 5.9 ft
Sealing	IP52
Operating Temperature	0 to 50 °C / 32 to 122 °F
Light Source	LED
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Ambient Light	0 - 100, 000 lux
Drop Specification	Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
IP Rating	IP52
Connectivity	Bluetooth
Battery Type	Lithium-Ion
Decode Capability	1D / 2D, Postal Codes, Stacked Codes
Radio Range (Open Air)	Up to 100 m / 328 ft
Interfaces Supported	USB, RS-232, Keyboard Wedge
Type	Handheld
Technology	2D imager
Scan Rate	60 frames/sec
Supported Barcodes	1D, 2D, Postal
Humidity	5 - 95% (Non-condensing)
Power Supply	5 VDC
Battery	Rechargeable Battery Pack
Weight	245.0 g / 8.6 oz
