Connecting the Base Station
8
GRYPHON™ I GBT/GM4500
Securing the DC Power Cord (Optional)
The DC power cord for the adapter can be secured to the
bottom of the base in order to maximize the mechanical
retention of the cable itself. The routing of the power cord
can be changed to accommodate base station positioning:
horizontal, stand or wall mount. The cables can be looped
around to the front of the Base Station, or fed directly out
the back of the Base Station, as shown in Figure 6.

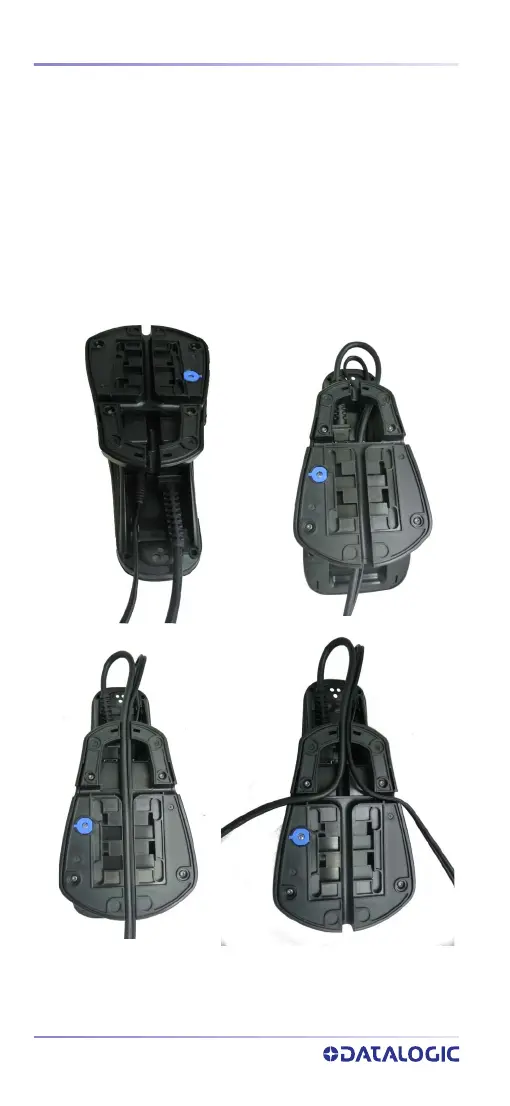

Figure 6 - Options for routing the DC cord
