Connecting the Base Station
QUICK REFERENCE GUIDE
9
Host Connection —
Verify before connection that the
reader’s cable type is compatible with your host equipment.
Most connections plug directly into the host device as
shown in Figure 7. Keyboard Wedge interface cables have
a ‘Y’ connection where its female end mates with the male
end of the cable from the keyboard and the remaining end
at the keyboard port on the terminal/PC.

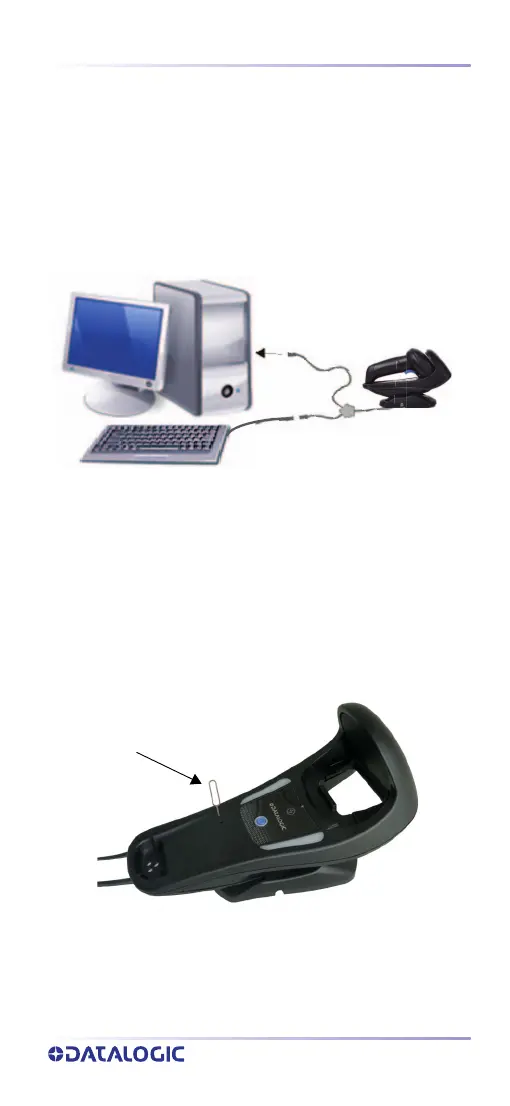

Figure 7 - Connecting to the Host
Power Connection —
Plug the AC Adapter into an
approved AC wall socket with the cable facing downwards
(as shown in Figure 5) to prevent undue strain on the socket.
Disconnecting the Cable — To detach the cable, insert a
paper clip or similar object into the hole on the base, as
shown.
Figure 8 - Disconnecting the Cable
