Datalogic PowerScan Series User Manual

PRODUCT REFERENCE GUIDE 7
CHAPTER 2
SETUP
UNPACKING
Check carefully to ensure the reader and any cables or accessories ordered are present
and undamaged. If any damage occurred during shipment, contact "
Technical Support"
on page xvi
.
SETTING UP THE POWERSCAN™ PD9600 READER
Follow the steps below to connect and get your reader up and communicating with its
host.
1. Connect the Cable to the reader and the Host (see
page 7).
2. Configure the Interface (see
page 36).
3. Configure the Reader starting
page 41 (optional, as needed).
Connect the PowerScan™ by plugging directly into the host device as shown. The power
can also be supplied through an external power supply via the Interface Cable supplied
with a power jack.
CONNECTING THE HOST INTERFACE
Connecting the Cable
The reader kit you ordered to match your interface should provide a compatible cable
for your installation. If this is not so, contact "
Technical Support" on page xvi.
Follow the steps below to connect the cable to the reader.

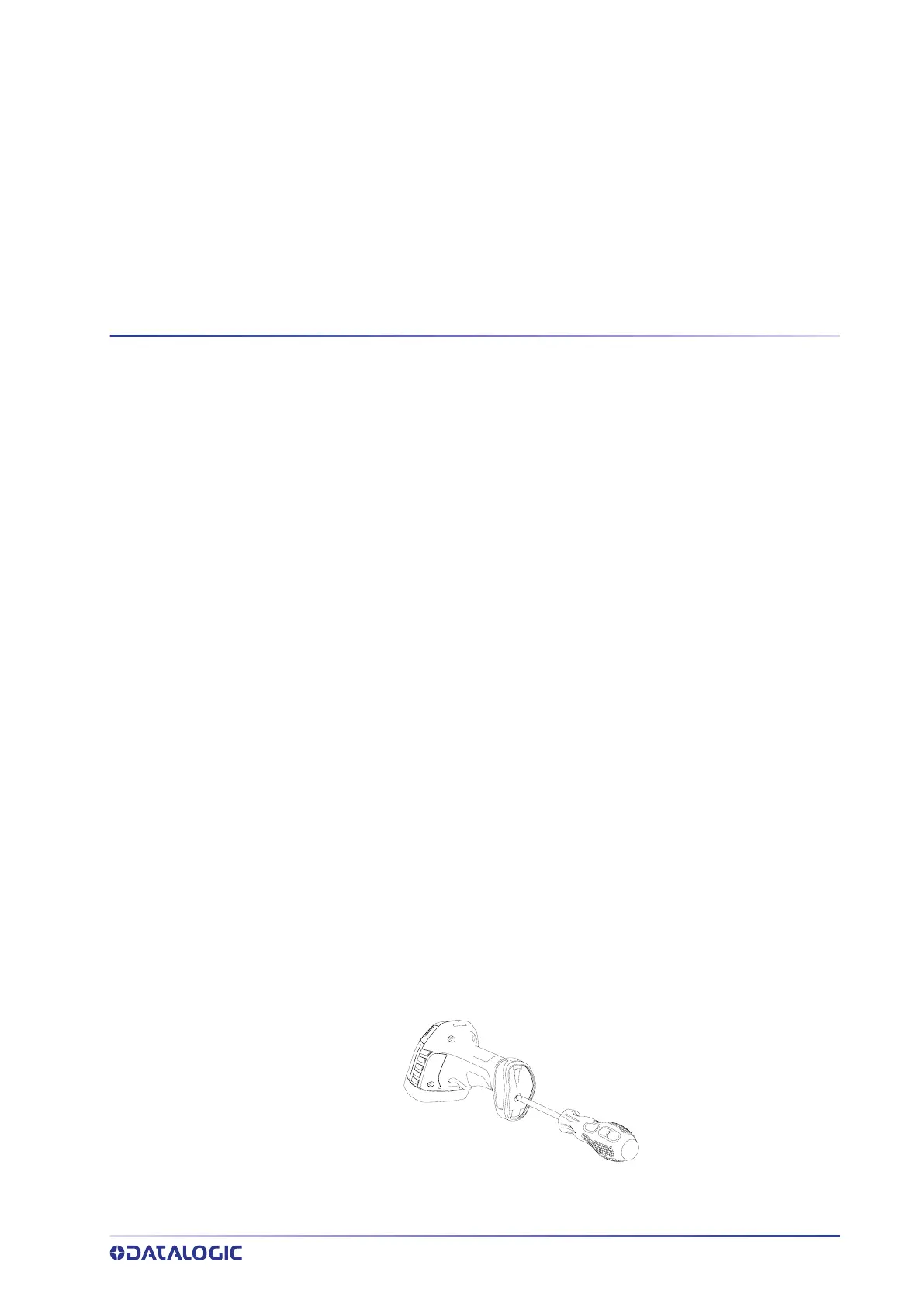

1. Use a screwdriver to open the handle.

Datalogic PowerScan Series Specifications

General

Resolution	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Light Source	Visible Laser Diode
Connectivity	USB, RS-232, Keyboard Wedge
Durability	Industrial Grade
Decode Capability	1D and 2D barcodes
Interface	RS-232, USB, Keyboard Wedge
Humidity	5% to 95% non-condensing
IP Rating	IP65
Operating Temperature	0°C to 50°C
