Datalogic PowerScan Series User Manual

SETUP
28 POWERSCAN™ PD/PM/PBT9600

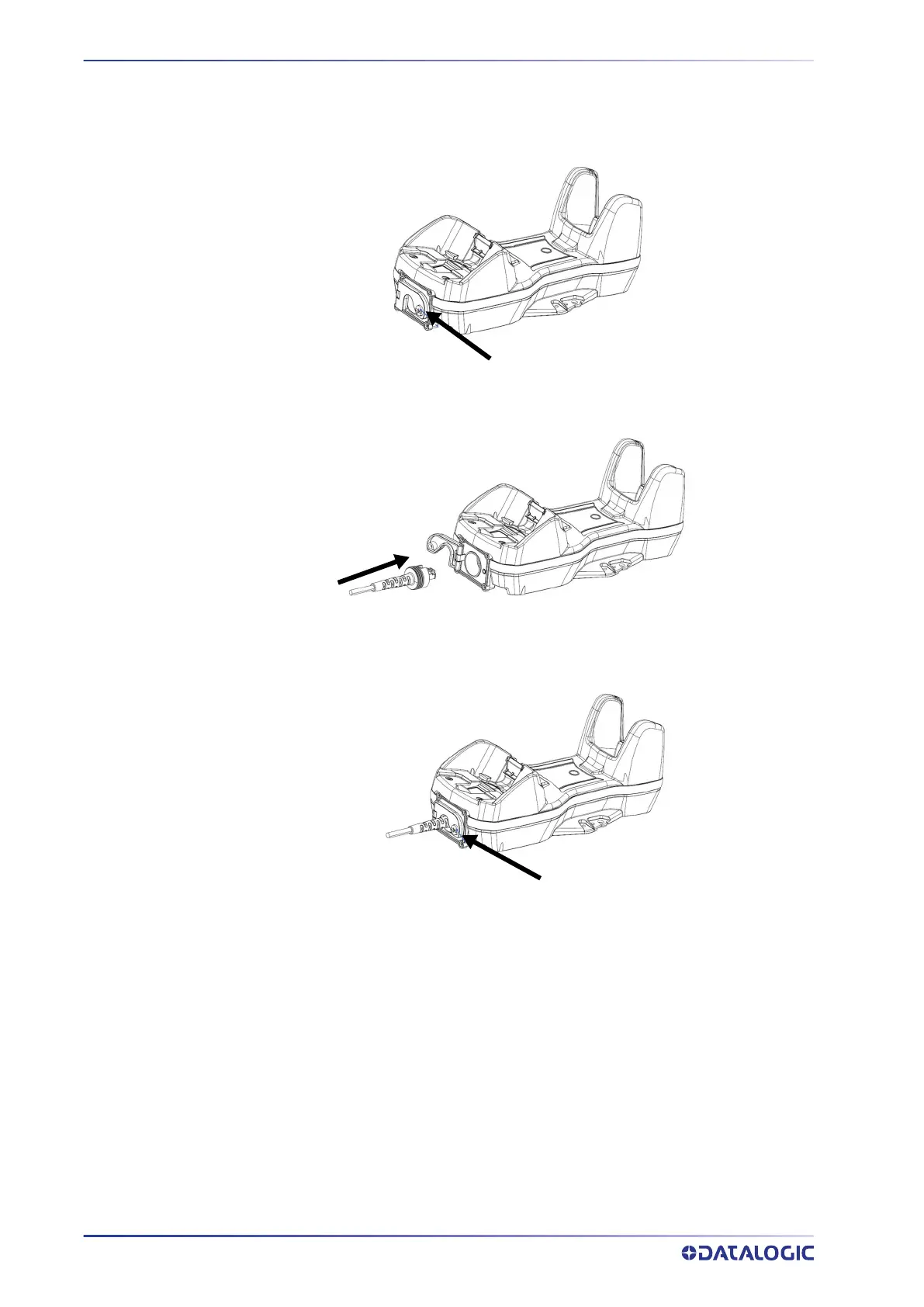

Connecting BC9631 Multi-interface Cable
1. Unscrew the no-tool screw to open the front door.
2. Insert the multi-interface cable.
3. Close the door and screw it back.
To disconnect the multi-interface cable, open the front door, pull out the cable and
screw the front door back.
Unscrew
Insert
Screw

Datalogic PowerScan Series Specifications

General

Resolution	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Light Source	Visible Laser Diode
Connectivity	USB, RS-232, Keyboard Wedge
Durability	Industrial Grade
Decode Capability	1D and 2D barcodes
Interface	RS-232, USB, Keyboard Wedge
Humidity	5% to 95% non-condensing
IP Rating	IP65
Operating Temperature	0°C to 50°C
