MOUNTING INSTRUCTIONS

PRODUCT REFERENCE GUIDE

Wall Mounting

The base station contains a reversible positioning tab for horizontal or vertical mounting.

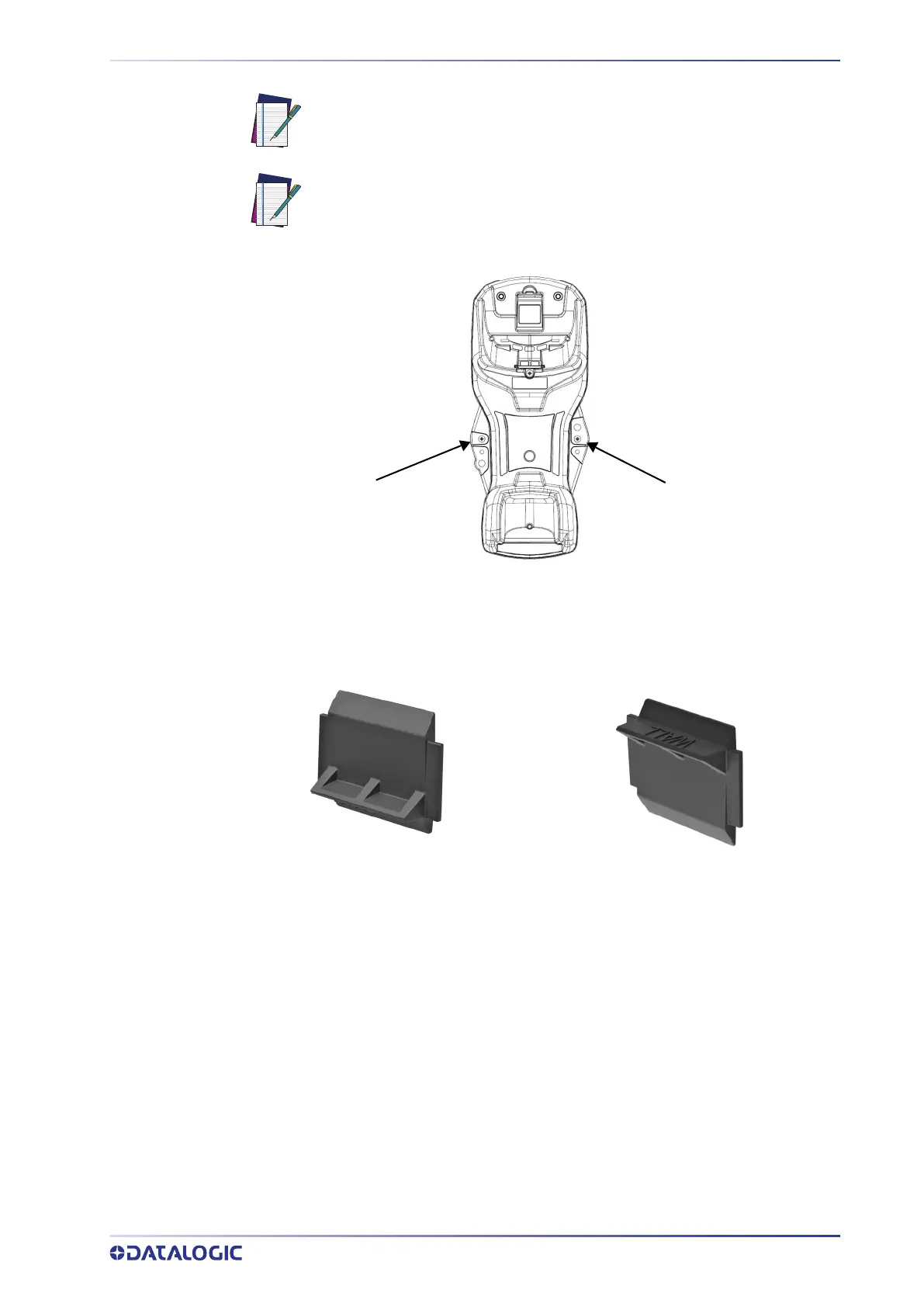

Figure 2 - Positioning Tab

When shipped, the base station has the positioning tab installed in the Desktop position

(horizontal). For vertical installation, the positioning tab must be rotated.

Changing the Orientation of the Positioning Tab:

1. Remove the screw holding the tab in place. Keep the screw for reuse.

NOTE: For vertical installation, do not exceed two meters in height.

NOTE: When mounting on drywall, the base station should be screwed to a

wall stud or supporting beam for additional support.

Screw Position

Desktop Positioning Tab (Horizontal) Wall Positioning Tab (Vertical)
