To Next Page

To Previous Page

Enter/Exit Programming Mode

122 QuickScan™ I QD24XX

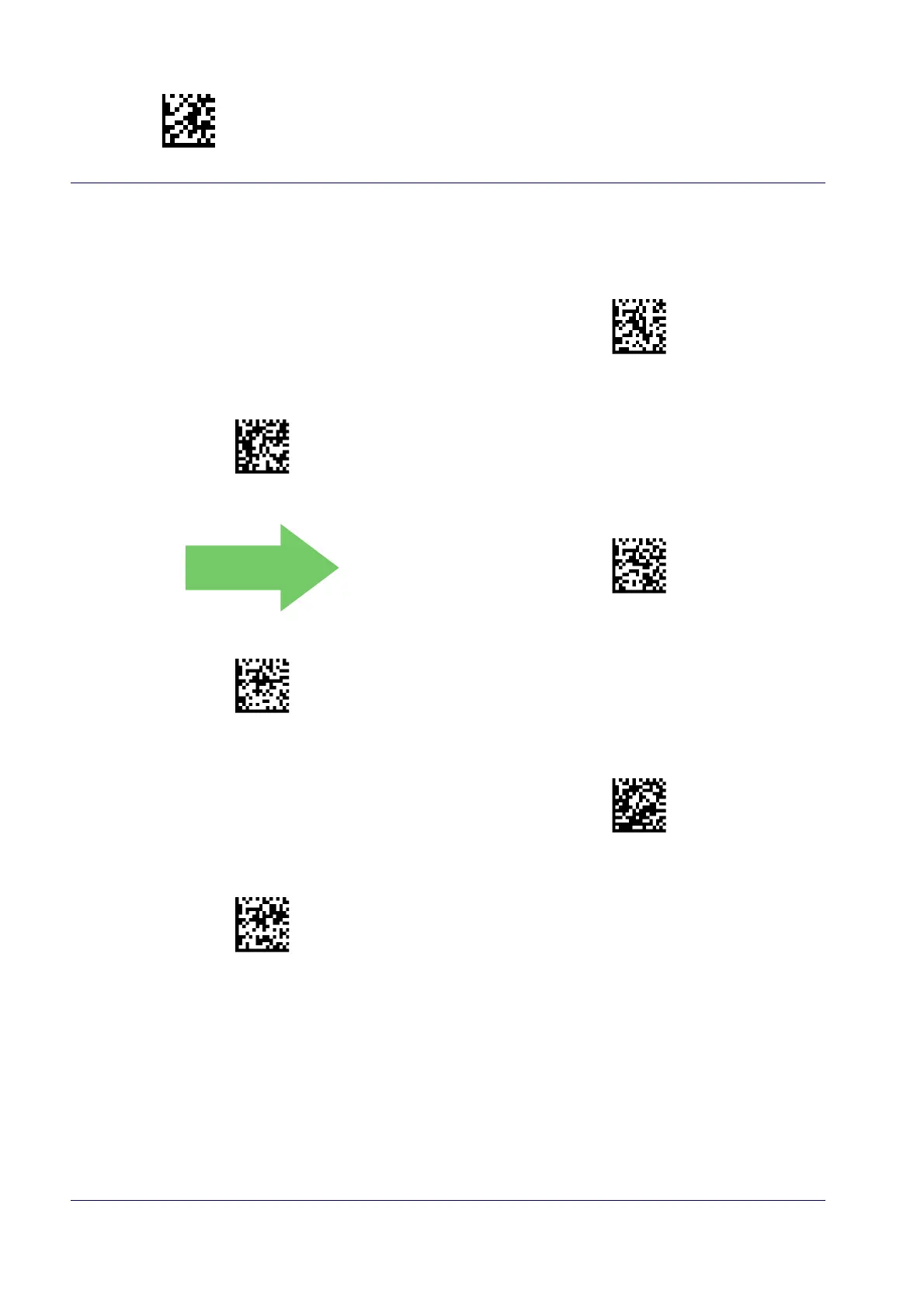

ISBT 128 Dynamic Concatenation Timeout

Specifies the timeout used by the ISBT 128 Dynamic Concatenation Mode.

$CI8DT05(CR)

ISBT 128 Dynamic Concatenation Timeout = 50 msec

$CI8DT0A(CR)

ISBT 128 Dynamic Concatenation Timeout = 100 msec

DEFAULT

$CI8DT14(CR)

ISBT 128 Dynamic Concatenation Timeout = 200 msec

$CI8DT32(CR)

ISBT 128 Dynamic Concatenation Timeout = 500 msec

$CI8DT4B(CR)

ISBT 128 Dynamic Concatenation Timeout = 750 msec

$CI8DT64(CR)

ISBT 128 Dynamic Concatenation Timeout = 1 second

Default Chapter3
- Table of Contents3
Introduction11
- About this Manual11
  - Overview11
  - Manual Conventions12
- Technical Support12
- About the Reader13
- Programming the Reader14
  - Configuration Methods14
Setup15
- Unpacking15
- Setting up the Reader15
- Installing the Interface Cable16
- Interface Selection18
  - Setting the Interface19
- Customizing Configuration Settings22
Configuration Using Bar Codes25
- Configuration Parameters25
  - Global Interface Features27
    - Host Commands - Obey/Ignore27
    - USB Suspend Mode27
- Rs-232 Interface29
- RS-232/USB-Com Interfaces34
- Keyboard Settings43
- USB-OEM Interface53
- Data Format57
- Global Prefix/Suffix58
- Global AIM ID59
  - Set AIM ID Individually for GS1-12861
- Label ID62
  - Label ID: Pre-Loaded Sets62
  - Individually Set Label ID63
- Reading Parameters71
  - Double Read Timeout72
  - Led and Beeper Indicators74
- 1D Symbologies91
- 1D Code Selection91
  - Disable All Symbologies92
  - Code Ean/Upc93
Upc-E96
- UPC-E Enable/Disable96
- UPC-E Check Character Transmission97
- UPC-E 2D Component97
- Expand UPC-E to EAN-1398
- Expand UPC-E to UPC-A98
- UPC-E Number System Character Transmission99
Gtin Formatting99
Ean 13 (Jan 13)100
- EAN 13 Enable/Disable100
- EAN 13 Check Character Transmission100
- EAN-13 Flag 1 Character101
- EAN-13 ISBN Conversion101
- EAN-13 2D Component102
Issn102
- ISSN Enable/Disable102
Ean 8 (Jan 8)103
- EAN 8 Enable/Disable103
- EAN 8 Check Character Transmission103
- Expand EAN 8 to EAN 13104
- EAN 8 2D Component104
Upc/Ean Global Settings105
- UPC/EAN Price Weight Check105
- UPC/EAN Quiet Zones106
Add-Ons107
- Optional Add-Ons107
- Optional Add-On Timer108
- Optional GS1-128 Add-On Timer111
Code 39114
- Code 39 Enable/Disable114
- Code 39 Check Character Calculation114
- Code 39 Check Character Transmission115
- Code 39 Start/Stop Character Transmission116
- Code 39 Full ASCII116
- Code 39 Quiet Zones117
- Code 39 Length Control117
- Code 39 Set Length 1118
- Code 39 Set Length 2119
Trioptic Code120
- Trioptic Code Enable/Disable120
Code 32 (Ital Pharmaceutical Code)120
- Code 32 Enable/Disable120
- Code 32 Feature Setting Exceptions121
- Code 32 Check Char Transmission121
- Code 32 Start/Stop Character Transmission121
Code 39 Cip (French Pharmaceutical)122
- Code 39 CIP Enable/Disable122
Code 39 Danish Ppt122
- Code 39 Danish PPT Enable/Disable122
Code 39 Laposte123
- Code 39 Laposte Enable/Disable123
Code 39 Pzn123
- Code 39 PZN Enable/Disable123
Code 128124
- Code 128 Enable/Disable124
- Expand Code 128 to Code 39124
- Code 128 Check Character Transmission125
- Code 128 Function Character Transmission125
- Code 128 Quiet Zones126
- Code 128 Length Control126
- Code 128 Set Length 1127
- Code 128 Set Length 2128
Gs1-128129
- GS1-128 Enable129
- GS1-128 2D Component129
Code Isbt 128130
- ISBT 128 Concatenation130
- ISBT 128 Force Concatenation130
- ISBT 128 Concatenation Mode131
- ISBT 128 Dynamic Concatenation Timeout132
- ISBT 128 Advanced Concatenation Options133
Interleaved 2 of 5 (I 2 of 5)133
- I 2 of 5 Enable/Disable133
- I 2 of 5 Check Character Calculation134
- I 2 of 5 Check Character Transmission135
- I 2 of 5 Length Control135
- I 2 of 5 Set Length 1136
- I 2 of 5 Set Length 2137
Interleaved 2 of 5 Cip Hr138
- Interleaved 2 of 5 CIP HR Enable/Disable138
Follett 2 of 5138
- Follett 2 of 5 Enable/Disable138
Standard 2 of 5139
- Standard 2 of 5 Enable/Disable139
- Standard 2 of 5 Check Character Calculation139
- Standard 2 of 5 Check Character Transmission140
- Standard 2 of 5 Length Control140
- Standard 2 of 5 Set Length 1141
- Standard 2 of 5 Set Length 2142
Industrial 2 of 5143
- Industrial 2 of 5 Enable/Disable143
- Industrial 2 of 5 Check Character Calculation143
- Industrial 2 of 5 Check Character Transmission144
- Industrial 2 of 5 Length Control144
- Industrial 2 of 5 Set Length 1145
- Industrial 2 of 5 Set Length 2146
Code Iata147
- IATA Enable/Disable147
- IATA Check Character Transmission147
Codabar148
- Codabar Enable/Disable148
- Codabar Check Character Calculation148
- Codabar Check Character Transmission149
- Codabar Start/Stop Character Transmission149
- Codabar Start/Stop Character Set150
- Codabar Start/Stop Character Match150
- Codabar Quiet Zones151
- Codabar Length Control151
- Codabar Set Length 1152
- Codabar Set Length 2153
Abc Codabar154
- ABC Codabar Enable/Disable154
- ABC Codabar Concatenation Mode154
- ABC Codabar Dynamic Concatenation Timeout155
- ABC Codabar Force Concatenation156
Code 11157
- Code 11 Enable/Disable157
- Code 11 Check Character Calculation157
- Code 11 Check Character Transmission158
- Code 11 Length Control158
- Code 11 Set Length 1159
- Code 11 Set Length 2160
Gs1 Databar™ Omnidirectional161
- GS1 Databar™ Omnidirectional Enable/Disable161
- 2D Symbologies183
- 2D Global Features183
- Aztec Code186
  - Aztec Code Enable / Disable186
  - Aztec Code Length Control186
    - Aztec Code Set Length 1187
    - Aztec Code Set Length 2188
- China Sensible Code189
  - China Sensible Code Enable / Disable189
  - China Sensible Code Length Control189
    - China Sensible Code Set Length 1190
    - China Sensible Code Set Length 2191
- Data Matrix192
- Maxicode195
- Pdf417198
  - PDF417 Enable / Disable198
  - PDF417 Length Control198
    - PDF417 Set Length 1199
    - PDF417 Set Length 2200
- Micro PDF417201
- QR Code204
  - QR Code Enable / Disable204
  - QR Code Length Control204
    - QR Code Set Length 1205
    - QR Code Set Length 2206
- Micro QR Code207
  - Micro QR Code Enable/Disable207
  - Micro QR Code Length Control207
    - Micro QR Code Set Length 1208
    - Micro QR Code Set Length 2209
- UCC Composite210
  - UCC Composite Enable / Disable210
  - UCC Optional Composite Timer211
- Postal Code Selection212
  - Postnet BB Control213
References215
- RS-232 Parameters216
  - RS-232/USB COM Parameters217
- Keyboard Interface224
- Symbologies227
  - Set Length227
- Data Editing228
- Reading Parameters237
  - Good Read LED Duration237
- Scanning Features238
Technical Specifications247
- Imager Labeling251
- Standard Cable Pinouts252
- LED and Beeper Indications253
- Error Codes254
Standard Defaults255
Sample Bar Codes265
Keypad269
Scancode Tables271
- Control Character Emulation271
  - Single Press and Release Keys271
- Interface Type PC at PS/2, USB-Keyboard or USB-Keyboard for APPLE272
- Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode274
- Digital Interface276
- Ibm31Xx 102-Key277
- Ibm Xt278
- Microsoft Windows Codepage 1252279
