Datalogic QuickScan I QD2400 User Manual

Enter/Exit Programming Mode

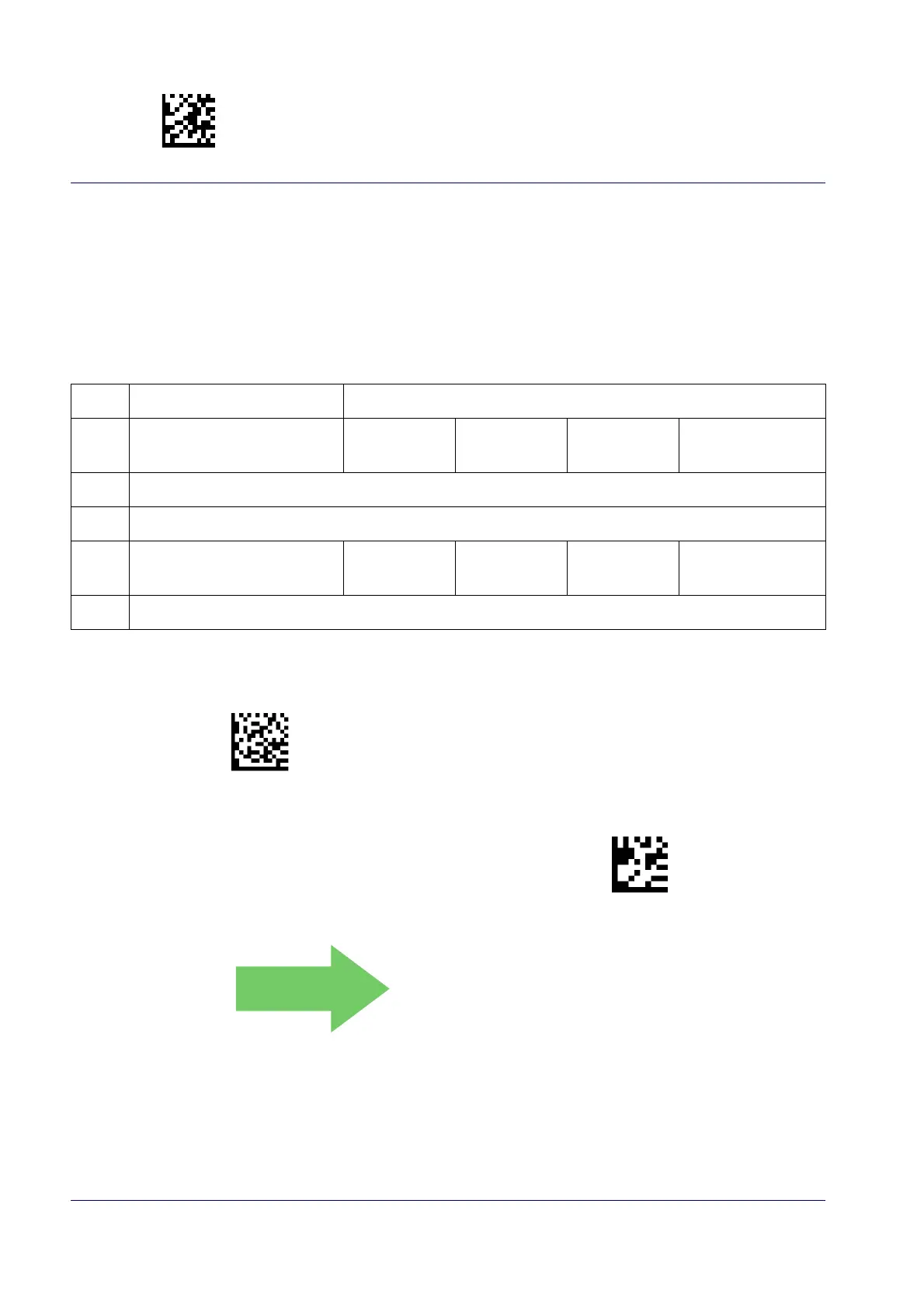

142 QuickScan™ I QD24XX
Codabar Set Length 1
This feature specifies one of the bar code lengths for Codabar Length ControlCodabar Length Control. Length 1 is
the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length
includes the bar code’s start, stop, check and data characters. The length must includ
e at least one data character.
The length can be set from 3 to 50 characters.
Ta bl e 13 provides some examples for setting Length 1. See page 217 for detailed instructions on setting this feature.
Table 13. Codabar Length 1 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (and pad
with leading zeroes)
03 Characters 09 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODABAR LENGTH 1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘3’ ‘0’ and ‘9’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
$CCBL1
Select Codabar Length 1 Setting
Make a mistake? Scan the CANCEL bar code to abort and
not save the entry string. You can then start again at the
beginning.
~
CANCEL
DEFAULT
03 = Length 1 is 3 Characters
