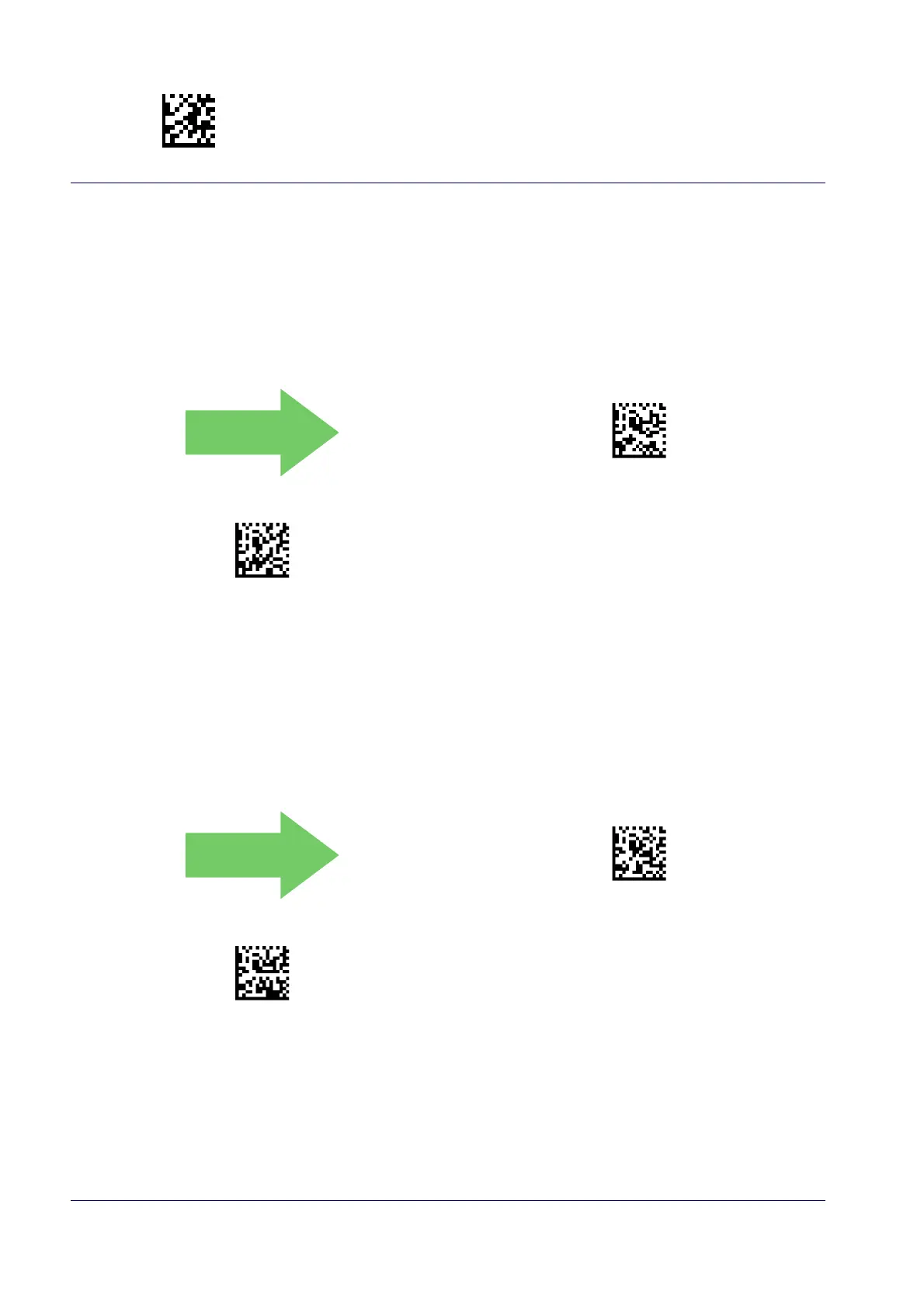

144 QuickScan™ I QD24XX

ABC CODABAR

The following options apply to the ABC Codabar symbology.

ABC Codabar Enable/Disable

Enables/Disables ability of reader to decode ABC Codabar labels.

DEFAULT

$CCBAB00(CR)

ABC Codabar = Disable

$CCBAB01(CR)

ABC Codabar = Enable

ABC Codabar Concatenation Mode

Specifies the concatenation mode between Static and Dynamic.

DEFAULT

$CCBCM00(CR)

ABC Codabar Concatenation Mode = Static

$CCBCM01(CR)

ABC Codabar Concatenation Mode = Dynamic
