Enter/Exit Programming Mode
132 QuickScan™ I QD24XX

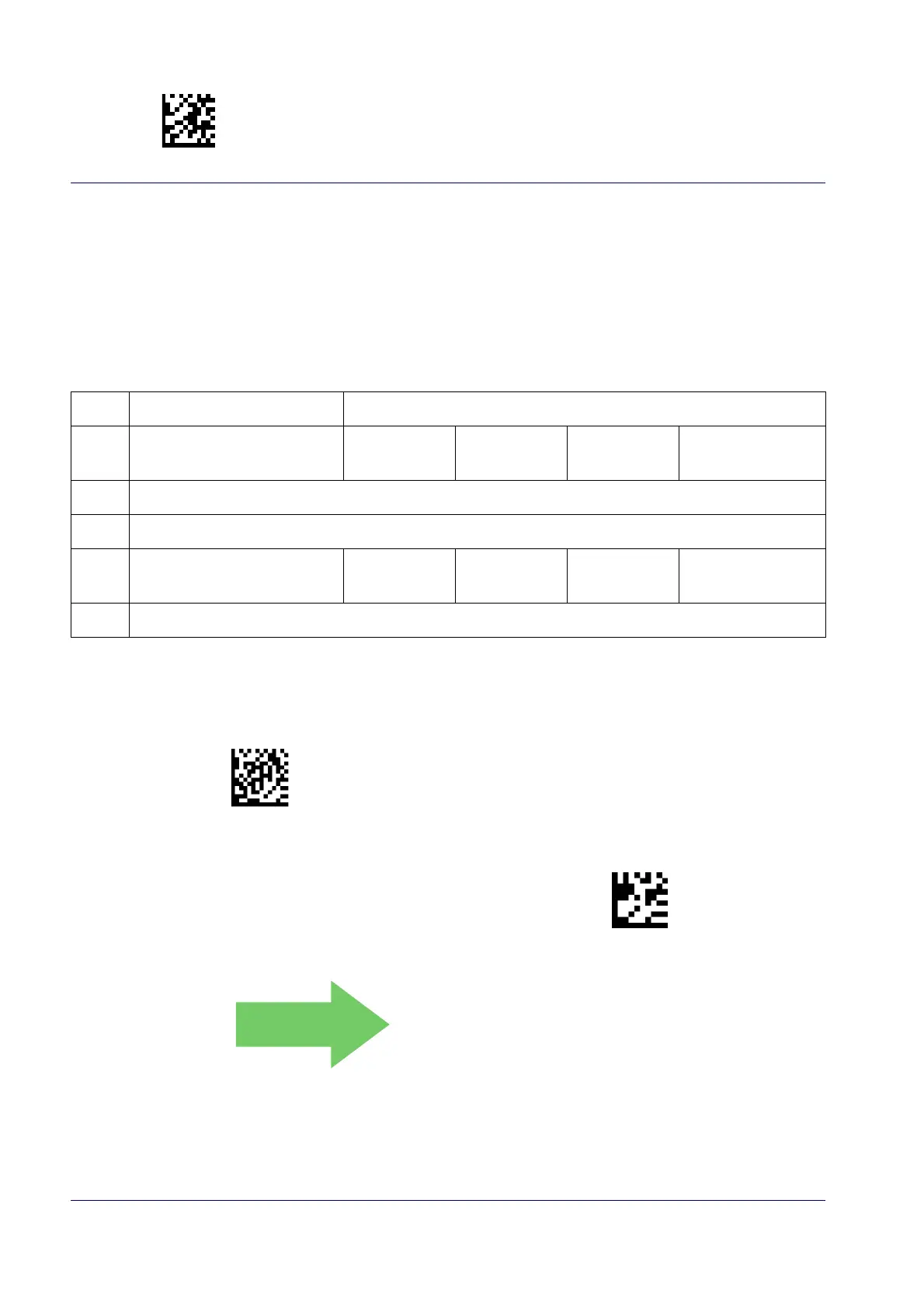

Standard 2 of 5 Set Length 2
This feature specifies one of the bar code lengths for Standard 2 of 5 Length Control. Length 2 is the maximum
label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Length includes the
bar code’s check and data characters.
The length can be set from 1 to 50 characters. A setting of 0 specifies to ignore this length (only one
fixed length).
Ta bl e 10 provides examples for setting Length 2. See page 217 for detailed instructions on setting this feature.
Table 10. Standard 2 of 5 Length 2 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (pad with
leading z
e
roes)
00 (Ignore This
Length)
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT STANDARD 2 OF 5 LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
$CS2L2
Select Standard 2 of 5 Length 2 Setting
Make a mistake? Scan the CANCEL bar code to abort and
not save the entry string. You can then start again at the
beginning.
~
CANCEL
DEFAULT
50 = Length 2 is 50 Characters
