To Next Page

To Previous Page

Enter/Exit Programming Mode

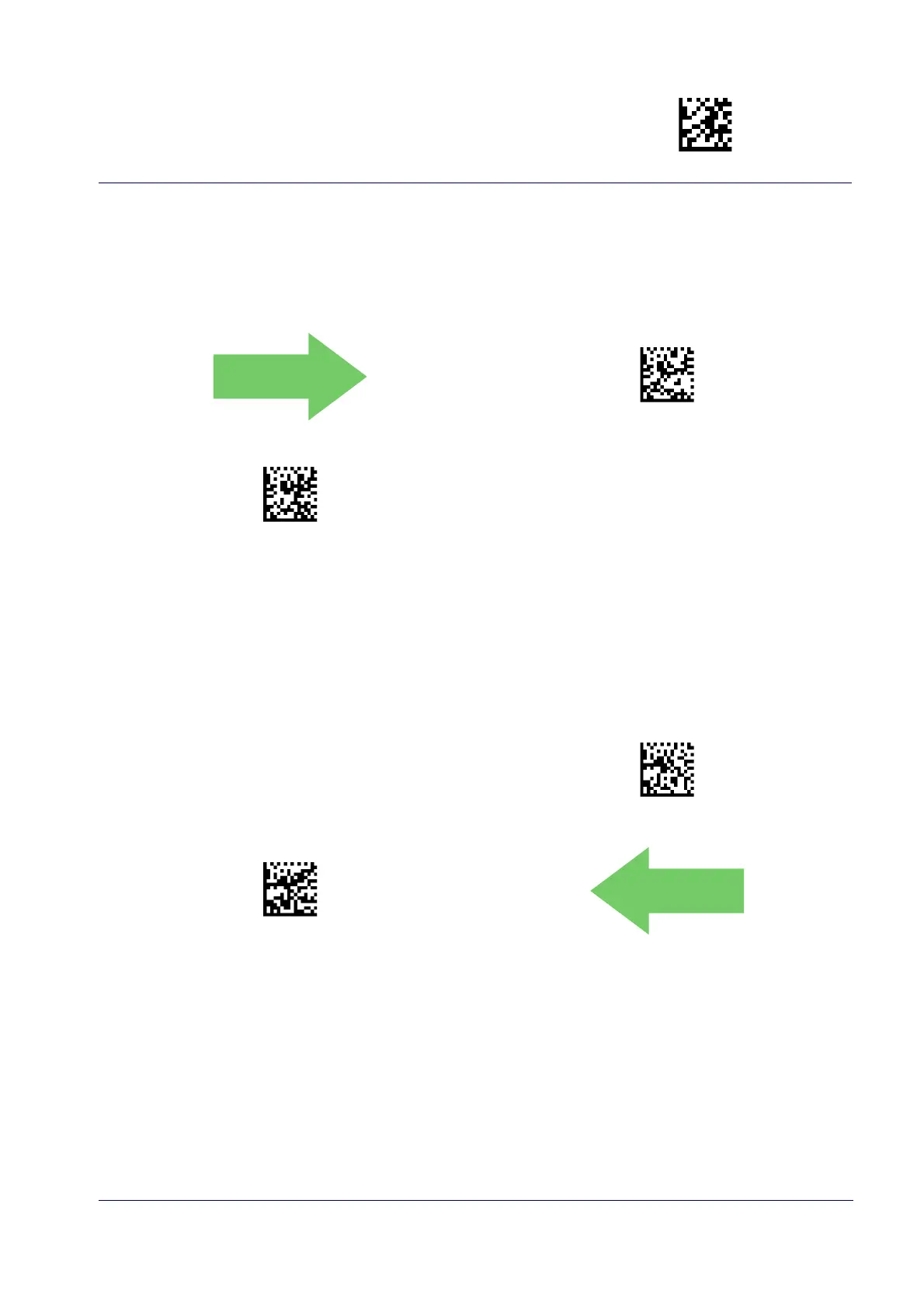

Product Reference Guide 85

Expand UPC-A to EAN-13

Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match

those required for EAN-13.

DEFAULT

$CAB3B00(CR)

UPC-A to EAN-13 = Don’t Expand

$CAB3B01(CR)

UPC-A to EAN-13 = Expand

UPC-A Number System Character Transmission

This feature enables/disables transmission of the UPC-A number system character.

$CABNS00(CR)

UPC-A Number System Character = Do not transmit

$CABNS01(CR)

UPC-A Number System Character = Transmit

DEFAULT
