To Next Page

To Previous Page

Enter/Exit Programming Mode

124 QuickScan™ I QD24XX

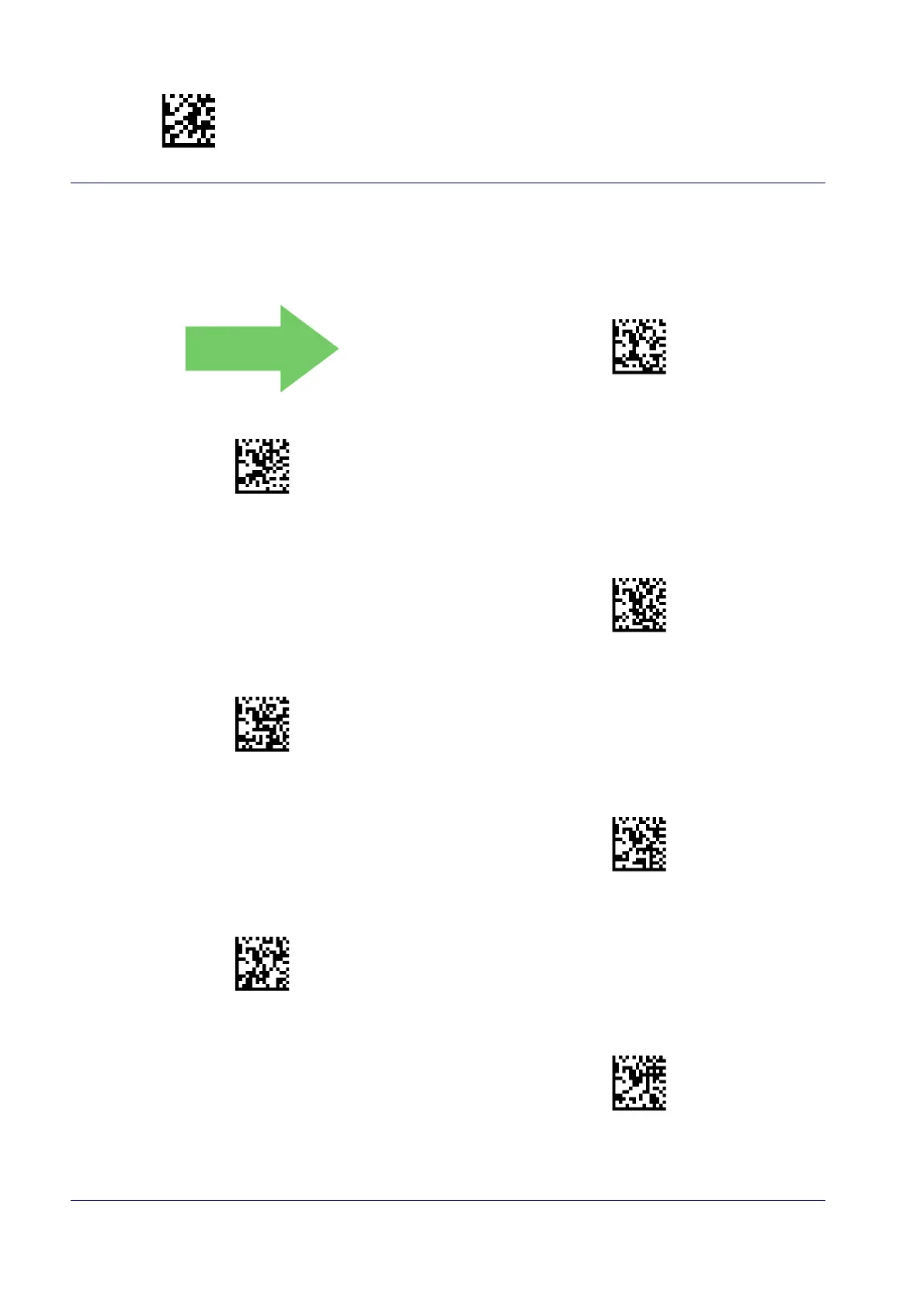

I 2 of 5 Check Character Calculation

This option enables/disables calculation and verification of an optional I 2 of 5 check character. Combinations of

these settings are possible via the Aladdin configuration utility, or contact Technical Support.

DEFAULT

$CI2CC00(CR)

I 2 of 5 Check Character Calculation = Disable

$CI2CC01(CR)

I 2 of 5 Check Character Calculation = Check Standard

(Modulo 10)

$CI2CC02(CR)

I 2 of 5 Check Character Calculation = Check German Parcel

$CI2CC04(CR)

I 2 of 5 Check Character Calculation = Check DHL

$CI2CC08(CR)

I 2 of 5 Check Character Calculation = Check Daimler Chrysler

$CI2CC10(CR)

I 2 of 5 Check Character Calculation = Check Bosch

$CI2CC20(CR)

I 2 of 5 Check Character Calculation = Italian Post

Default Chapter3
