To Next Page

To Previous Page

Enter/Exit Programming Mode

Product Reference Guide 139

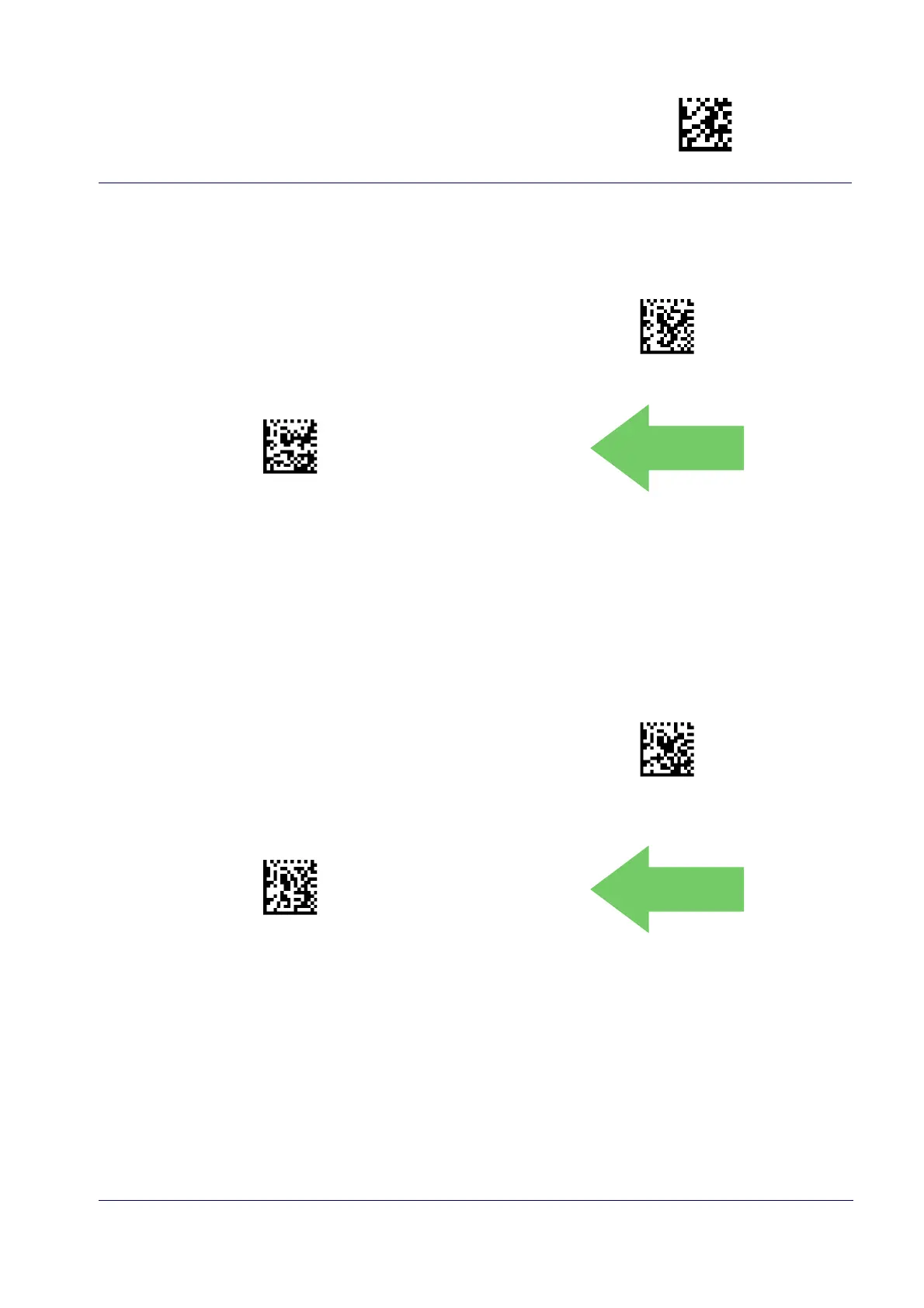

Codabar Check Character Transmission

Enable this option to transmit the check character along with Codabar bar code data.

$CCBCT00(CR)

Codabar Check Character Transmission = Don’t Send

$CCBCT01(CR)

Codabar Check Character Transmission = Send

DEFAULT

Codabar Start/Stop Character Transmission

Enable this option to enable/disable transmission of Codabar start and stop characters

$CCBSS00(CR)

Codabar Start/Stop Character Transmission = Don’t

Transmit

$CCBSS01(CR)

Codabar Start/Stop Character Transmission = Transmit

DEFAULT
